Hersteller: LUKAS / JAWES OF LIVE
Neugerät mit Garantie zum schneiden von Kabeln, Autoteilen,
einsetzbar im Recycling
Schneidgerät LSI 200
Maulweite: 125 mm
Gewicht: 13,8 kg

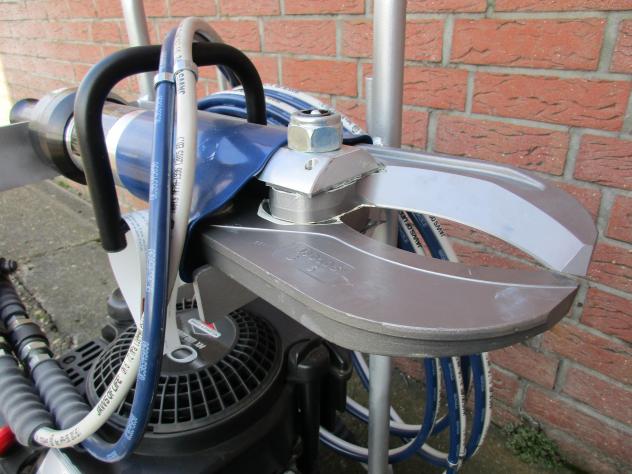

Lukas cable shears
Hydraulic cable shear for the mobile use.
New machine
The type LS/ 200 can be used very good to handle with heavy cable.
Because of its excellent shear forces it saves much time.
Its low weight makes it possible to work economically. The unique
Lukas Star Grip Ventile makes it easy to use.
The cutter blades can be resharpened.This makes a long service
life.
Operating pressure: 50 MPa
Shear forces: up to 270 kN
Width of mouth: up to 125 mm
Dimension: l/w/h 680 x 190 x 163 mm
Weight: 13,8 kg.

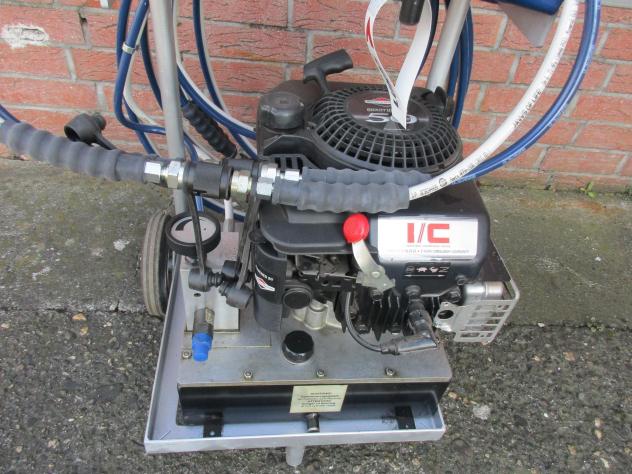

Hydraulic power system Operating pressure: 50 MPa
Oil tank: 9l
Output: low pressure 4,4 l/min
high pressure 1,4 l/min
Power: 1,5kW with 3000 min-l /230 V
Dimension: l/w/h 372 x 312 X 431 mm
Weight: 43,5 kg

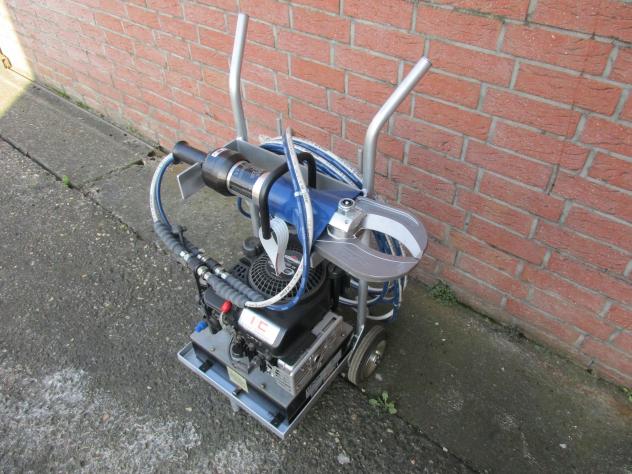

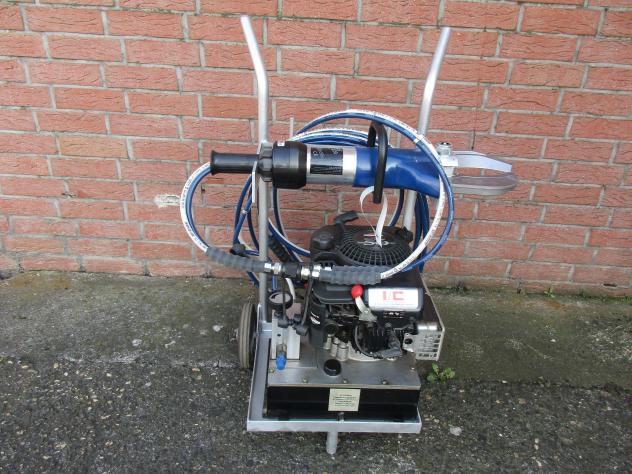

Complete with 8 m flexible tube and transport truck. There you can lay
down the cable shear.
In the manufactoring program of Lukas you can find also some other
motor-driven pumps for the drive of hydraulic shears.
Purpose-made for the cable shear is the powerfull two stage pump
P06-LSi -10-50.
This combination stands for optimal efficiency and foolproof
function.
, Technische Daten Hydraulikaggregat:
E – Motor: 1,5 kw/ 230 V
Gewicht: 43,5 kg
3000 U / Min
Bj.: 1991
350 BAR
Gewicht: 65 kg/Hydraulikaggregat
LxBxH: 75 cm x 45 cm x 48 cm
Deutschland
