CNC Bearbeitungszentren BIESSE Rover A G 2243 FT

Solid Table Nesting Machining Center

X-axis travel: 4300 mm
Y-axis travel: 2205 mm
Z-axis travel: 326 mm

Electrospindle

3-axis spindle, 12 kW

Chuck type HSK F63

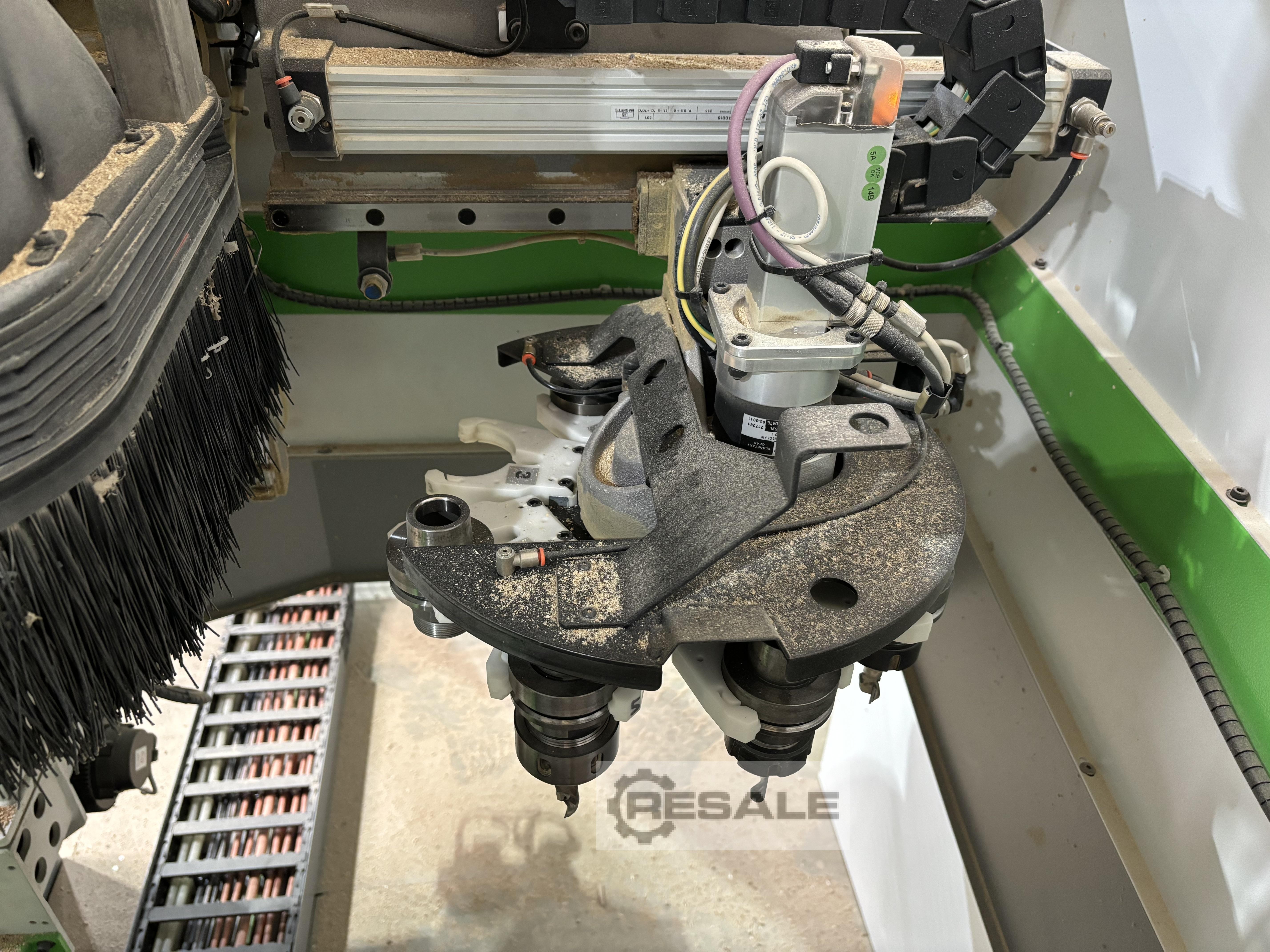

Revolver-type tool magazine, 8 tool holders

Drilling unit BH17L

Vertical and horizontal drilling unit + grooving unit

10 vertical bits, 32 mm center-to-center (7 X-oriented and 3 Y-oriented)

6 horizontal drill bits, 32 mm o.c. (2 X-oriented and 1 Y-oriented)

1 x 120 mm diameter grooving blade for X-shaped grooves (25 mm useful cut)

Independent Z-drilling unit to optimize machining times

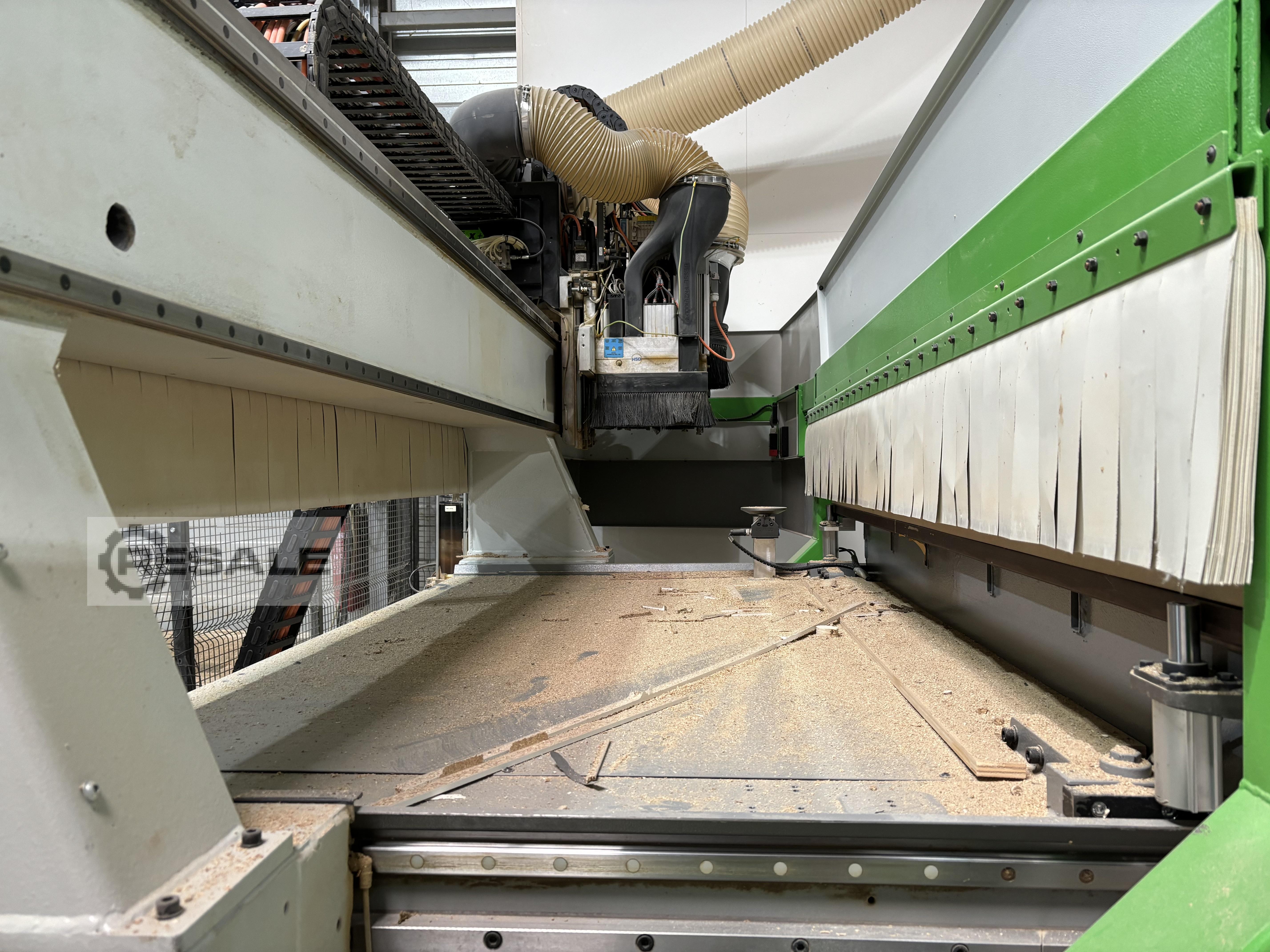

9-Vacuum Area Table with MDF Martyr Panel

Posterior, anterior and lateral reference stops (left)

2 Vacuum pumps 300 m3/h

Commands:

On Windows PC

BiesseWorks Advanced software machine version

Programming and optimization of drilling, cutting, milling, tool strokes and tool changes

Custom parametric macros

Network and/or USB file imports

3D simulator of parts and toolpaths

Parametric programming of the workpiece

Surface program of the martyr table

Collision management

Parameterized tooling and taper set included

2 BiesseWorks desktop version software keys provided

Power supply and connection:

Voltage: 400 V

Connection: Three phase

Power: 33.4 kWh

Traffic congestion:

Length: 8400 mm

Width: 5800 mm

Height: 2445 mm

Weight: 3840 Kg
