Universaldrehmaschinen über 800 mm Umlaufdurchmesser über Bett BINNS + BERRY Trident L1000

Universal Lathe
Binns & Berry Trident L1000
Conventional + DRO
Acu-Rite digital readout

Turning diameter over bed 1000 mm
Turning diameter over saddle 850 mm
Turning diameter in gap 1500 mm
Turning length max. 2500 mm

Travels
X1 500 mm Cross slide
X2 300 mm Top slide

Rapid traverses
X 3000 mm/min.
Z 4500 mm/min.

Spindle bore 104 mm
Spindle speeds 0 ~ 1250 rpm
Spindle drive motor rating 23 KW
Motor rpm inverter operated

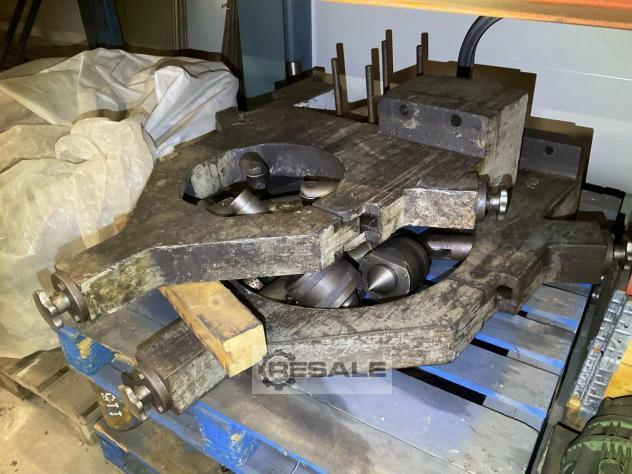

2 x Steady rests with roller bearings
Steady rest diameter 315 mm
Steady rest diameter 550 mm

4-jaw chuck diameter 1350 mm
4-jaw chuck diameter 750 mm

Coolant pump

Weight approx. 6000 kg

Proposal Number L-4813
