Stanzen und Hot Floil BRAUSSE 1050 SFF

Reference ID PP-42139
Category Hot Foil Stamper
Manufacturer Brausse
Model 1050 SFF
Year Built 2011
Speed 7500 sheets/h
Max. Size 1050 x 750 mm
Min. Size 400 x 370 mm
Condition Good
Location Europe
Availability December 2024

Machine Description
Paper (depending on quality), min. : 80 – 90 g/m2
Carton (depending on quality), up to : 600 g/m2
Corrugated board (Fine), up to : 4 mm
() Admissible undulation: 4% of the sheet width
Minimal gripper edge : 9.5 mm
Foil Stamping System
Four servo motor driven foil advancing shafts each individually programmable
for short and long foil stepping 99 programmable short pull per shaft
Each foil advancing shaft is equipped with a holographic foil print mark reading
photo sensor.
Industrial PC holographic foil stamping to print register system with manual
register tolerance compensation device.

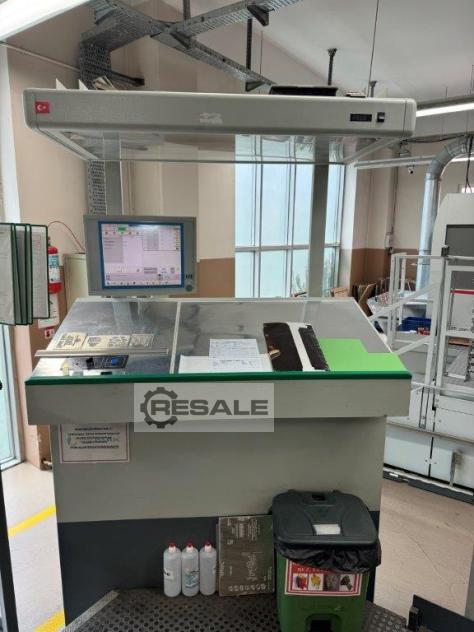

Free standing operation console with industrial pc, Pro – Face touch screen and
12 thermometers
for foil advancing step setting and temperature control with machine preheating
timer
Draw type foil roll bracket for loading foil outside at operation side
Foil lead through bar
450 turning bar
Specifications for die cutting:
Maximum die cutting size: 1040 x 730 mm
Inner size of chase: 1145 x 755 mm
Dimensions die cutting plate: 1080 x 736 mm
Maximum die cutting pressure: 300 T
Maximum mechanical speed: 7500 cycles/hour
Foil splitting blade Heating base with 12 heating zone each temperature
adjustable individually
Foil breaking control
Warning system for remaining foil
Oil cooled tension control shaft
Foil separating air blaster with air volume, blasting strength per zone and
starting and ending time adjustment
Thin paper stretching air blaster with air volume, blasting strength per zone and
starting and ending time adjustment
A/C motor driven inverter-controlled brush rollers waste foil ejecting and foil
tension system
Verkäufer Angebot Nr. resale PP-42139
