CNC Laserschneidanlagen BYSTRONIC BySmart Fiber 3015

Tischlänge:3000 mm

Tischbreite:1500 mm

Laserleistung in Watt:4000 W

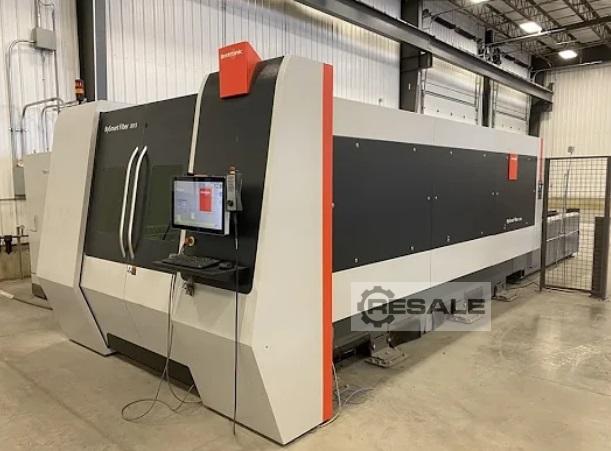

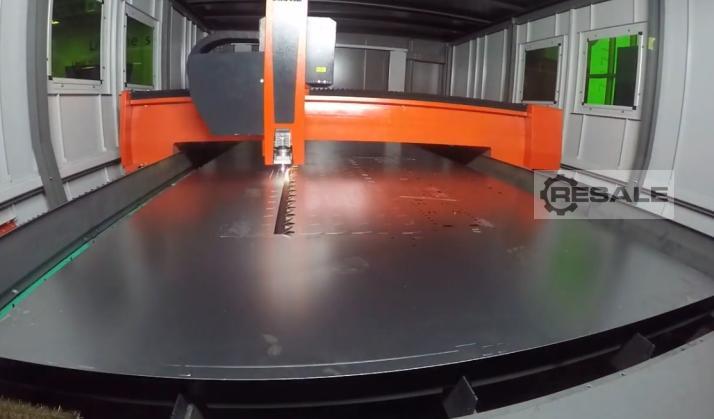

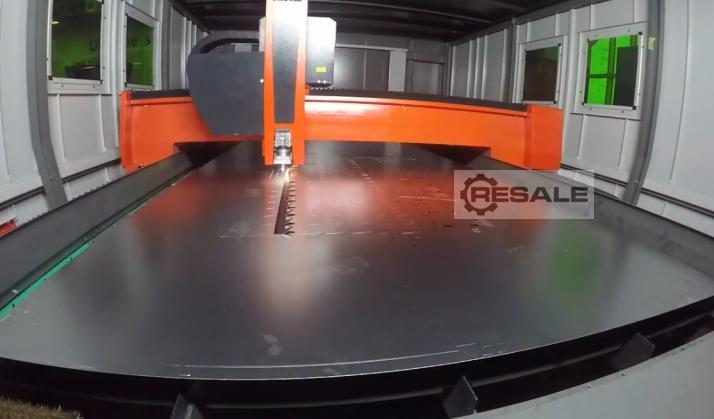

Bystronic BySmart Fiber 3015 sheet metal cutting laser; Fiber 4000W
Year of production: 2020
Manufacturer: Bystonic Switzerland.

The machines are in very good technical condition and still work in their original place. You can do an inspection and tests.
If you are interested, do not hesitate to contact me. I will send additional information and photos.

Efficient programming and low operating costs of the machine.
Wide range of applications, where in addition to "black" steel, stainless steel and aluminum, we also have the possibility of processing non-ferrous metals with the highest quality.
Total length, approx. 10495 mm
Total width, approx. 6903 mm
Total height, approx. 2880 mm
Nominal sheet size (X) 3000 mm
Nominal sheet size (Y) 1500 mm
Machine weight (without exhaust, cooler) 11800 kg
Table change time 27 s
Cutting area (X) 3106 mm
Cutting area (Y) 1582 mm
Cutting area (Z) 100 mm
Steel (maximum thickness) - with BeamShaper option 20 mm
Stainless steel (maximum sheet thickness) 15 mm
Aluminum (maximum sheet thickness) 15 mm
Copper (max. thickness sheet) 8 mm
Brass (maximum sheet thickness) 8 mm
Complete ventilation system.
