Reference ID PP-43024
Category Postpress / Bindery
Year Built 2018
Condition Good
Location Europe
Availability Immediately

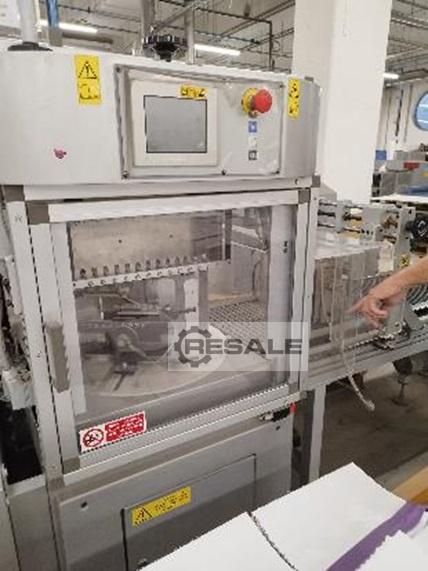

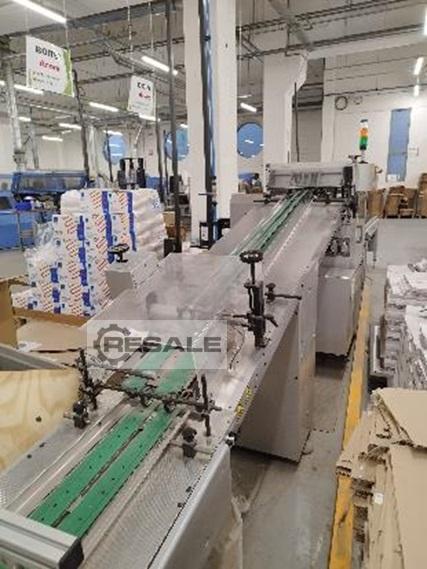

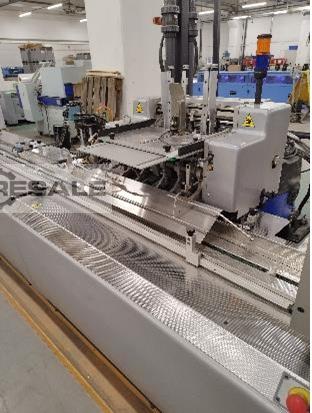

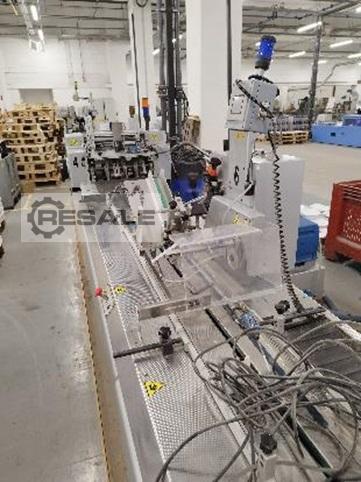

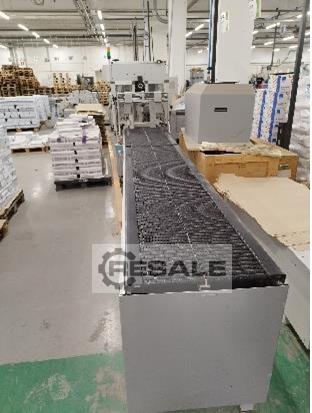

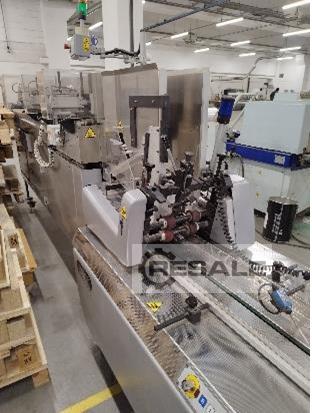

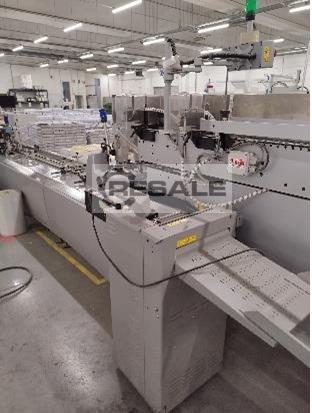

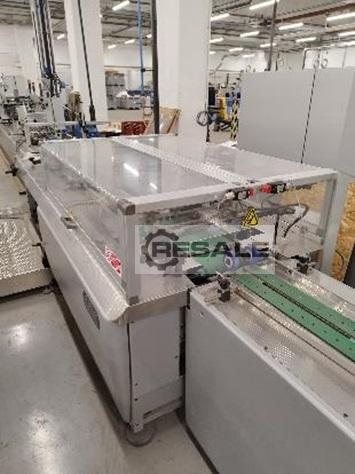

CMC 2000 film-wrapping machine
• 1 x Autoloader for stacked loading of stapled or perfect bound
books and magazines.
• 1 x Hopper feeder for feeding rigid and thicker product on-line
• 1 x First page opener with two opposite suction cups.
• 1 x Product opener by means of a blade.
• 2 x Rotary drum feeder with one gripper, 1 can be placed 90°
• 1 x Rotary disk separator for sheet feeder, max. thickness 3mm
• 1 x Place for an ink-jet module
• 1 x Pick & place for gadgets, credit cards etc, with hot-melt
installation on vacuum-belt
• 1 x film wrapping machine CMC2000, for products 1 to 40 mm
thickness, speed 18.000/h.
• 1 x ARC. Its main feature is the capability to self-slow down when
there is a lack of product (feeding gap), even though the flighted
conveyor keeps on moving. Max speed for use 10.000/h
• 1 x External spool unwinder – max diameter 600 mm
• 1 x Longitudinal perforator.
• 1 x Fixed electronic longitudinal sealer.
• Hardware and software system for pre-printed film or paper
registration.
• Sloped by-pass with automatic reject gate with 1 free position for
placing 1 ink-jet printer.
• 1 x 1D and 2D reader
• 1 x robot 300c: The stack-turning stacker mod. ROBOT 300 C can
automatically count and stack on a criss-cross basis copies coming
from wrapping machines.
• Automatic pack stop installed just after the pack ejector on the
stacker.
• Transport table 2 meter
• Applicateur d'étiquettes autocollantes
• Software Read & write – Selectivity - Matching - Zip-code
change/bundle change – Postalisation – Rejection - Data storing
– Barcode management - 8 Inkjet serial printhead management
