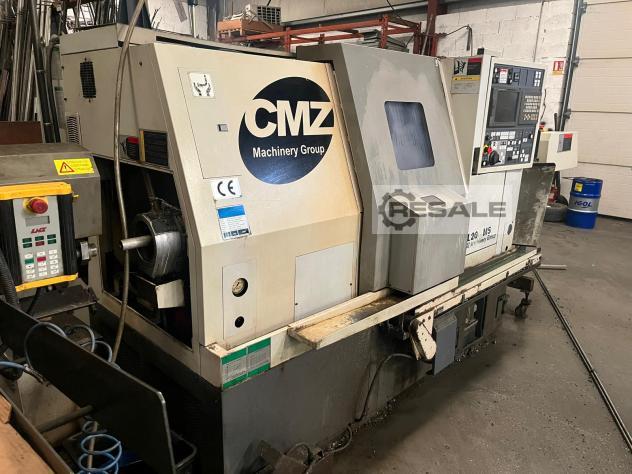

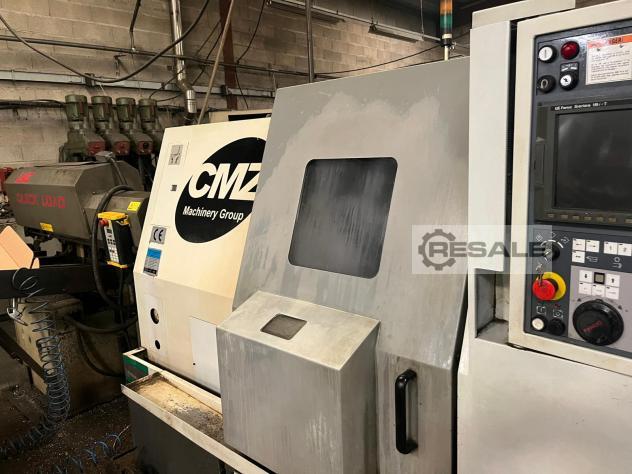

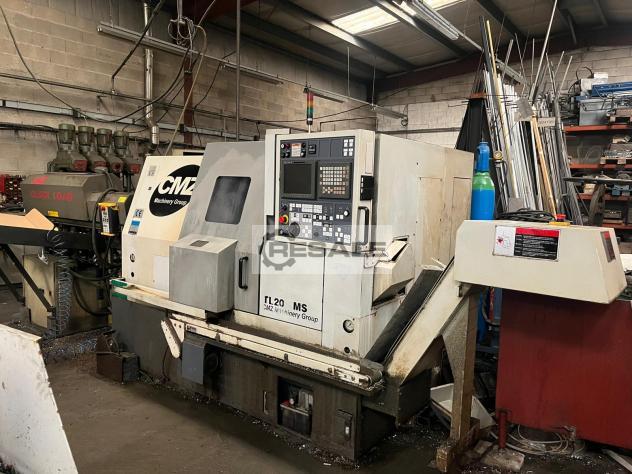

CNC Drehzentren CMZ TL 20 MS

Drehdurchmesser:400 mm

Drehlänge:840 mm

Machine-Details
Stock-No. 1105-03961
Type of machine CNC Turning- and Milling Center
Make CMZ
Type TL 20 ms
Year of manufacture 2007
Type of control CNC
Storage location FRANKREICH
Country of origin espagne
Delivery time to be agreed
Freight basis EX WORK
Price

Technical details
turning diameter 400 mm
turning length 840 mm

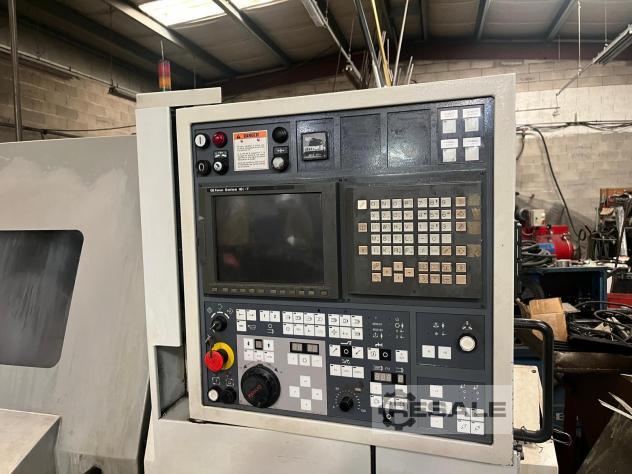

control FANUC 18 IT
bar diameter 66 mm
travel -x axis 210 mm
travel -z axis 840 mm
turning speed range - drive spindle 40-5000 1/min
spindle nose JIS A2-6
spindle bore 66 mm
C-Axis 0,001°
spindle bearing diameter 110 mm

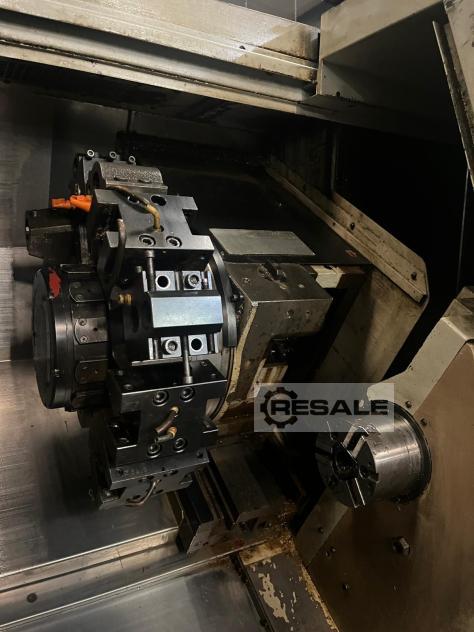

turret head 12 Pos.
tool changing time 0,2 sec
rapid traverse X-axis 18 m/min
rapid traverse Z-axis 24 m/min
drive capacity - spindle motor 15/11 kW
total power requirement 35 kW
weight of the machine ca. 5 t
dimensions of the machine ca. 2,7 x 2,2 x 1,9 m
Additional information
VERY NICE MACHINE WITH FANUC 18 IT

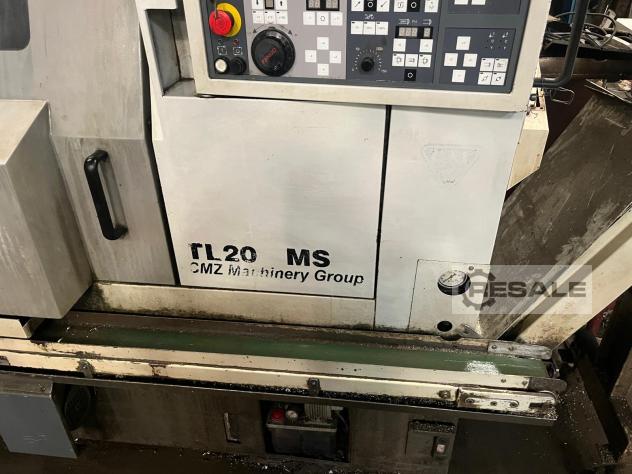

cHIP CONVOYOR
HP POMPE
C AXIS AND LIVE TOOLS
sup spindel
