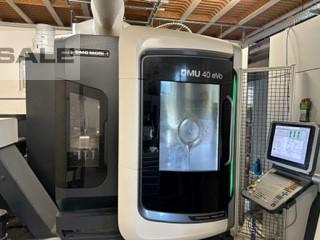

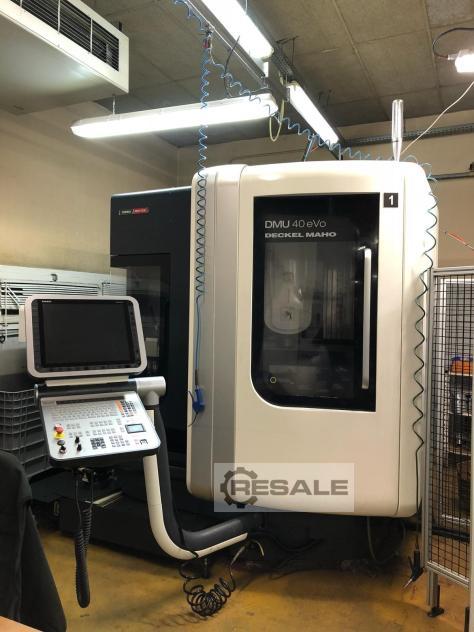

CNC Bearbeitungszentren DMG DECKEL MAHO DMU 40 EVO

x-Weg:400 mm

y-Weg:400 mm

z-Weg:375 mm

Machine-Details
Stock-No. 1105-03922
Type of machine Machining Center - Universal
Make DMG DECKEL MAHO
Type DMU 40 EVO
Year of manufacture 2016
Type of control CNC
Storage location HAGUENAU
Country of origin Germany
Delivery time to be agreed
Freight basis ex site
Price

Technical details
x-travel 400 mm
y-travel 400 mm
z-travel 375 mm
control iTNC 530 Heidenhain
turning speed range - main spindle max. 20.000 min/-1
power capacity - main spindel 19 kW
max. Torque 130 Nm
tool taper SK 40
swivellable -105+ 40 °
table surface area Ø 450 mm
T-slots 7x 14 x 63 mm
max. table load ca. 275 kg
rotatable C: 360 °
max. workpiecediameter 500 mm
max. workpiece height 400 mm
number of toolpositions 60 pos.
tool taper SK 40
max. tool diameter 80 mm
max. tool-dia with free toolbox 160 mm
max. tool length 315 mm
max. tool weight 8,0 kg
change-time chip to chip ca. 3,9 sec
feed speeds max. 50.000 mm/min
rapid traverse 50 m/min
Feed force ( X / Y / Z ) 7 / 13 / 10 kN
total power requirement 35 kVA
weight of the machine ca. 6 t
dimensions of the machine ca. 3,0 x 2.,5 x 2.8 m
Accessories
Documents
Coolantsystem
elektr. hand wheel
NC-rotary table
test probe TS 649
Signal lamp - 4 colour
Airblow through center of spindle
Additional information
5 Axis CNC - MachiningCenter Universal

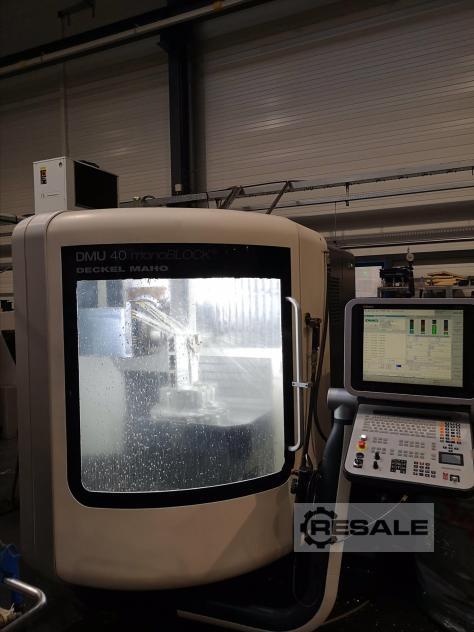

DECKEL MAHO - DMU 40 monoBLOCK

- 5 Axis-Simultaneous-Machining
- first installation in 2014
