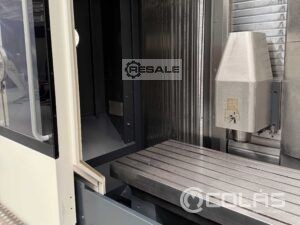

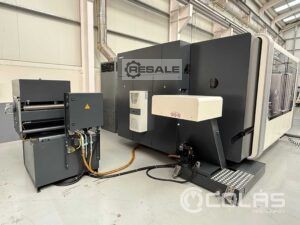

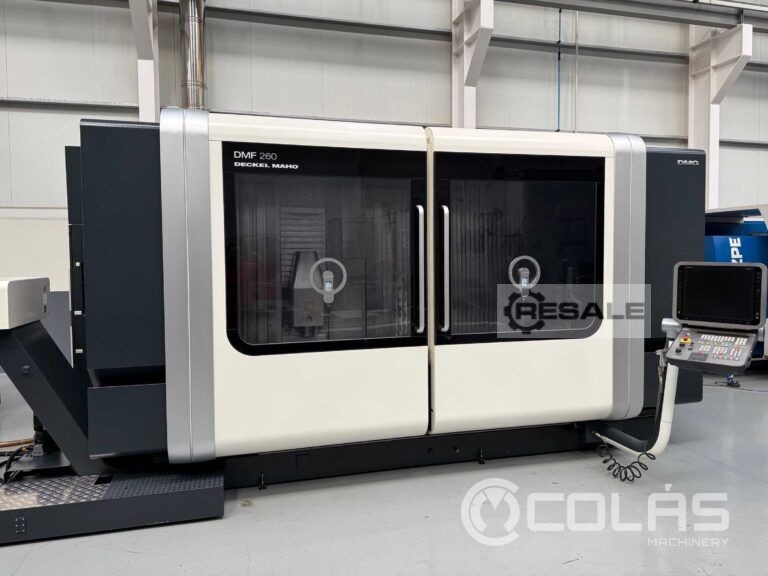

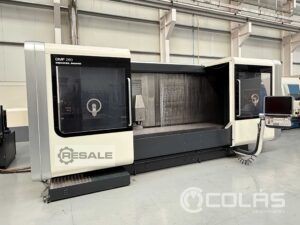

CNC Bearbeitungszentren DMG DMF 260

Manufacturer DMG-MORI
Model DMF 260
Year 2011
CNC SIEMENS SINUMERIC 840D
Table
Table dimensions 2.900 x 700 mm.
Max workpiece weight 2.150 kg.
Tavels and feeds
Longitudinal traverse (X Axis) 2.600 mm
Cross traverse (Y Axis 700 mm
Vertical traverse (Z Axis) 700 mm
Rapid traverse axis (X,Y,Z) 40 m/min
Feed rate (X/Y/Z) 40 m/min
Acceleration in the axis 4 m/s2
Main Spindle
Turning speeds 14.000 mm/min
Taper SK 40 DIN 69872
Spindle power 18,4 / 14 kW
Automatic tool changer
ATC Positions 30
Max. tool length 300 mm
Max. tool weight 6 kg.
Max. tool diameter with free neighboring places 130 mm
Max. tool diameter without free neighboring places 80 mm
Equipment
Internal coolant 40 Bar / 600 l INCLUDED

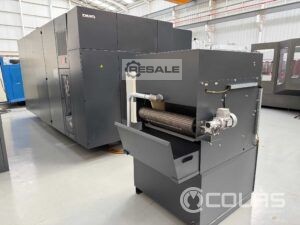

Longitudinal chip conveyor INCLUDED
Cleaning gun INCLUDED
Portable handwheel INCLUDED
Direct measuring system INCLUDED
Machine hours
Machine power on hours 18.859 h
Spindle working hours 5.666 h
Others
Total power 55 kVA
Machine dimmessions ( LxWxH) 10.280 x 7.230 x 3.042mm
Machine weight 14.520 kg.
Verkäufer Angebot Nr. resale 166528013
