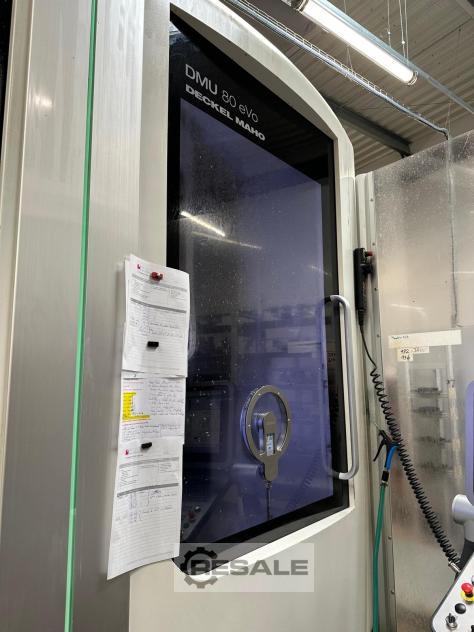

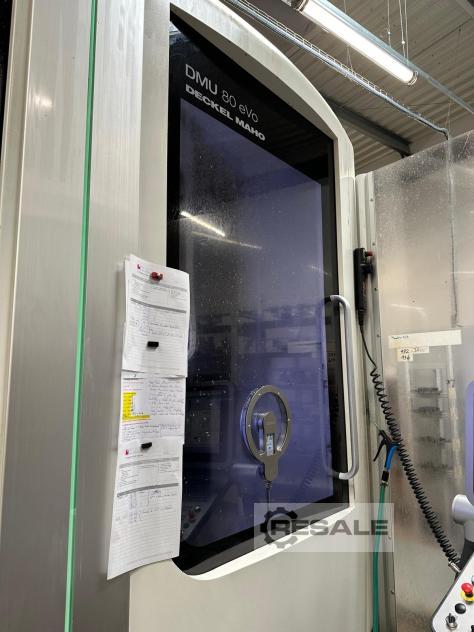

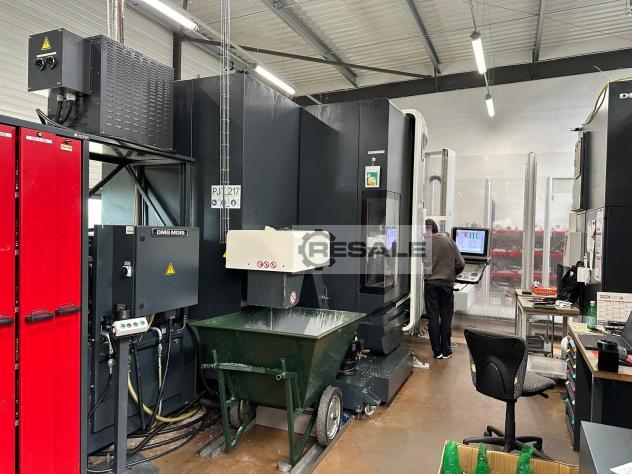

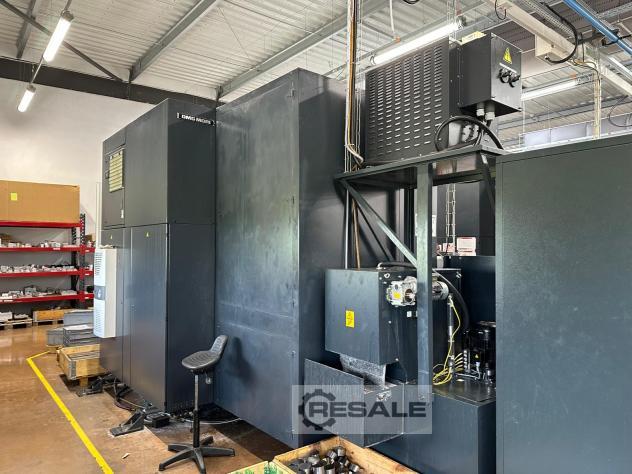

CNC Bearbeitungszentren DMG MORI DMU 80 EVO LINEAR

x-Weg:800 mm

y-Weg:650 mm

z-Weg:550 mm

Machine-Details
Stock-No. 1105-04022
Type of machine Machining Center - Universal
Make DMG DECKEL MAHO
Type DMU 80 eVolution LINEAR
Year of manufacture 2014
Type of control CNC
Storage location HAGUENAU FRANCE
Country of origin Germany
Delivery time to be agreed
Freight basis ex site

Technical details
x-travel 800 mm
y-travel 650 mm
z-travel 550 mm
control iTNC 530 Heidenhain
distance spindle nose and table 150 - 700 mm
turning speed range - main spindle max. 18.000 min/-1
power capacity - main spindel 35 / 25 kW
max. Torque 130 Nm
tool taper HSK
table surface area 800 x 700 mm
max. table load 600 kg
rotatable C: 360 °
Swivel range B: -5 / -110 °
number of toolpositions 120 pos.
tool taper HSK 63
max. tool diameter 80 mm
max. tool-dia with free toolbox 160 mm
max. tool length 315 mm
max. tool weight 8,0 kg
change-time chip to chip ca. 5,9 sec
feed speeds max. 30.000 mm/min
rapid traverse 80 m/min
total power requirement 50 kW
weight of the machine ca. 12,0 t
dimensions of the machine ca. 4,5 x 4,0 x 2,5 m
Accessories
Documents

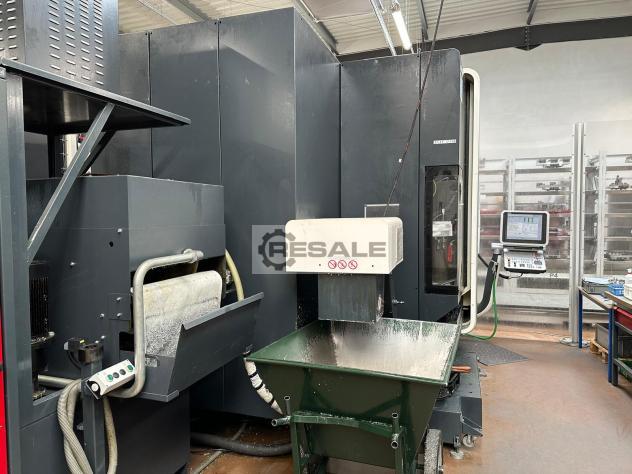

Chip conveyor
Coolantsystem
high pressure coolant
through spindle coolant
elektr. hand wheel

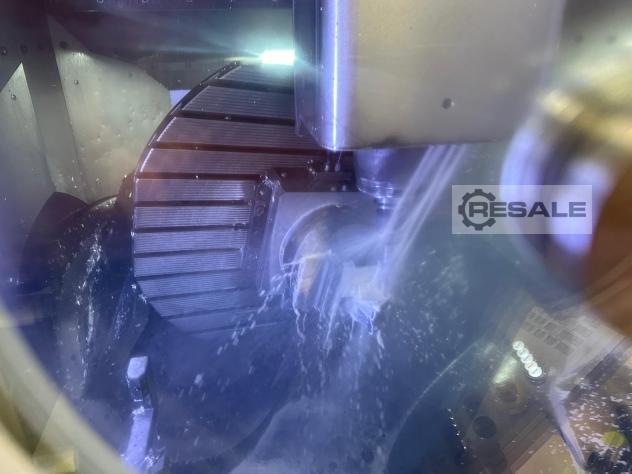

NC-Rotary Swiveling Table
test probe
Additional information
CNC - MachiningCenter Vertical
DMG DECKEL MAHO - DMU 80 eVolution LINEAR
CNC HEIDENHAIN ITNC 530 HSCI
- 5 Axis
