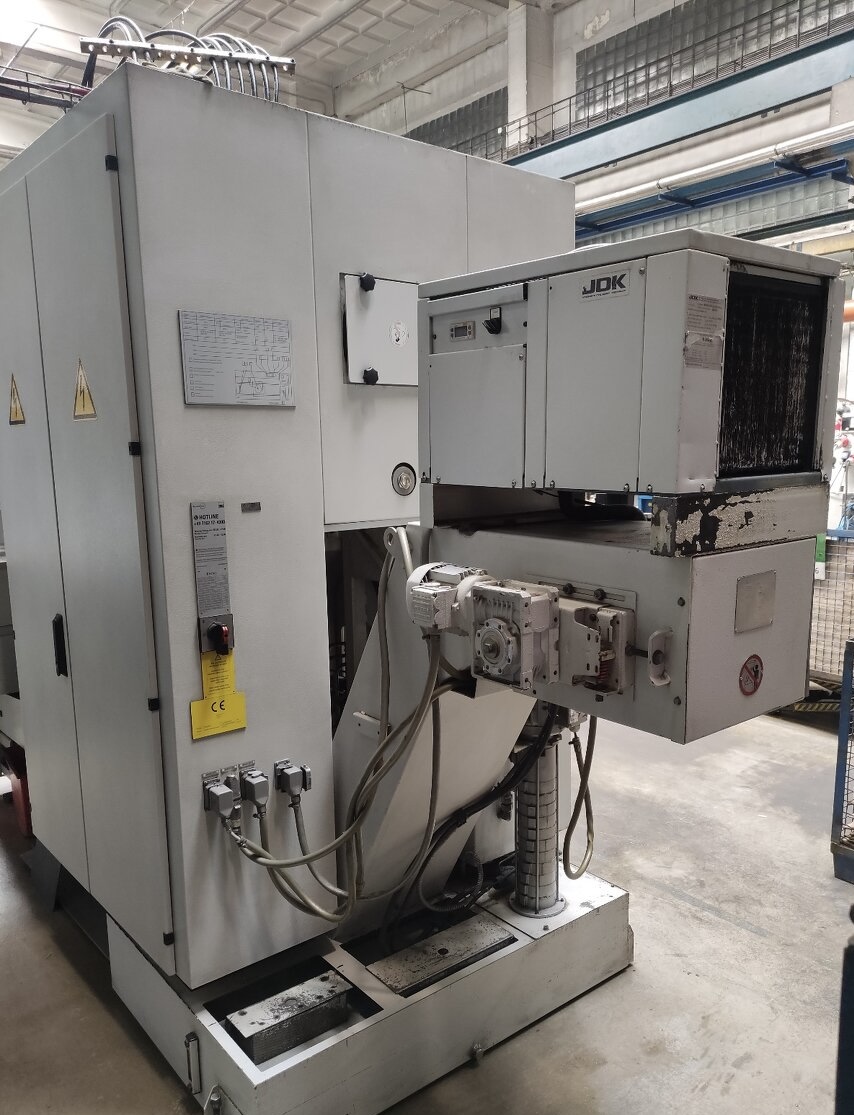

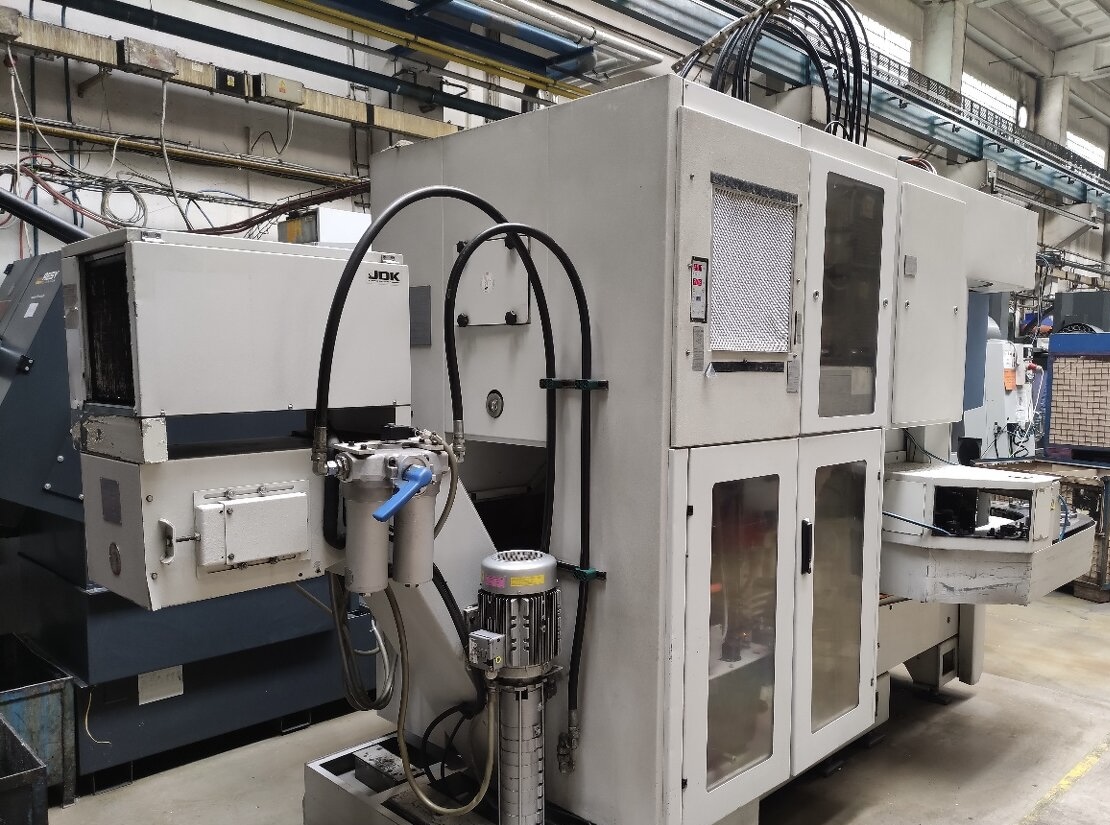

CNC vertical lathe
Type: VL 5i F
Manufacturer: Emag
Year: 2016
number of axes : 2
max clearance diameter : 250 mm
max part diameter : 220 mm
machining height : 175 mm
strokes (X/Z) : 660 / 300 mm
quick feed (X/Z) : 60 / 30 m/min
turret
number of positions : 12
tool-holder : VDI40
spindle
power : 28 /18 kW
speed : 0 to 4.500 rpm
index precision C axis : 0,001°
part magazine capacity diameter 30 to 85 mm : 37 pos.,max 4.5 kg
part magazine capacity diameter 30 to 160 mm : 22 pos.,max 8 kg
part magazine capacity diameter 80 to 220 mm : 16 pos.,max 10 kg
part height max : 175 mm
voltage : 400 V
installed power : 36 kW
dimensions
floor space: 2266 x 4184 mm
height : 3200 mm
weight : 7.500 kg
Chip conveyor
Machine in good condition, under power
