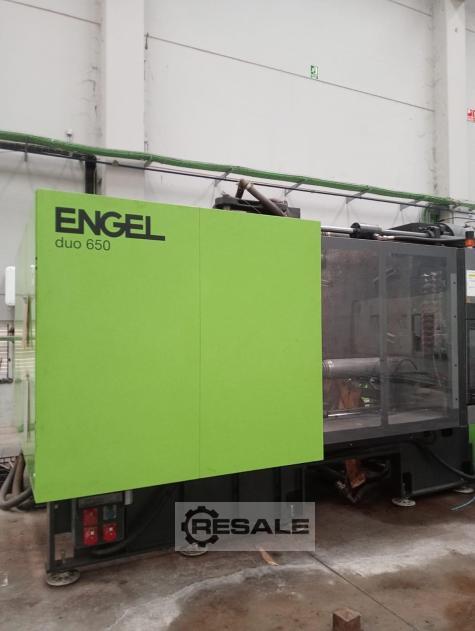

Spritzgiessmaschinen ENGEL DUO 5160/650

Schließkraft:6500 kN

Schneckendurchmesser:90 mm

TECHNICAL SPECIFICATIONS:

Clamping Force: 650 ton
Shot Weight (Max): 2375 g
Distance Between Tie-Bars (H): 1100 mm
Distance Between Tie-Bars (V): 960 mm
Platen Size (H): 1510 mm
Platen Size (V): 1440 mm
Screw Diameter: 90 mm
Mould Height (Max): 950 mm
Mould Height (Min): 450 mm
Daylight Between Platens (Max): 1850 mm
Opening Stroke (Max): 1400 mm
Ejector Force: 9,50 ton
Ejector Stroke: 250 mm
Screw L/D Ratio: 25
Screw Speed: 190 rpm
Screw Torque: 5000 N·m
Injection Volume: 2610 cm³
Injection Pressure: 1583 bar
Injection Rate: 751 cm³/s
Nozzle Force (Max): 15 ton
Nozzle Stroke (Max): 700 mm
Plasticising Capacity: 123,50 g/s
Heating Zones: 9
Heating Capacity: 46,40 kW
Verkäufer Angebot Nr. resale 164784798
