CNC Bearbeitungszentren FAMUP MCX 600

Machine-Details
Stock-No. 1105-03507
Type of machine Machining Center - Vertical
Make FAMUP
Type MCX 600
Year of manufacture 1994
Type of control CNC
Storage location FRANKREICH
Country of origin italy
Delivery time immediately
Freight basis EXW 'as is where is

Technical details
x-travel 600 mm
y-travel 400 mm
z-travel 400 mm

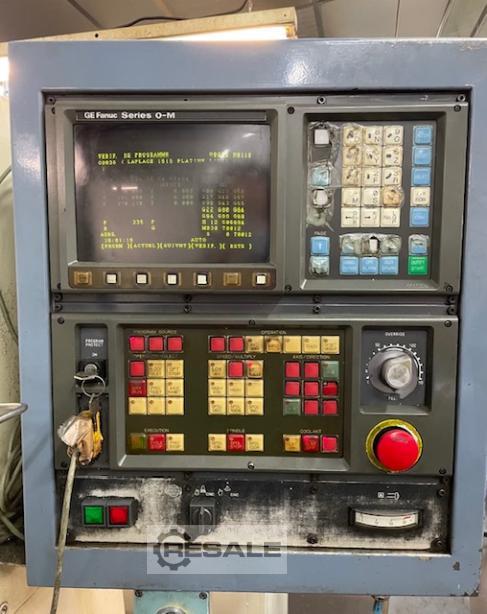

Controls FANUC OM
- X-axis traverse 600 mm
- Y-axis traverse 400 mm
- Z-axis traverse 400 mm
- number of controlled axes 3
- table surface (left-right) 400 mm
- table surface (front-back) 400 mm
- workpiece load (max) 300 kg
- spindle revolutions (max) 6000 /min
- tool fixture ISO SK 40
- drive power (max) 11 kW
- number of positions 18
- tool diameter max. 75 mm
- tool changing time 2 s
- space requirements length 3200 mm
- space requirements width 2.900 mm
- total height 2600 mm
- total weight approx. 3500 kg
Additional information
FANUC OM
Machine can be inspect under power.
