CNC Bearbeitungszentren FEELER VMP 45

x-Weg:1100 mm

y-Weg:610 mm

z-Weg:600 mm

Machine-Details
Stock-No. 1105-04045
Type of machine Machining Center - Vertical
Make FEELER
Type VMP 45A
Year of manufacture 2015
Type of control CNC
Storage location FRANKREICH
Country of origin taiwan
Delivery time immediately
Freight basis EX WORK

Technical details
x-travel 1100 mm
y-travel 610 mm
z-travel 600 mm
tool taper BT 40
spindle drive 18.5 kW
spindle turning speed range 60 - 10000 U/min
tool change unit 30-fach BT 40
tool changing time 4 sec
table-size 1200 x 600 mm
table load capacity - central/maximum 1100 kp
rapid travel x/y/z 24 m/min
feeds x/y/z -stepless 20000 mm/min
total power requirement 40 kVA
weight of the machine ca. 8 t
Additional information

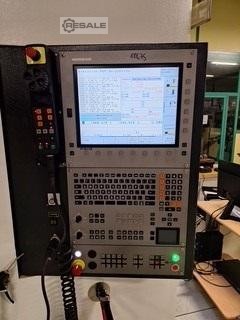

CNC control HEIDENHAIN TNC 530 I HSCI
MACHINE LIKE NEW
complete covering,
A.T.C. for 30 tools BT 40
COOLING TROUGHT THE SPINDEL 20 BARS
TABLE 1200 X 600
18 KW 10000 RPM
Verkäufer Angebot Nr. resale 165963905
