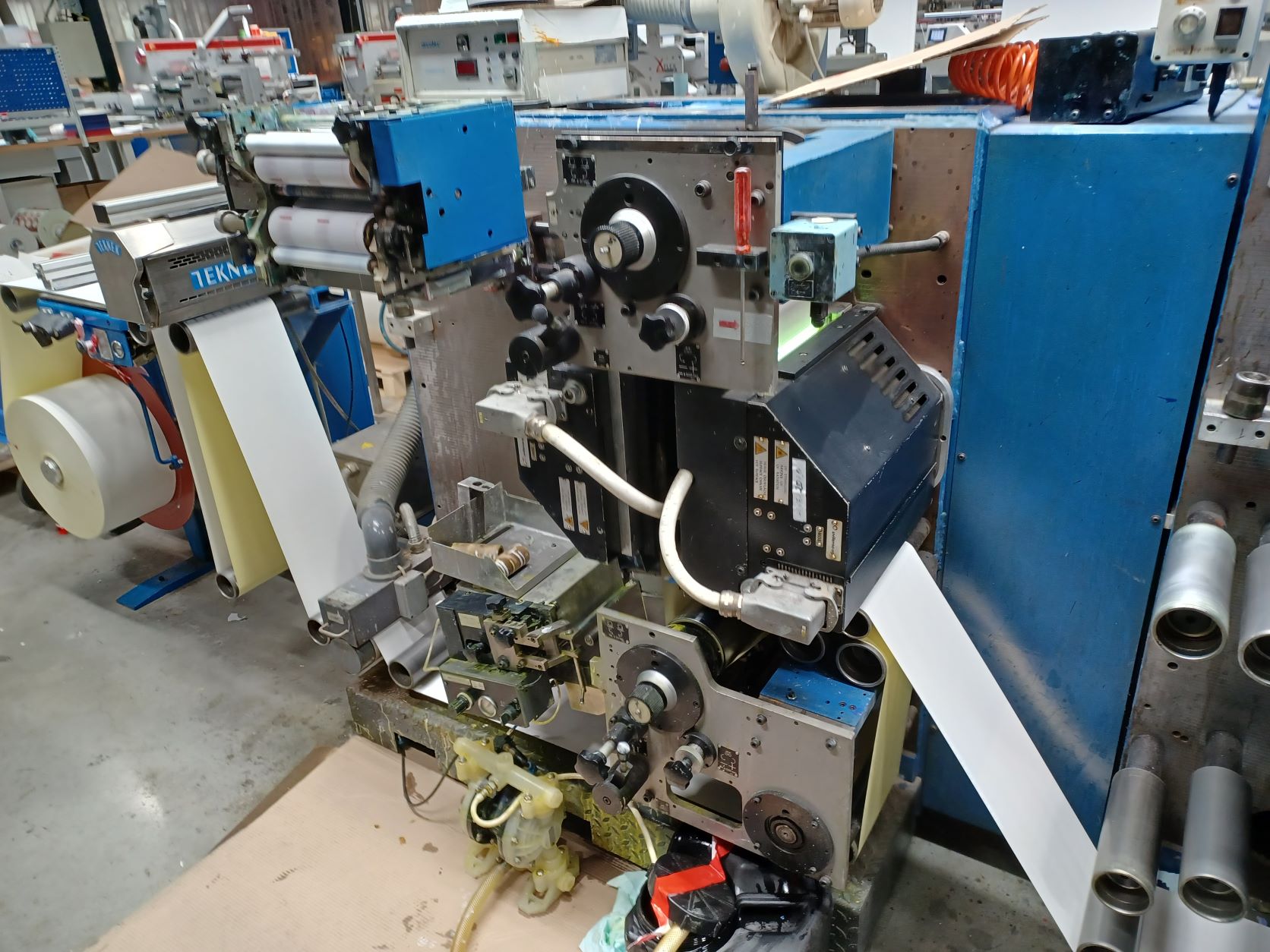

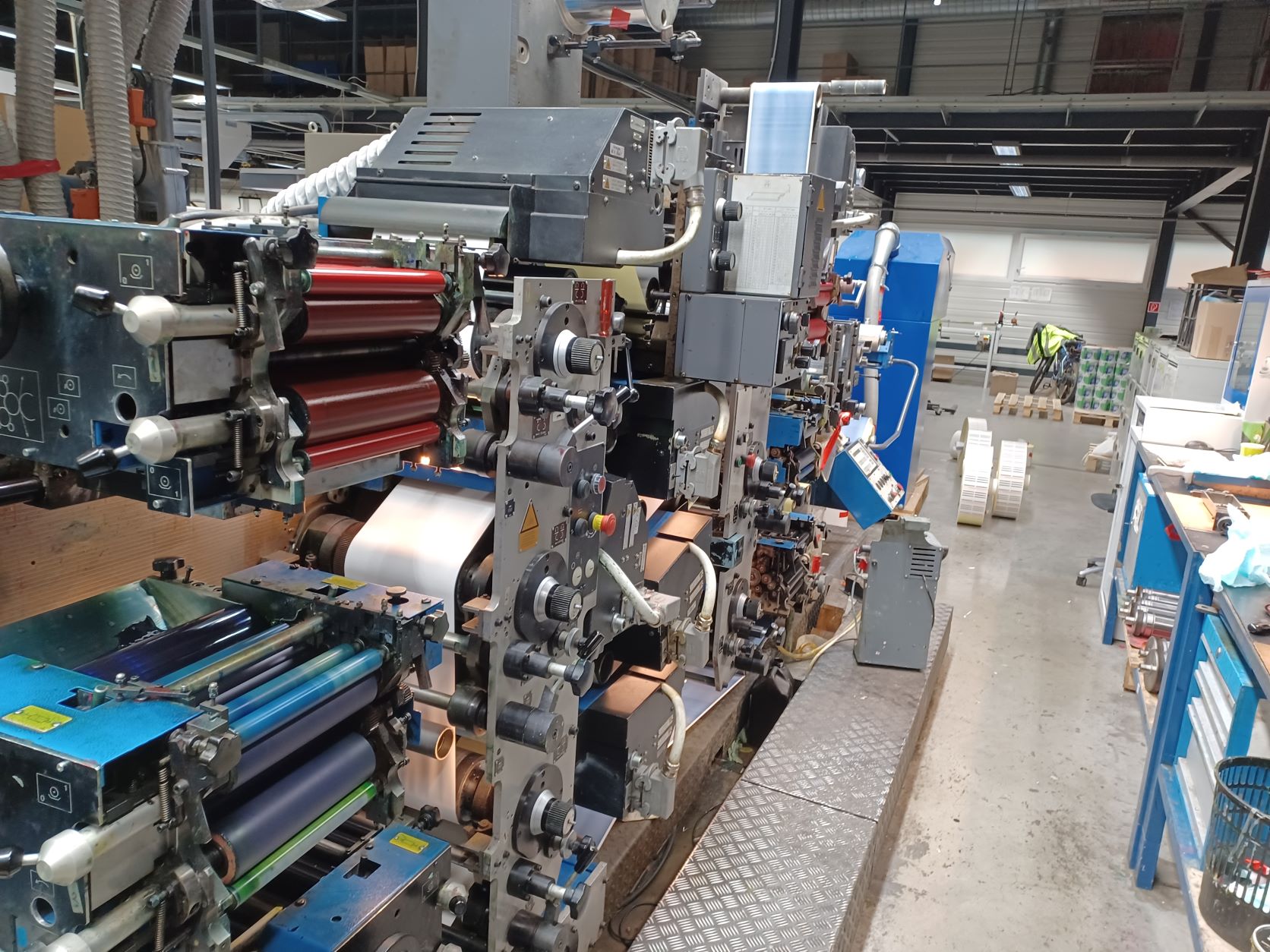

Gallus R200 (refurbished by Graficon in 2005)
Label printing machine
Machine definition

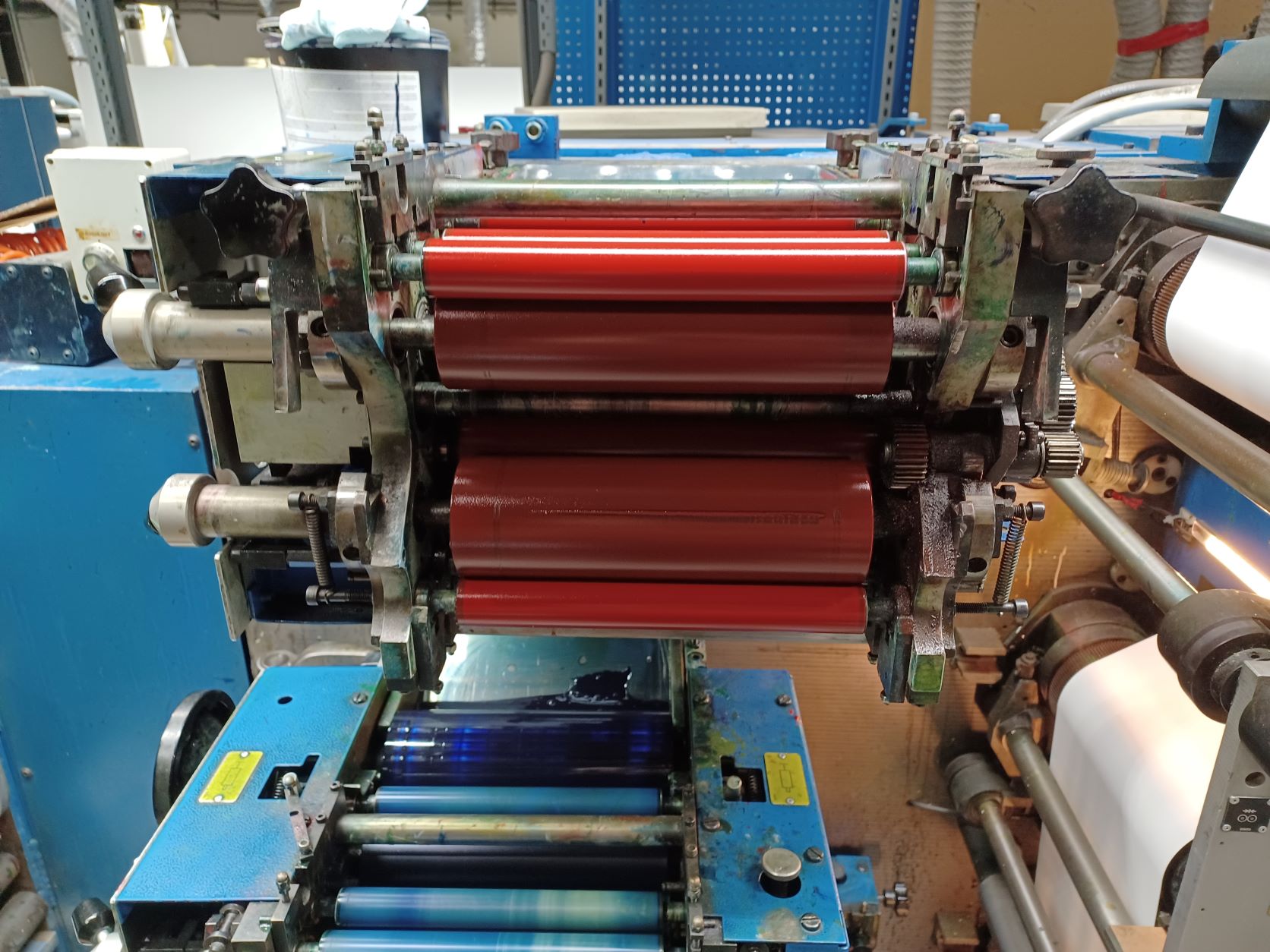

1 UV rotary screen + 7x UV letterpress + 1 UV flexo
Rotary hot stamp unit (after 5th unit)
Printing to glue / liner (2 units)
2x rotary die cutting unit
Longitudial slitting
Technical parameters:
Max. width of material: 222 mm
Max printing width: 205 mm

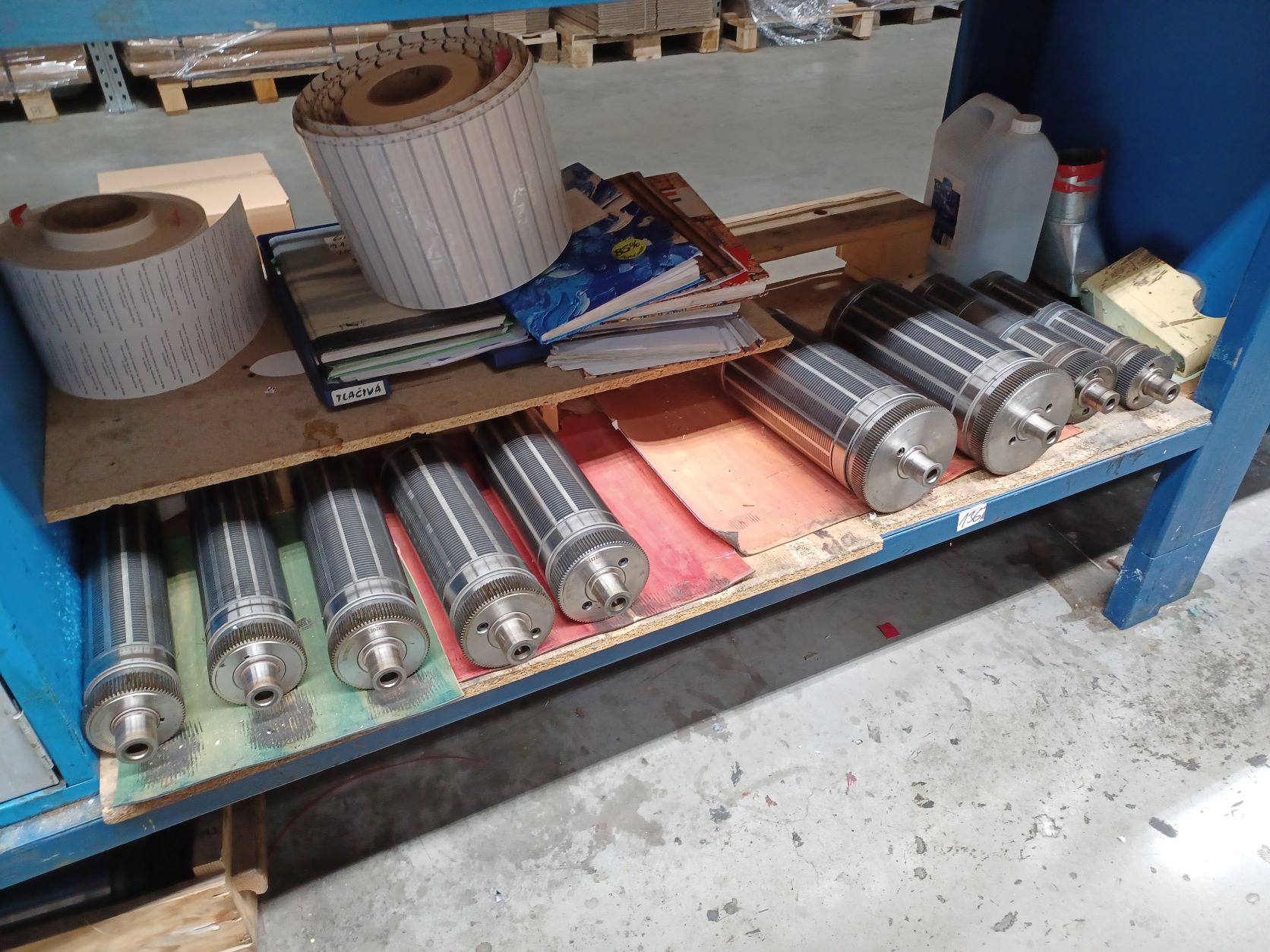

Magnetic cylinders: 72, 78, 84, 90, 96, 132, 136 teeth

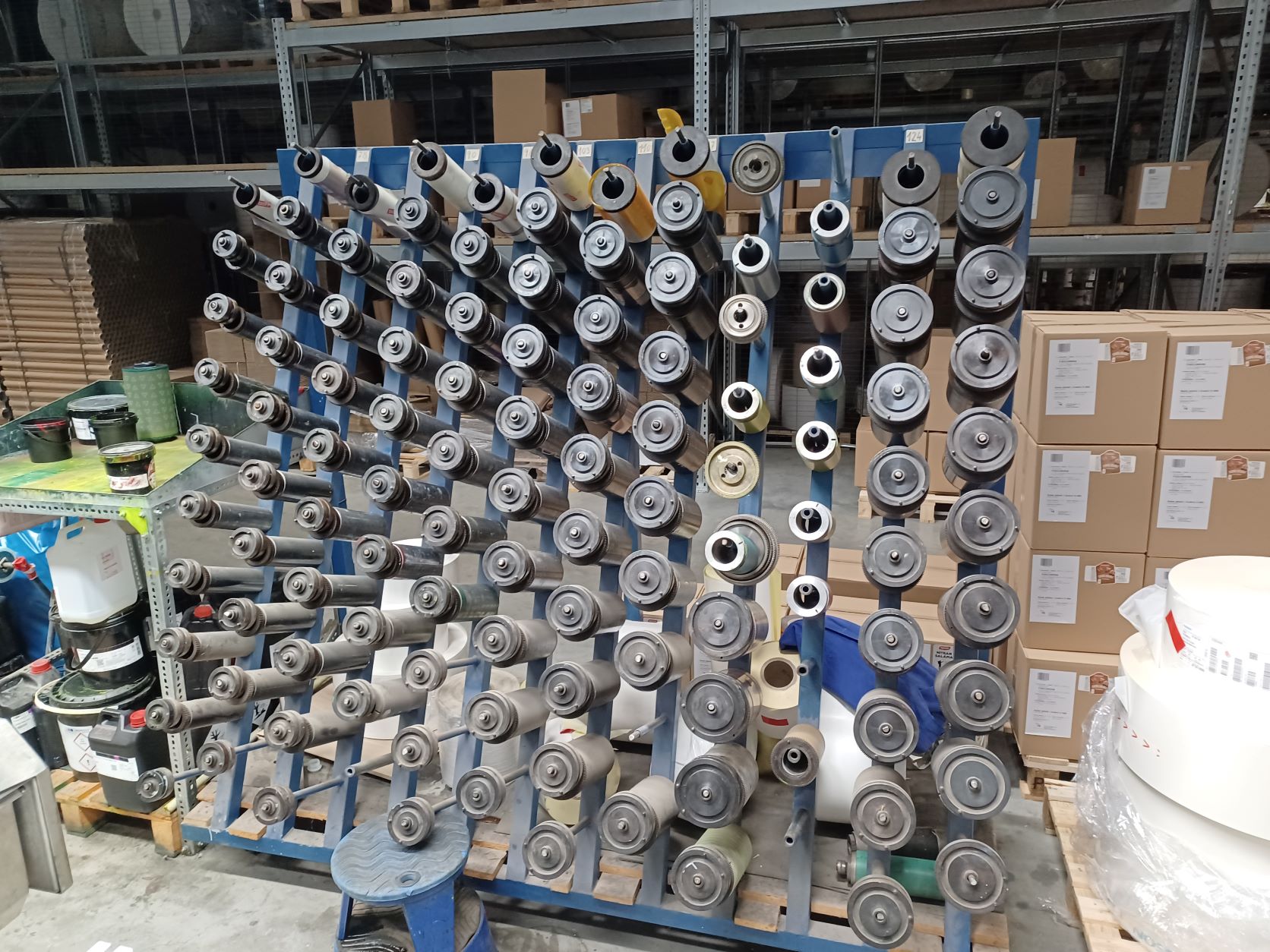

Printing cylinders: 72, 78, 84, 90, 96, 103, 110, 117, 124, 132
teeth
Collars for screen: 110, 117, 124, 132, 144, 156, 168 teeth

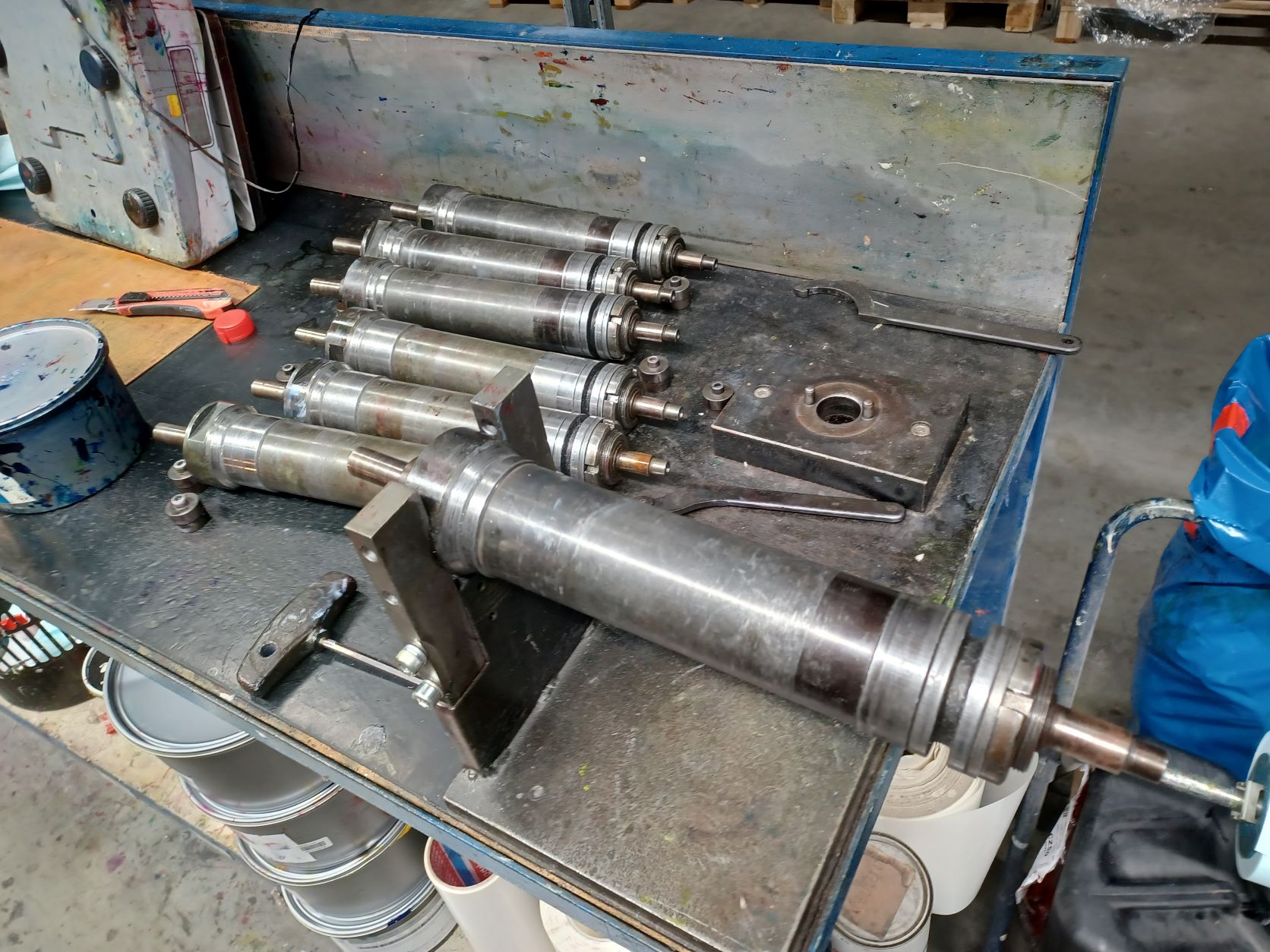

Cores for hot stamp: 72, 78, 84, 96, 103, 110, 117, 124 teeth
