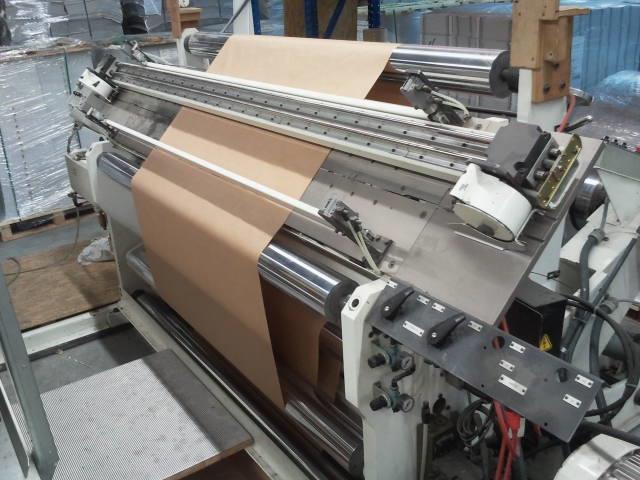

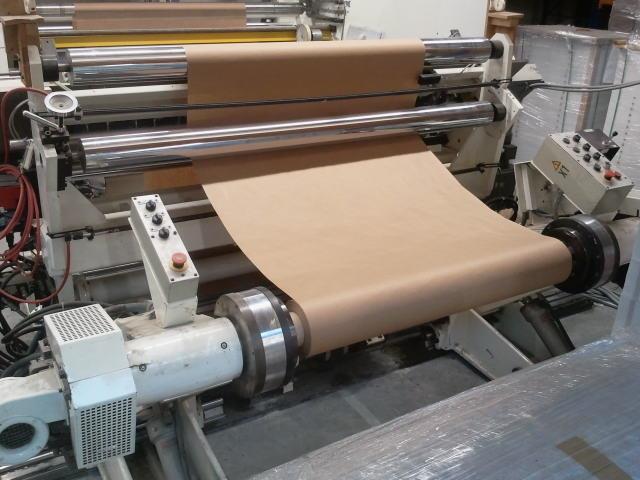

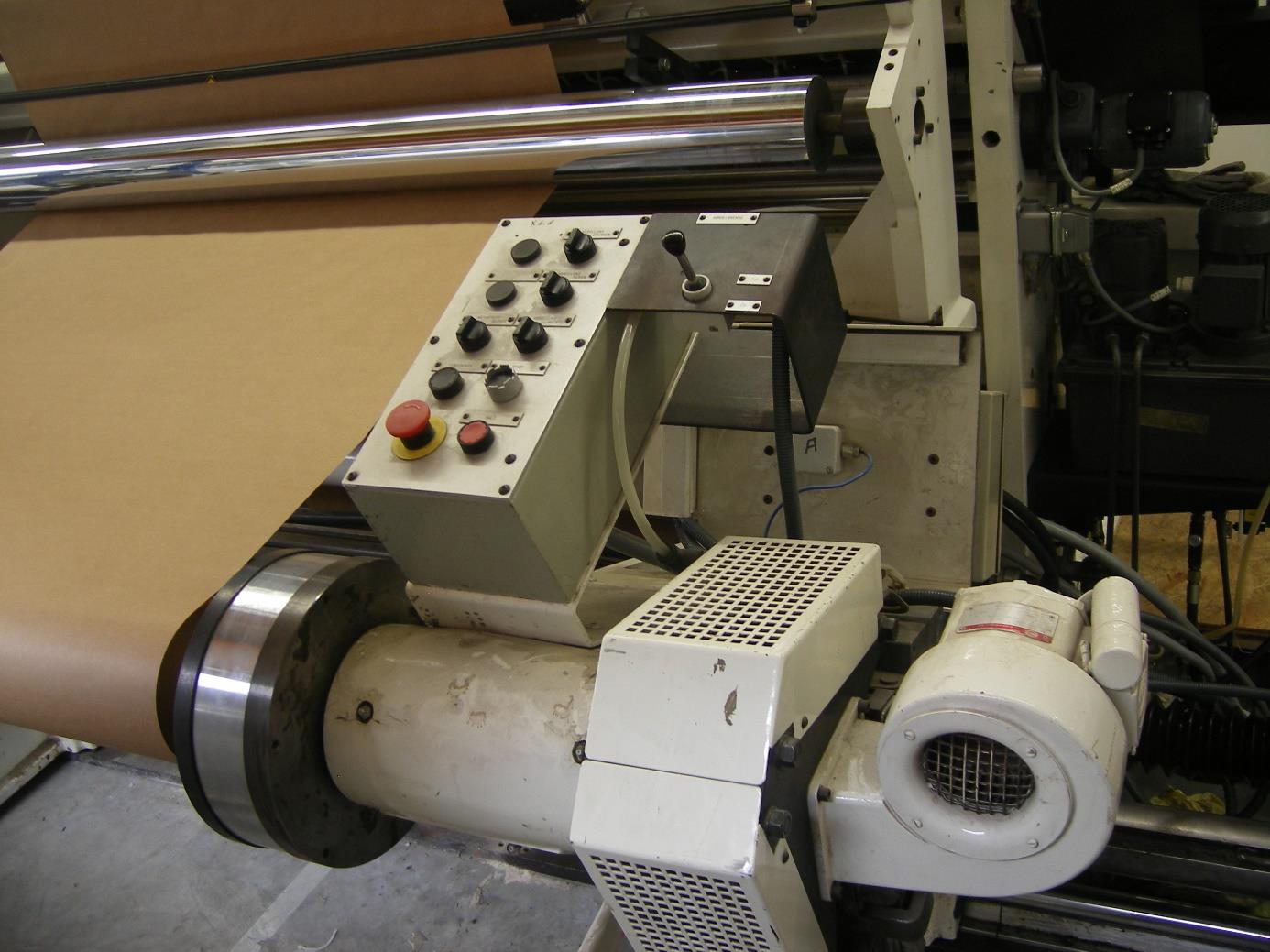

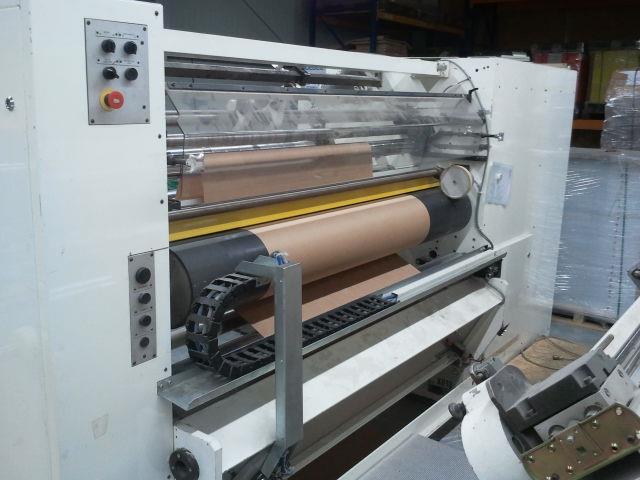

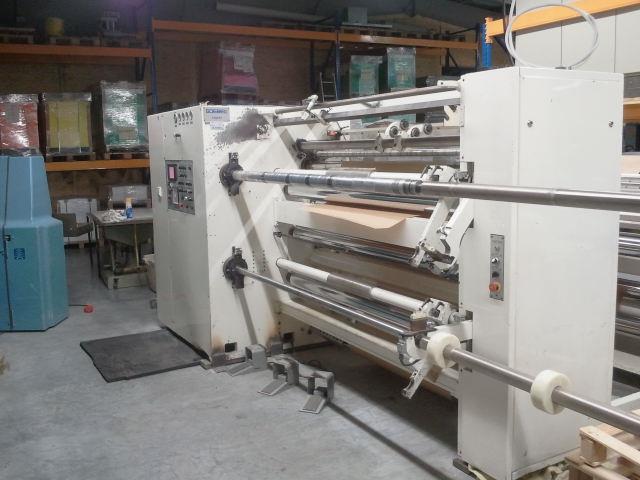

Type of Machine: Goebel Super F
Year of manufacture: 1993
Material: surface sensitive materials, f.e. paper between 30 und 300
gsm, x-ray films-, films and foils
Working width: ca. 1800 mm
Rewind stations: 2 Core diameter: 50 mm
Diameter unwinding: 1400 mm max
Weight unwinding: 3000 Kg max
Diameter rewinding: 400 mm max.
Width rewinding: 1800 mm max, daughterreels to be taken with helping
shafts 75 mm min, daughterreels to be taken with helping shafts Speed:
200 m/min max.
Voltage supply: 220 / 380 V/50 Hz
Total voltage connection: 40 KVA
Air connection: 6 bar
Length: 4575 mm
Widht: 3800 mm
Hight: 2000 mm
Total weight: ca. 12 to
Dokumentation: complete

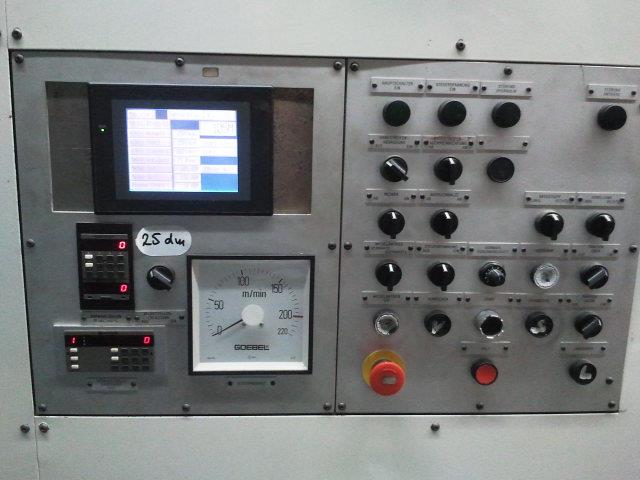

Other: New controlpanel (Touchscreen) & controller in 2010
