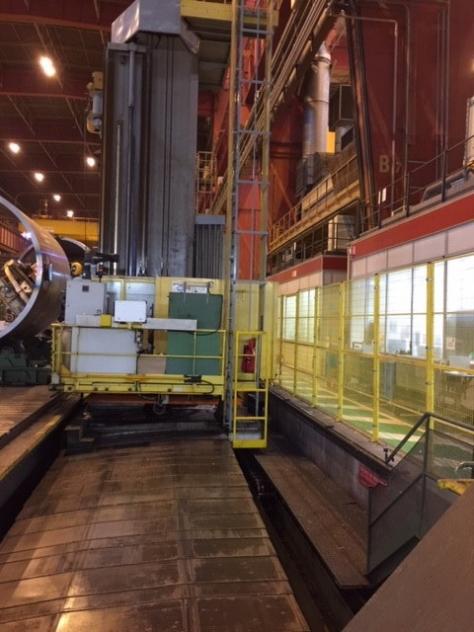

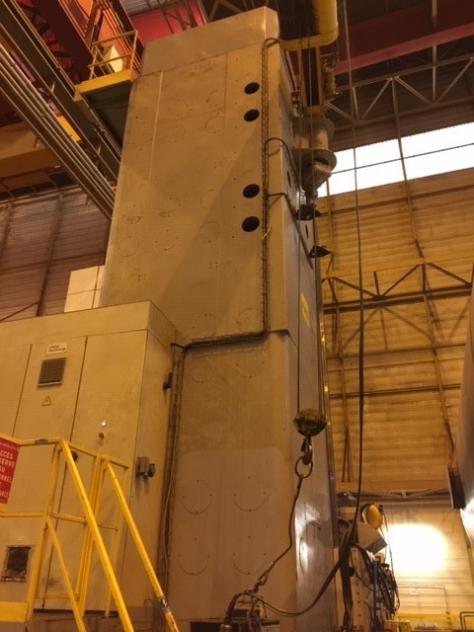

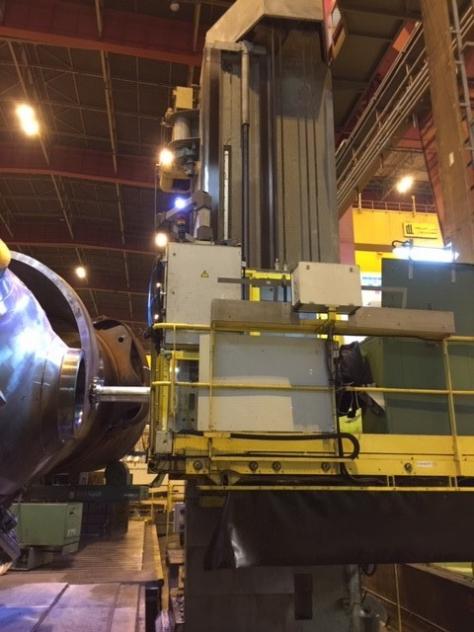

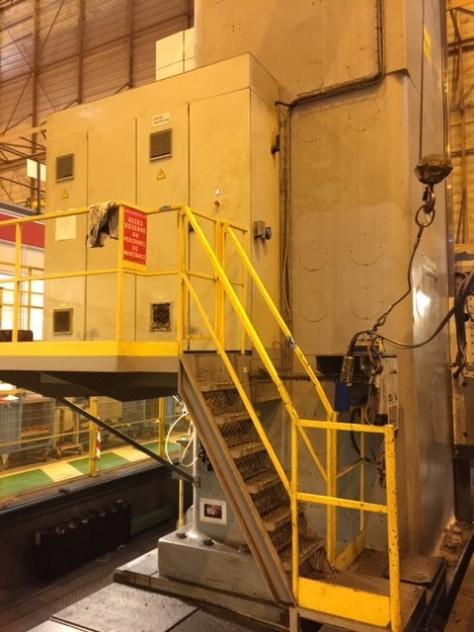

CNC Bohrwerke H. ERNAULT-SOMUA 270/175

Retrofitted in 2005 Electrical / CNC control Siemens 840D
Retrofitted in 2012 and 2019 Mechanical was made.

Technical Datas:

Spindle rotation speed: 1,25 – 600 tr/min
Max. power spindle: 55 kW 215 tr/min

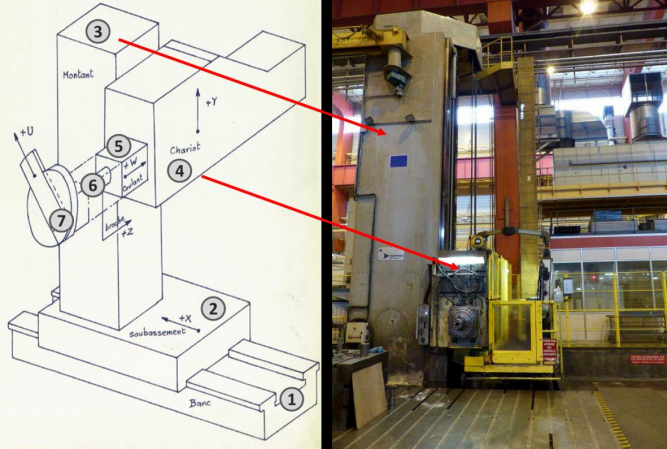

Horizontal run of the upright on the bench – X 15.000/30.000 mm
X Travel 30.000mm is for both machine
Vertical stroke of carriage on upright - Y (mm) 5.600 mm
Spindle stroke – Z: 1.100 mm
Flowing stroke - W: 1.100 mm
Advance – X: 3-5.000 mm/min
Feed – Y: 3-5.000 mm/min
Feedrate – Z: 1,5-2.500 mm/min
Total weight: 100.000 kg

Foundation pit approx. for both machine
Length x Width x Height: 40.000x5.000x1.800 mm


All accessories are available and can be sold at extra costs.

For both machines are the following attachments available:

• Chip conveyor

For both machines including lubrication
and coolend unit for the cutting operation

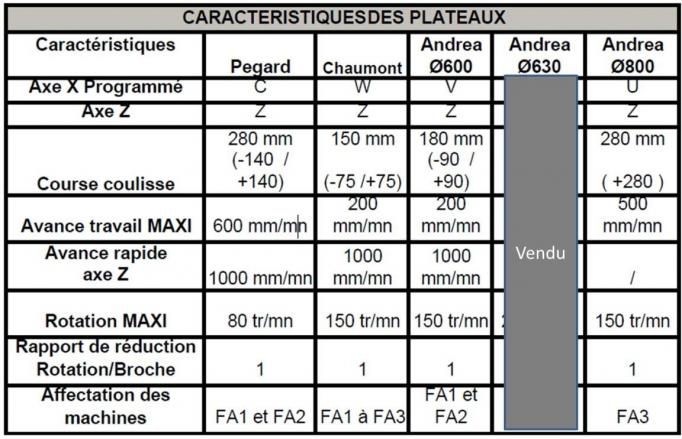

• PEGARD tray, numbered 0440030015,see specifications in the table below
• CHAUMONT tray - PC, numbered 0440030025, see table below
• ANDREA 600 tray - PA2, numbered XXXX, see table below
• ANDREA 800 - PA3 tray, numbered 0440030054, see table below

Verkäufer Angebot Nr. resale 05685
