Sammelhefter HOHNER HSB 10000-S

Fully automatic Saddle stitcher
Configuration:
Fully automatic from feeder to trimmer
• 1 cover folder feeder
• 1 horizontal sheet feeder

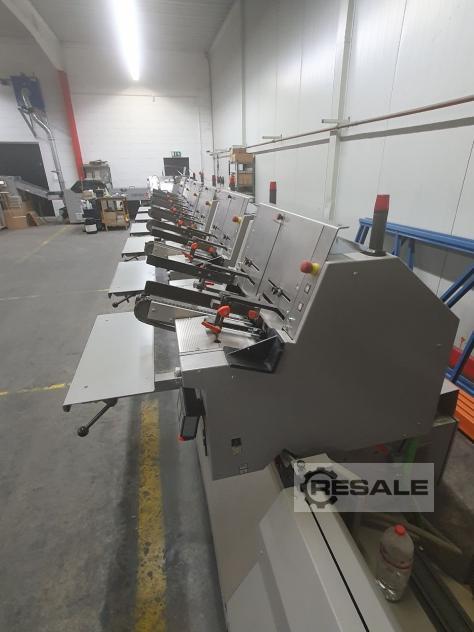

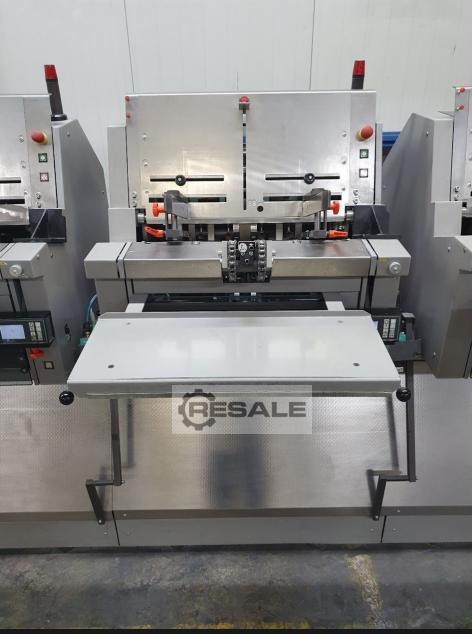

• 6 vertical sheet feeders

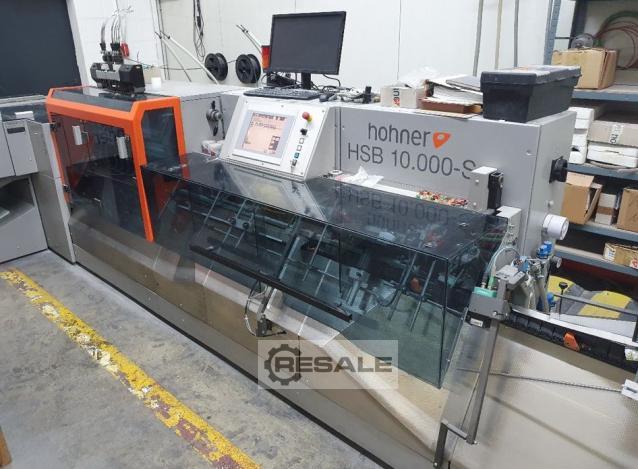

• Control panel with main operating point

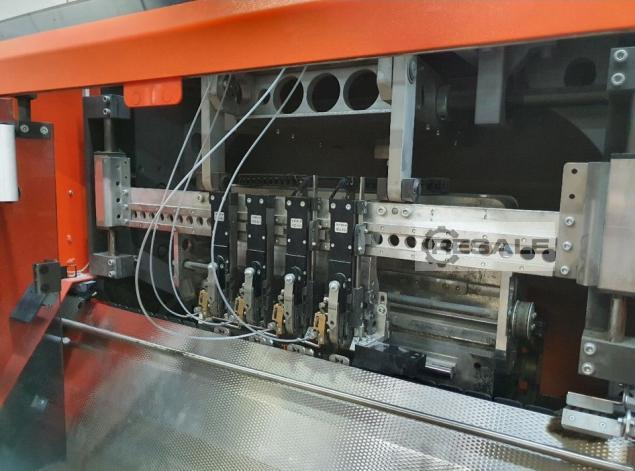

• Stitching machine with wire feed gear
• Trimmer with trimmer feed

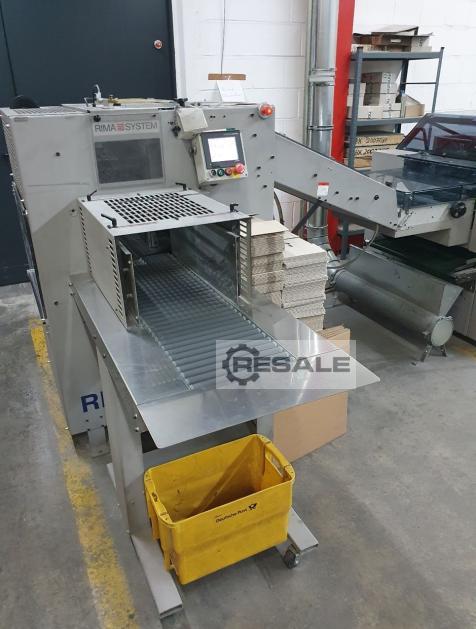

• Compensating stacker RIMA RS-14
Technical specifications:
Maximum format untrimmed 320 - 350 x 460 mm
Maximum trimmed format 340 x 450 mm
Maximum cutting thickness (single use) 12 mm
Max. cutting thickness (double use) 1/2x punch knife width
Maximum staple thickness 6 mm
Maximum trimming Front trimming 50 mm
Maximum trimming head and foot trimming 50 mm
Stitching heads max. 4 Hohner narrow stitching heads
Max. staple length of the vertical feeders approx. 250 mm (depending on the paper)
Arch opening vacuum suction cups
at least 6 mm rear fold, 8 mm front fold,
Sheet opening gripper max. 20 mm front or rear fold
Speed 2000 - 10000 products/h
Mains voltage 400V 3~
Mains frequency 50/60 Hz
Power consumption, max. approx. 15 kW
hedging 32 A
Verkäufer Angebot Nr. resale 159905769
