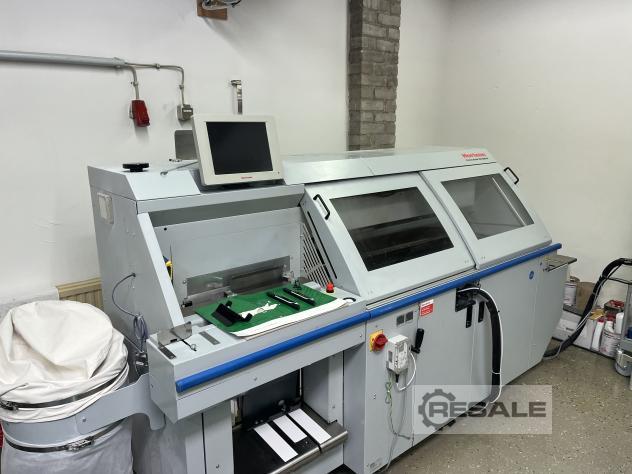

Bindemaschinen HORIZON BQ 280

HORIZON BQ 280

YEAR: 2013
COUNTER: APPROX. 700.000


– 1 CLAMP PERFECT BINDER
- CLAMPS: 1
- SPINE GLUING: PUR
- GLUE REFILL: BY PRE MELTER
- SIGHT GLUING: HOTMELT
- BOOK BLOCK THICKNESS: INTEGRATED MONITORING STATION (OUTSIDE THE CLAMP)

- MILLING SECTION: WITH EXTRACTION
- MILLING DEPTH: ADJUSTABLE
- COVER FEEDER: SUCTION DRUM FEEDER WITH 4X SCORING
- TECHNOLOGY: TOUCH & WORK
- SAVEABLE JOBS: 200 MEMORIES FOR REPEAT ORDERS


- SHEET SIZE: MAX: 385 X 320 MM; MIN: 135 X 105 MM
- COVER SIZE: MAX. 660 X 385MM; MIN. 240 X 135MM
- BOOK THICKNESS: MAX. 50MM; MIN. 1MM
- COVER WEIGHT RANGE: 90 - 300 G/SQM
- COVER PILE HIGHT: MAX. 70MM
- SPEED: MAX. 500 CYCLES/H


- DIMENSIONS: 3.055 X 905 X 1.520MM
- POWER: 400V/ 50HZ - 2,7KW
- WEIGHT: 900KG
