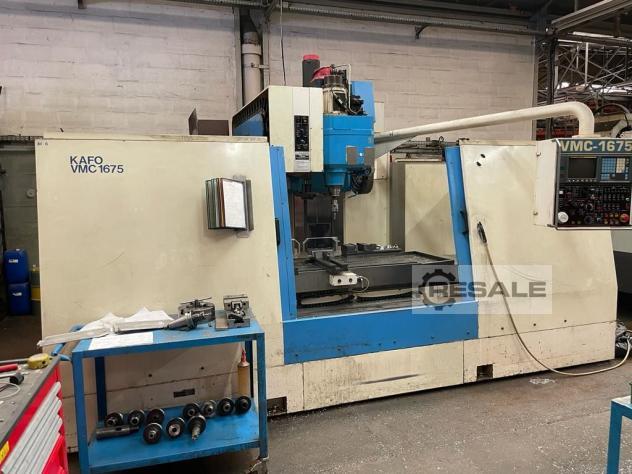

CNC Bearbeitungszentren KAFO WMC 1675

x-Weg:1650 mm

y-Weg:850 mm

z-Weg:790 mm

Machine-Details
Stock-No. 1105-03958
Type of machine Machining Center - Vertical

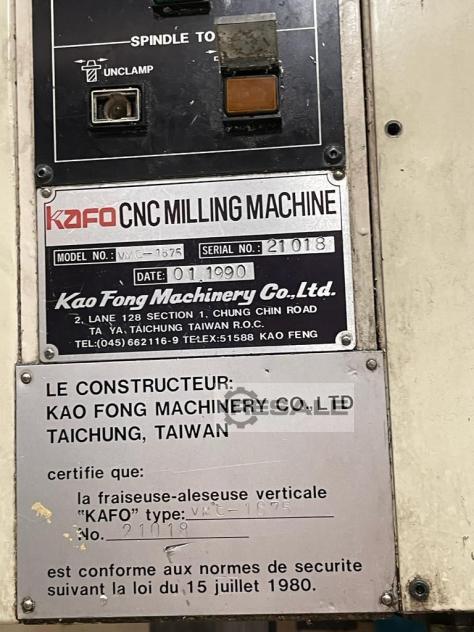

Make kafo
Type WMC 1675
Year of manufacture 1990
Type of control CNC
Storage location HAGUENAU FRANCE
Country of origin Taiwan
Delivery time CALL ME
Freight basis EX WORK
Price

Technical details
x-travel 1650 mm
y-travel 850 mm
z-travel 790 mm
dist. milling spindle - table surface 150 - 760 mm
Table dimensions 1900 X 850 mm
table load capacity 1500 kg
spindle motor 15 kW
spindle speed: 6000 2 STEEP
spindle taper BT 40
rapid traverse 20 m/min
tool change unit 24 places
weight of tools max. 14 kg

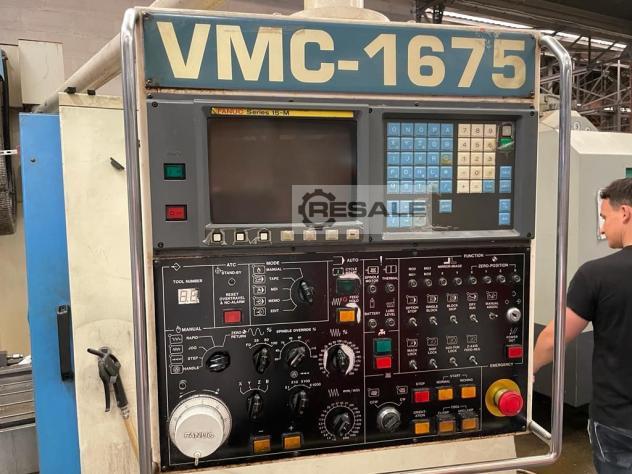

CNC Controller: Fanuc 15M
total power requirement 30 KVA
weight of the machine ca. 14 t
Additional information
- In Excellent condition
- With machien documents
- Rigid taping
-fanuc oM
Verkäufer Angebot Nr. resale 162906136
