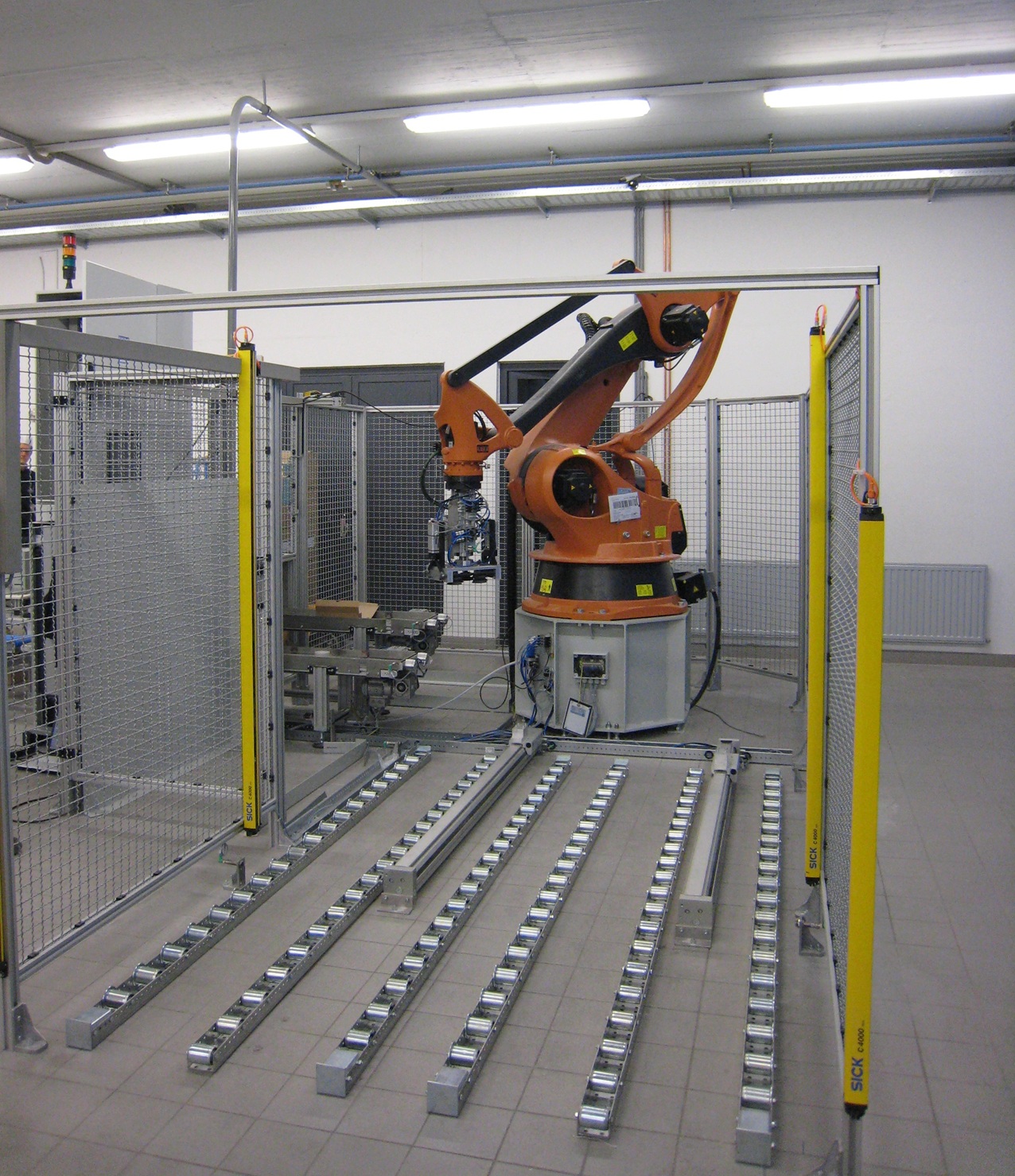

Roboter KUKA KR 100-2 PA

Manufacturer: KUKA

Model: KR 100-2 PA

Year of Manufacture: 2009

Weight: 1240 KG

Work Area Dimensions:

- A: 2,180 mm
- B: 3,037 mm
- C: 3,200 mm
- D: 2,160 mm
- E: 1,040 mm
- F: 1,350 mm

Total Volume: 72.7 m³

Techincal Details:

- Maximum Reach: 3,200 mm
- Payload Capacity: 100 kg
- Additional Load on Arm/Swing/Carousel: 50 kg / ~200 kg
- Maximum Arm & Swing Load: 50 kg
- Total Maximum Load Capacity: 350 kg
- Number of Axes: 4
- Mounting Position: Floor-mounted
- Design: Standard
- Position Repeatability: ±0.25 mm
- Path Accuracy: Not specified

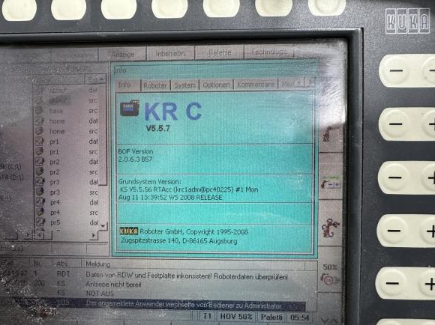

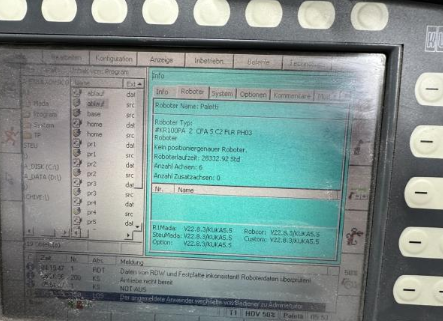

- Controller: KUKA KRC2 Edition 2005
- Weight (Without Controller): Approx. 1,200 kg
- Operating Temperature Range: +10°C to +55°C
- Protection Class: IP65 (Dust & Water Resistant)
- Installation Footprint: 1,006 mm × 1,006 mm
- Power Supply Requirement: 13.5 kVA
- Noise Level: < 75 dB
