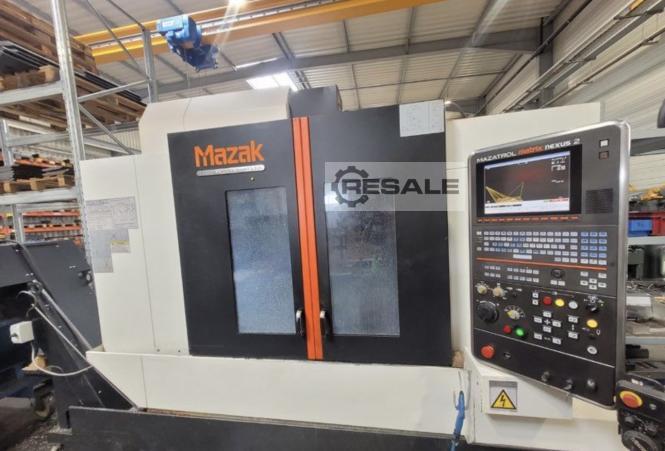

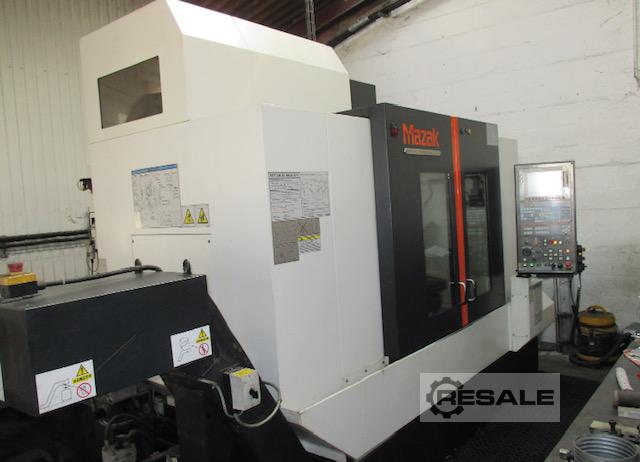

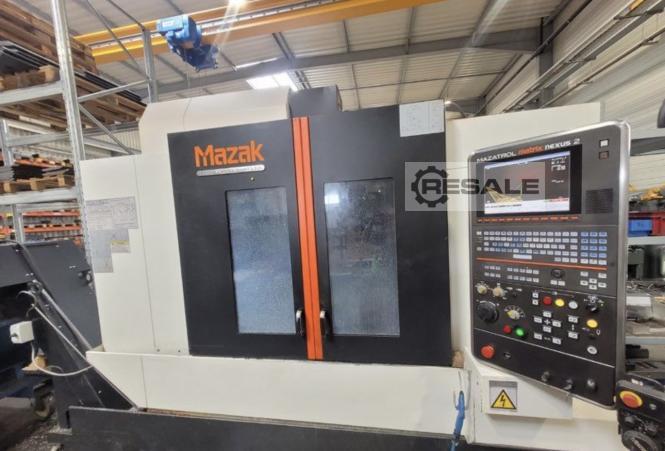

CNC Bearbeitungszentren MAZAK 530 C II

Machine-Details
Stock-No. 1105-03904
Type of machine Machining Center - Vertical
Make MAZAK
Type VCS 530 C II
Year of manufacture 2014
Type of control CNC
Storage location FRANKREICH
Country of origin JAPAN
Delivery time immediately
Freight basis EX WORKS

Technical details
x-travel 1740 mm
y-travel 530 mm
z-travel 510 mm
control MATRIX 2
Table dimensions 2 350 X 500 mm
distance spindle nose and table 180 - 690 mm
distance spindle center to column: 610 mm
table load 1200 kg
rapid travel x/y/z 42 m/min
feed range 1 - 8000 mm/min
turning speed range: 40 - 12000 min-1
spindle taper CAT 40
tool magazin: 30 Plätze
Tool diameter 80 mm
workpiece weight max. 8 kg
tool length - max. 350 mm
connected load 40 kVA
voltage 400 / 50 V / Hz
Additional information
VERY NICE MACHINE WITH CONVOYER

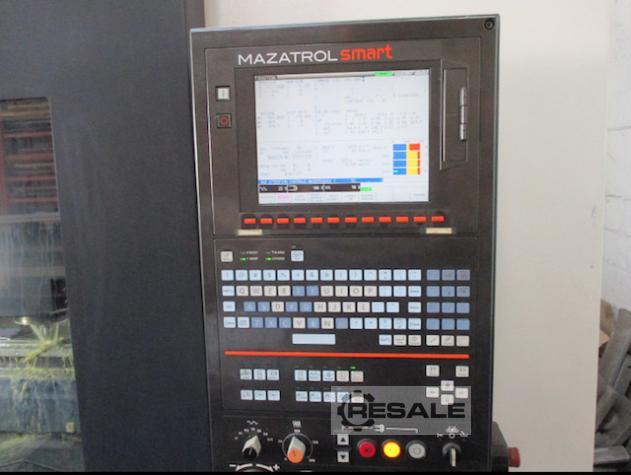

WITH CONTROL MAZAK MATRIX 2
COOLING TROUGHT THE SPINDEL


Verkäufer Angebot Nr. resale 162241749
