CNC Drehzentren MAZAK INTEGREX i-400

Drehdurchmesser:658 mm

Drehlänge:1519 mm

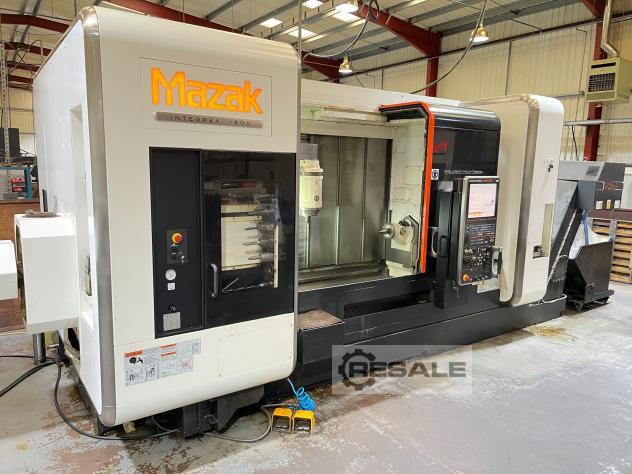

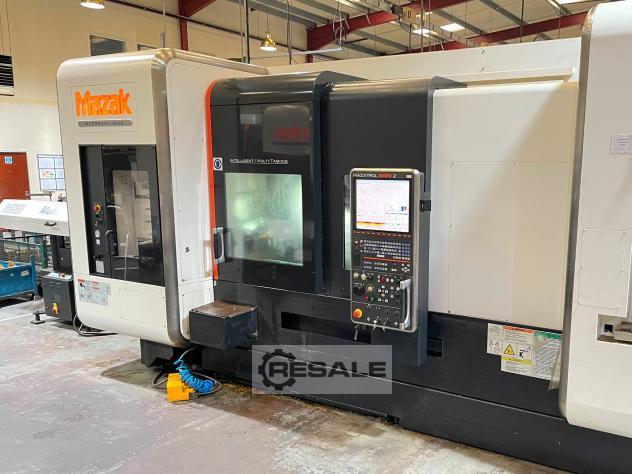

1 off CNC Turning/Milling Center

Mazak Integrex i-400 x 1500U

Mfg. Year. 09-2014

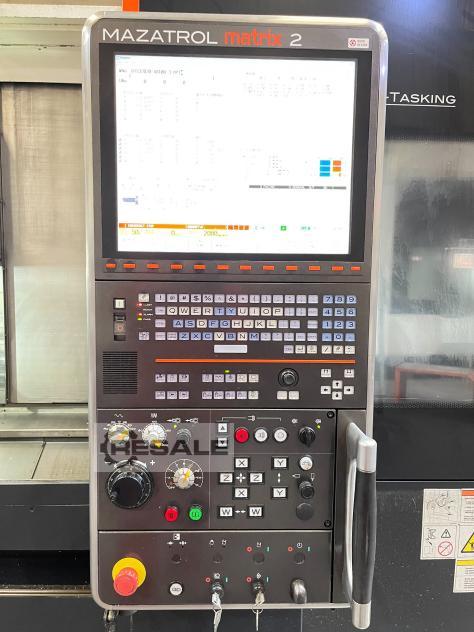

Mazatrol Matrix 2

Max. Turning diameter 658 mm

Max. Turning length 1.519 mm

Movements:

X-axis: 615 mm

Y-axis: 250 mm

Z-axis: 1.585 mm

B-axis: -30° -210°

Power output main spindle: 30 kW

Spindelnose main spindle: A2-8

Max. spindle speed Mainspindle: 3.300 rpm

Max. Bar capacity: 102 mm

C-axis: 0.0001°

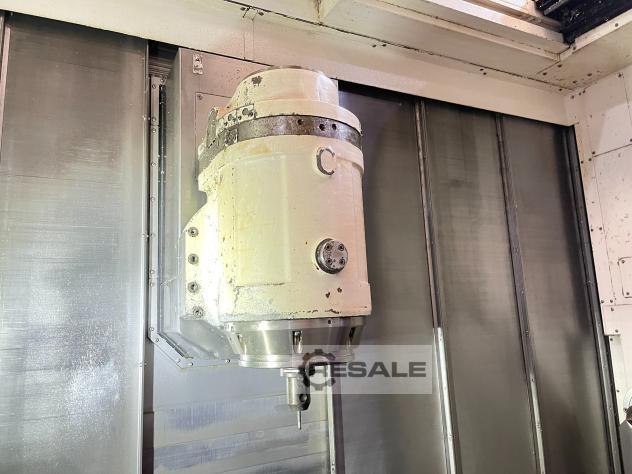

Power output milling spindle 22 kW

Millingspindle Capto C6

Max. spindle speed: 12.000 rpm

B-axis: 0,0001°

ATC for 36 tools

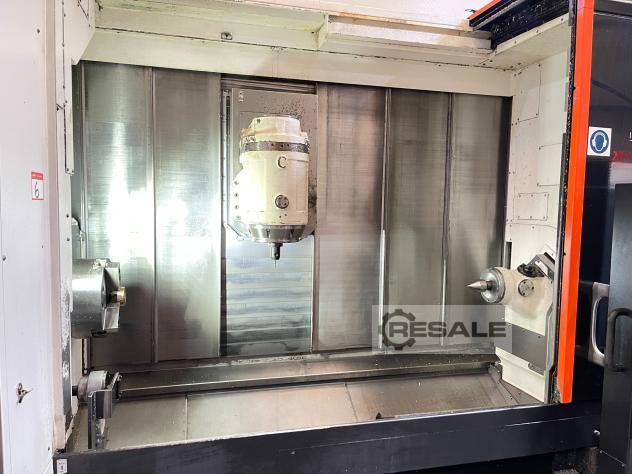

NC-controlled tailstock MT, movement: 1.562 mm

Coolant th. milling spindle

Swarfconveyor with filtration, Cromar

High pressure pump

Automatic tooleye

Automatic parts catcher

Interface for barfeeder

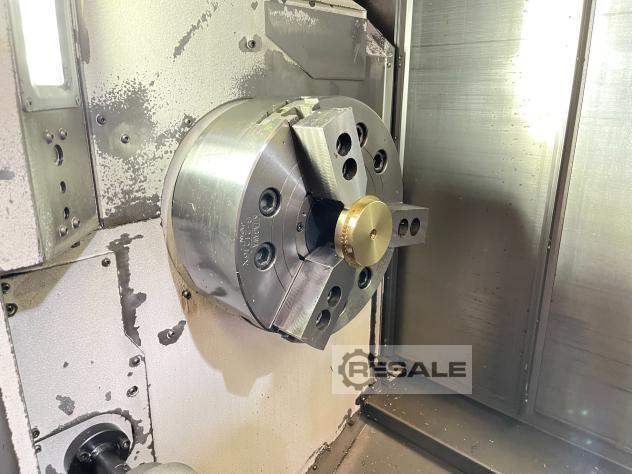

3-jawchuck, Kitagawa B212 15X

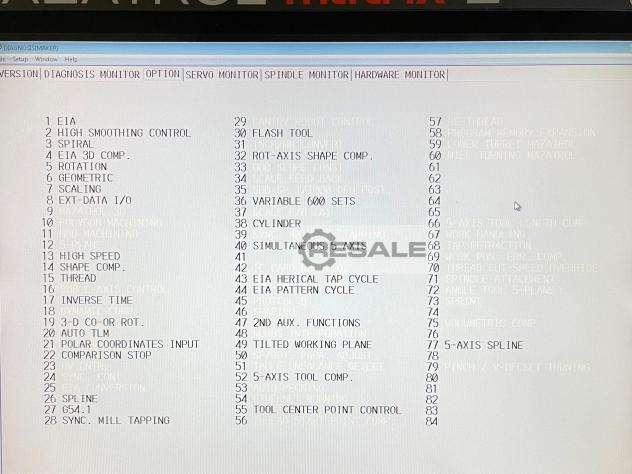

5-axis simultaneous

Fine Spline-Interpolation

Cylinder interpolation

5-axis Spline Interpolation

Synch. Mill tapping

Shape compensation for rotary axis

Flashtool function



Dimensions L/B/H 5.200 mm/ 2.800 mm/ 2.720 mm

Weight 15.500 kg

CE-Mark

Documentation

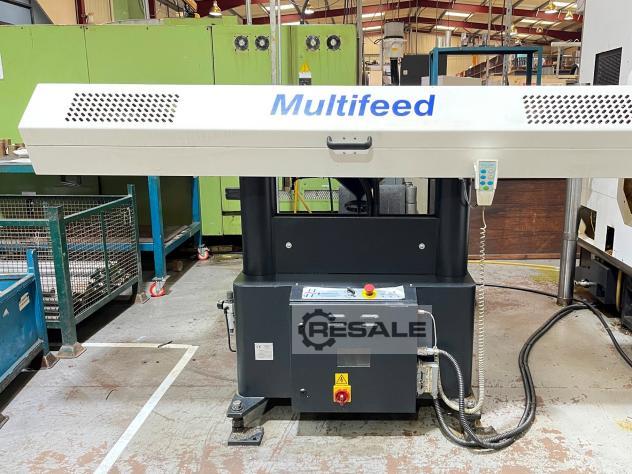

1 off. barfeeder, Hydrafeed Multifeed MX2, mfg. year 2014

Verkäufer Angebot Nr. resale 23010
