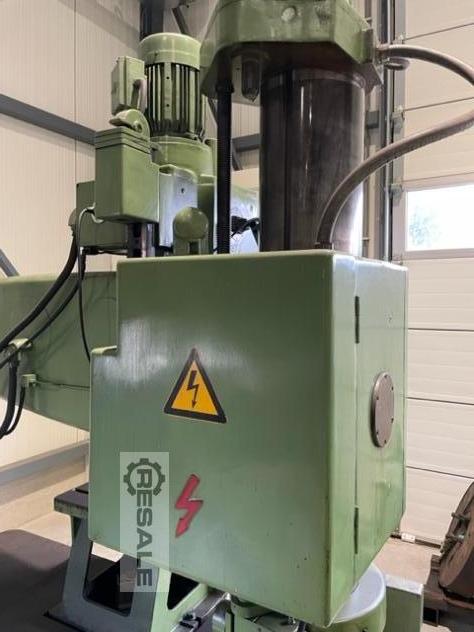

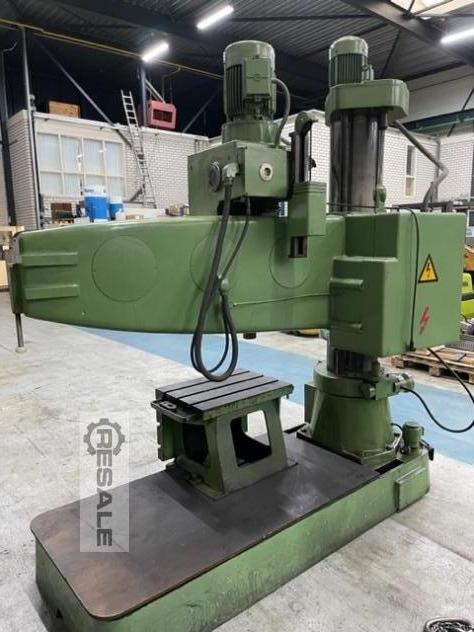

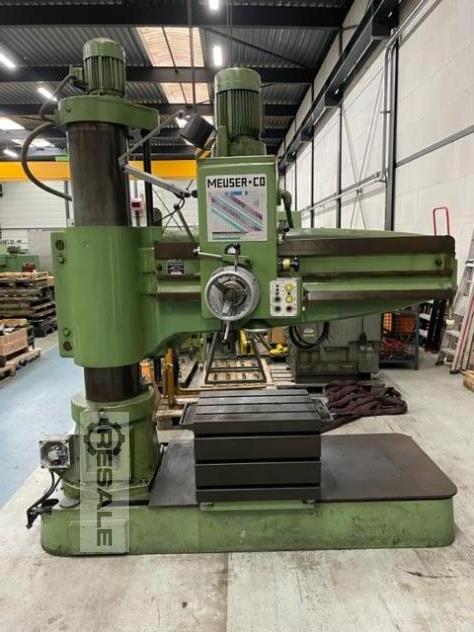

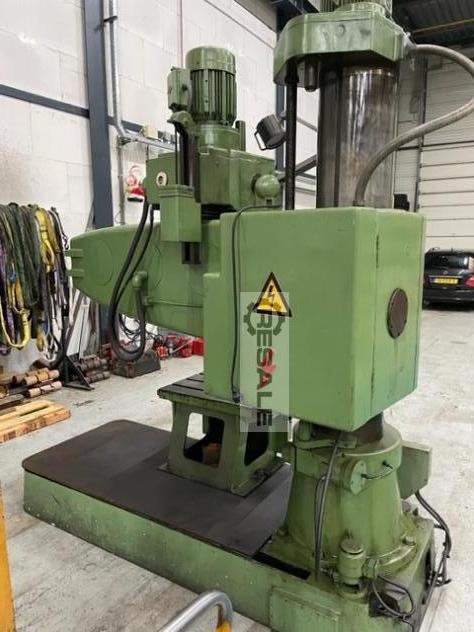

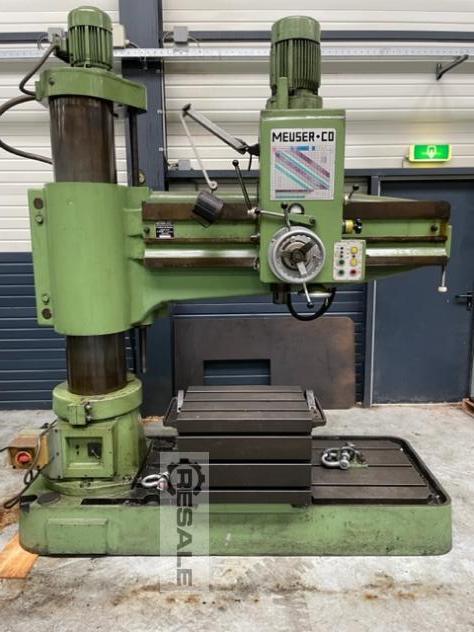

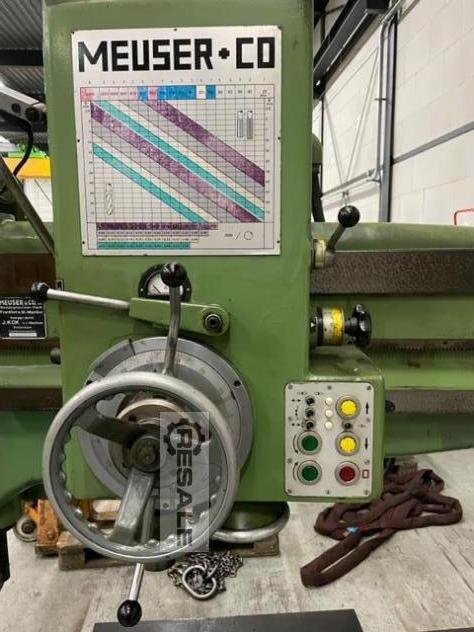

Radialbohrmaschinen MEUSER + CO M 50 R x 1500 mm

Bohrleistung in Stahl (Durchmesser):50 mm

Ausladung:1500 mm

Werkstückhöhe - max.:1400 mm

Code 231017


Description Radial drilling machine

Make MEUSER + CO

Modell M 50 R

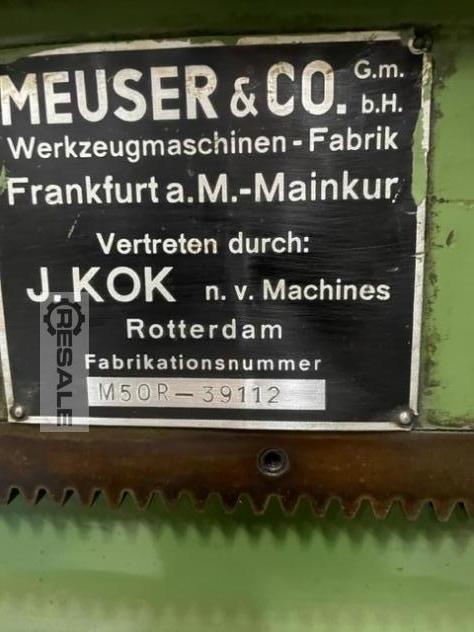

Serial No. 39112

Year


Capacity in Steel 60 50 mm
Capacity in Cast Iron 60 mm
Thread cutting in Steel 60 M 45
Thread cutting in Cast Iron M 55
Spindle taper 5 MC
Spindle radius: max / min 1700 / 600 mm
Spindle traverse 1100 mm
Min / Max height spindle / top of base plate 500 / 1400 mm
Arm traverse 600 mm
Quill stroke 310 mm

Number of speeds 18
Spindle speed range 25 – 2000 rpm
Number of spindle feeds 14
Spindle feed range 0,06 – 0,80 mm/rev

Baseplate size 2400 x 860 mm
Clampsurface base plate 1700 x 860 mm



Main motor 5 kW - 380 Volts

Dimension of machine 2400 x 1100 x 2800 (3100) mm ( L x W x H )
Weight 4070 kg

Accessoiries Box 650 x 500 x500 mm
Coolant
Hydraulic clamping

Conditon Machine is in very good and nice condition

Verkäufer Angebot Nr. resale 231017
