x-Weg:600 mm
y-Weg:450 mm
z-Weg:450 mm
achine-Details
Stock-No. 1105-04026
Type of machine Machining Center - Universal
Make MIKRON AGIE CHARMILLES
Type UCP 600 Vario
Year of manufacture 2006
Type of control CNC
Storage location LAGER
Country of origin Switzerland
Delivery time to be agreed
Freight basis ex site
Price
Technical details
x-travel 600 mm
y-travel 450 mm
z-travel 450 mm
control iTNC 530 Heidenhain
turning speed range - main spindle max. 24.000 min/-1
power capacity - main spindel 30 kW
max. Torque 91 Nm
tool taper HSK-A63
surface area Ø 156 mm
swivellable B: -101 / +45 °
rotatable C: 360 °
table speed 200 min/-1
max. workpiece sizes Ø 350 x 450 mm
max. workpiece weight 80,0 kg
numbers of pallets 10
number of toolpositions 30 pos.
Max. mould width 80 / (125) mm
max. tool length 200 mm
change time < 3,0 sec
max. tool weight 6 kg
max. total weight 80 kg
rapid traverse 22 m/min
Rapid B-Axis 80 min/-1
rapid traverse C-axis 200 min/-1
feed speeds max. 15.000 mm/min
total power requirement 16 kW
weight of the machine ca. 7 t
dimensions of the machine ca. 5,0 x 4,0 x 2,7 m
Accessories
Documents
Automatic Tool Changer 30 pos.
Coolantsystem
hydraulic system
direkt probing XYZ

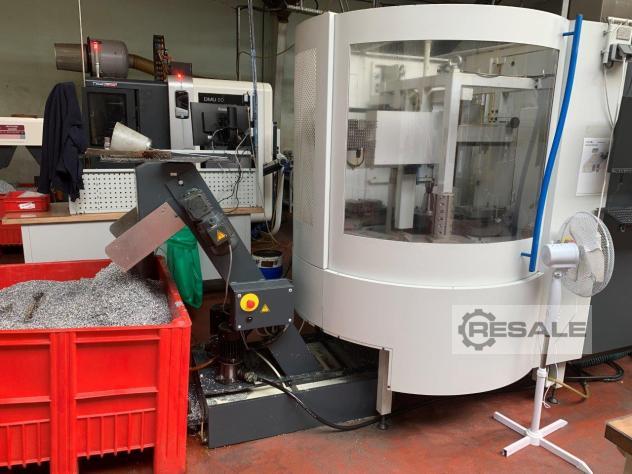

Chip conveyor

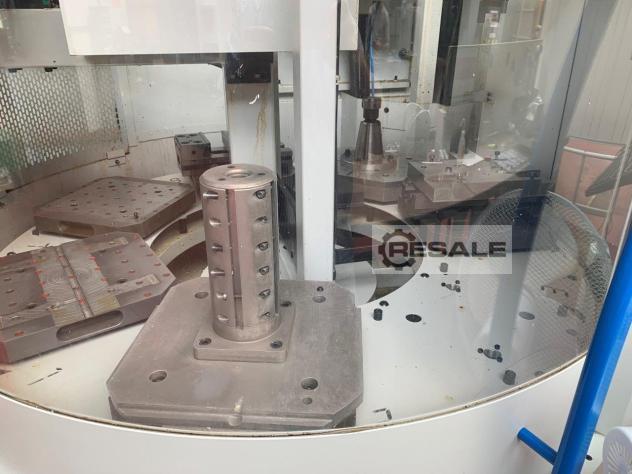

pallet changer 10 X
Additional information

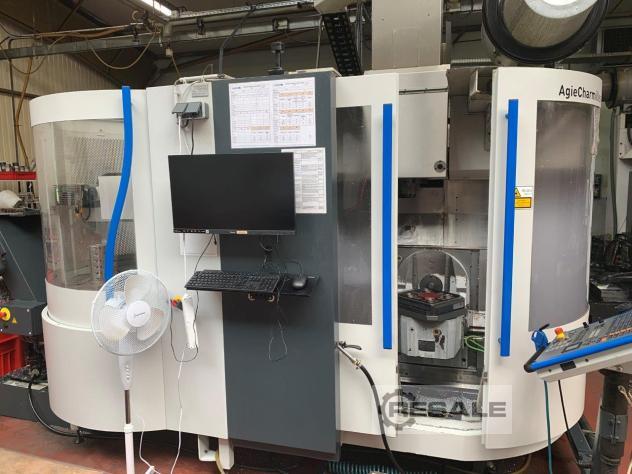

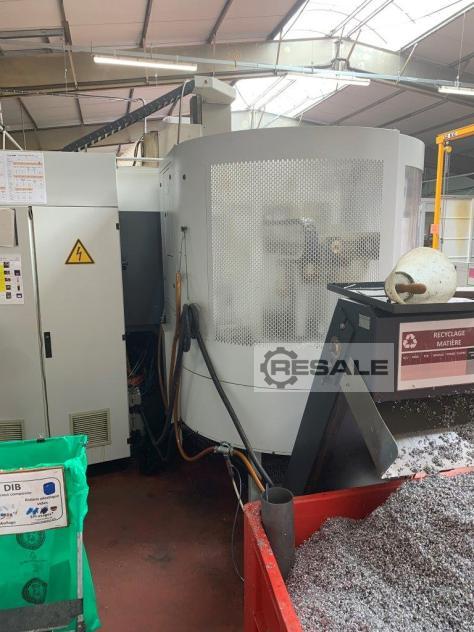

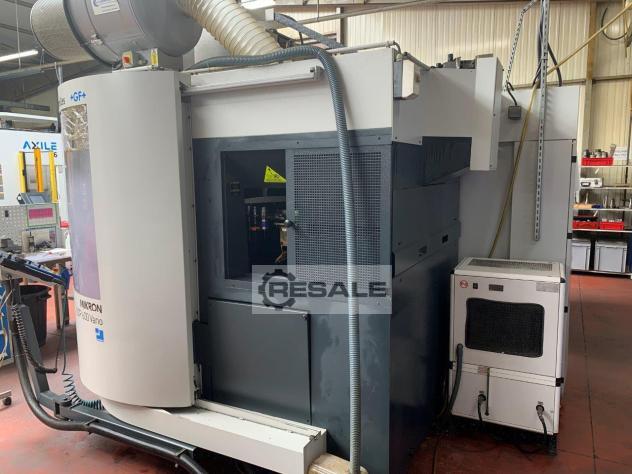

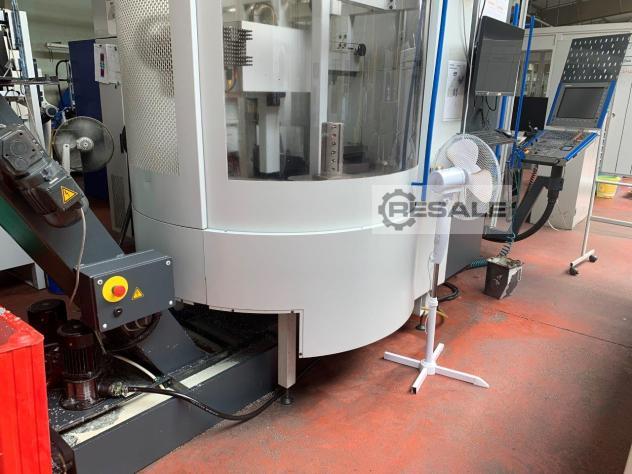

5 Axis - CNC - Machining-Center Universal

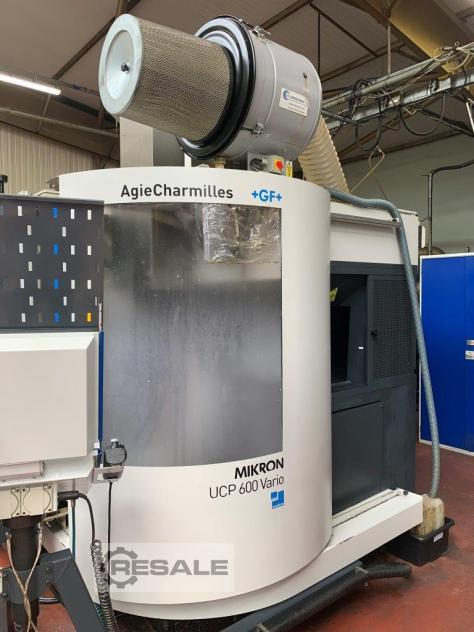

MIKRON AGIE CHARMILLES - UCP 600 Vario
- Swivel-Rotary-Table
- refurbished in 2017
- incl. 7 PALETTE AUTAMATITATION
