CNC Drehzentren MORI SEIKI nl 2500/700

Drehdurchmesser:356 mm

Drehlänge:705 mm

Machine-Details
Stock-No. 1105-03951
Type of machine CNC Lathe
Make MORI SEIKI
Type NL 2500 /700
Year of manufacture 2006
Type of control CNC
Storage location HAGUENAU
Country of origin Japan
Delivery time to be agreed
Freight basis ex site

Technical details
turning diameter 356 mm
turning length 705 mm

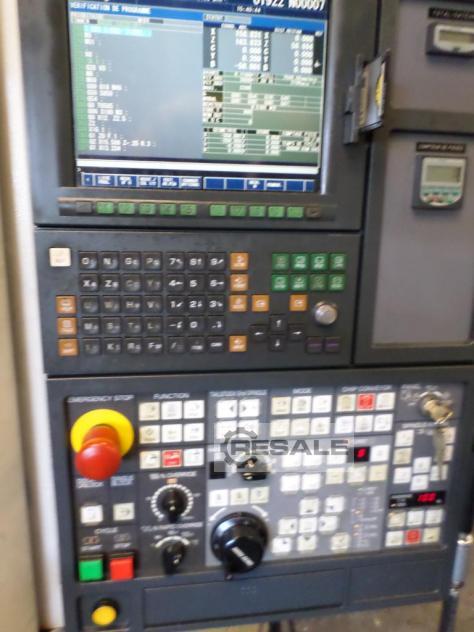

control MSX-850 II MAPPS
x-axis 260 mm
z-axis 795 mm
power capacity - main spindel 18,5/15 kW
Speed Mainspindle 3300 min/-1
spindle bore 91 mm
spindle nose JIS A2-8
chuck Kitagawa B-212A8 mm
max. chuck pressure 3,1 MPa

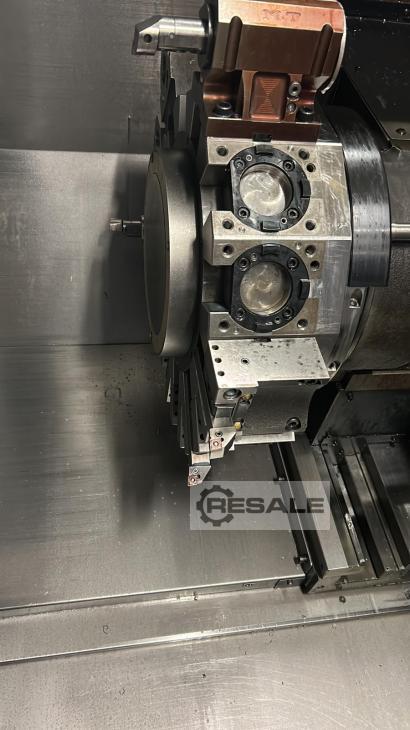

number of toolpositions 12 pos.
Shank diameter 50 mm
Shank height for square tool 25 mm
turret change time 0,25 sec.
rapid power traverse in X-and Z direction 30 m/min
rapid travel tail stock 7 m/min
total power requirement 27,6 kW
weight of the machine ca. 5,8 t
dimensions of the machine ca. 3,1 x 2 x 2,2 m
Accessories
Documents
Chip conveyor
Coolantsystem
Signal-Light
Additional information

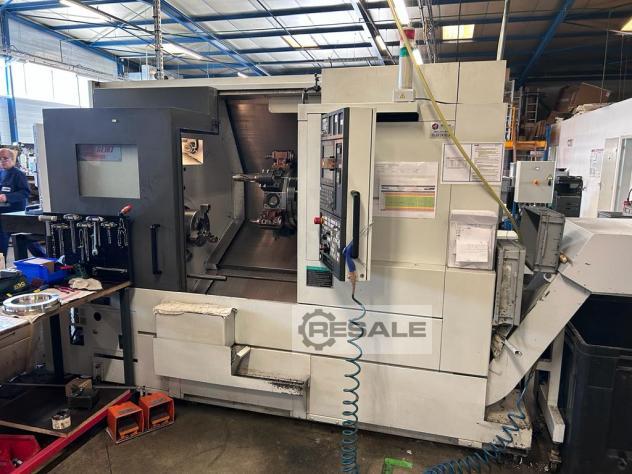

Mori Seiki NL 2500 /700

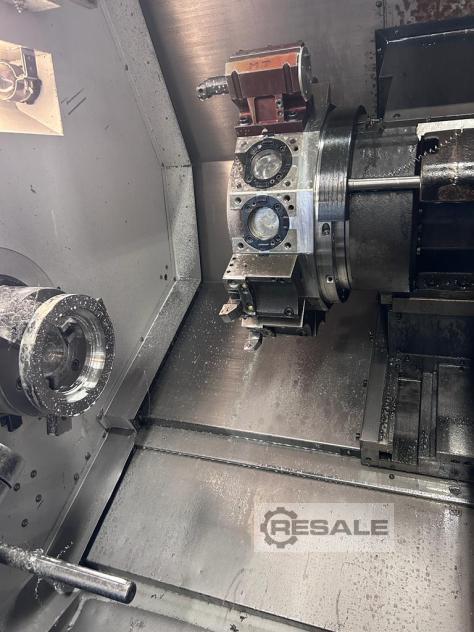

cnc lathe with c axis and live tools

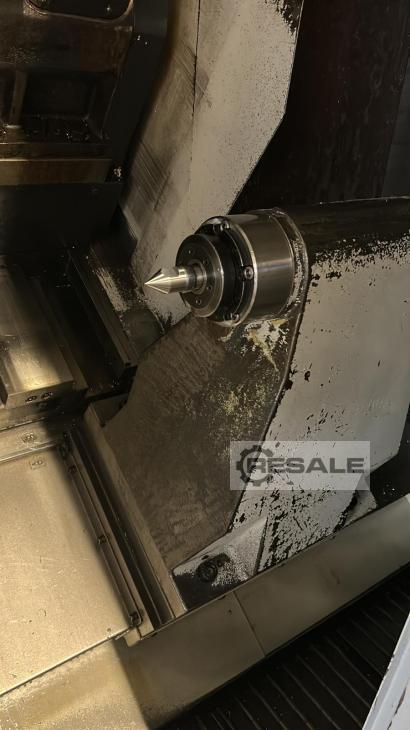

with tailstock + 3jaw chuck
chip convoyer
