CNC Bearbeitungszentren MORI SEIKI SH 400

x-Weg:560 mm

y-Weg:510 mm

z-Weg:510 mm

Machine-Details
Stock-No. 1105-03918

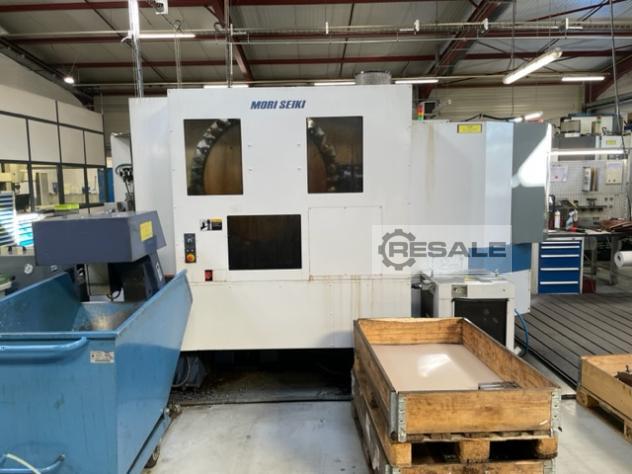

Type of machine Machining Center - Horizontal
Make MORI SEIKI
Type SH 400
Year of manufacture 1997
Type of control CNC
Storage location HAGUENAU FRANCE
Country of origin Japan
Delivery time immediately
Freight basis EX WORK
Price

Technical details
x-travel 560 mm
y-travel 510 mm
z-travel 510 mm

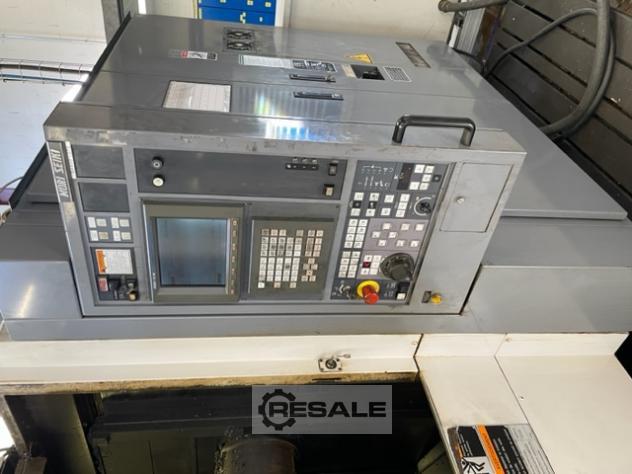

control Fanuc MSC 502 (Fanuc 16i)
spindle speeds 10000 U/min
spindle drive 22 kW
rapid travel x/y/z 32 mm/min
Number of tool station 60 SK40
Pallet dimension 2 x 400x400 mm
table load 0,5 t
working diameter max. 580 mm
table index 1 °
total power requirement 56 kVA
weight of the machine ca. 8,7 t
dimensions of the machine ca. 2,9x4,1 m
Accessories

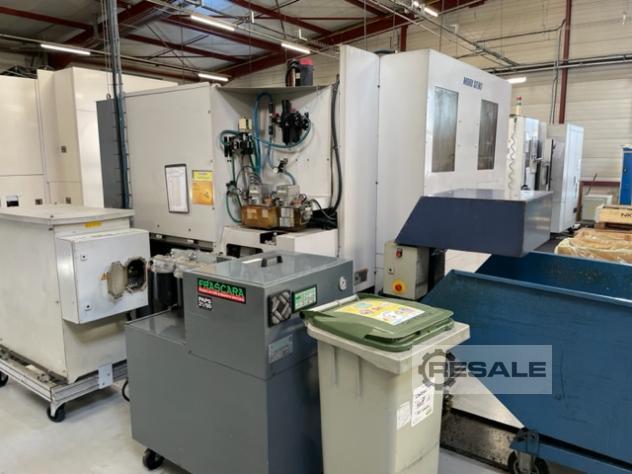

Chip conveyor
Coolant Gun
Coolant shower
No. of tool offset pairs 200
Probe for tool breakage and length measuring
Tool life management
offsets for parts 56
High speed countour control
M-Functions 5
Warm up cycle
Macro B
Interface for coolant through the spindle
Additional information
Control Fanuc MSC 516 MB, 40 tool stations, prepared for trough spindle coolant, 4th axis, Chipconveyor, 2 Palettchanger
COOLING THROUGH THR SPINDEL 40 BARS
