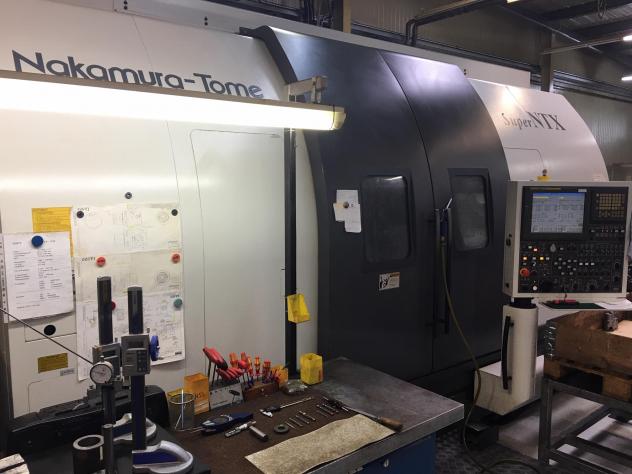

CNC Drehzentren NAKAMURA SUPER NTX-S

CNC Multitasking Lathe
NAKAMURA SUPER NTX-S
Reference No.: 18038
Mfg. year 2007
S/No. V300901

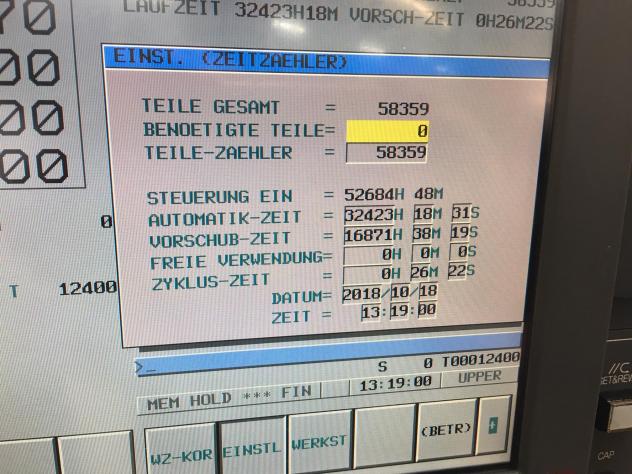

Fanuc 16i-TB
Luckbei-Dialog System Supercap
Max. turning diameter
– Upper turret 390 mm
– Lower turret 300 mm
Max. turning length 1.100 mm
Max. bar working capacity 65 mm

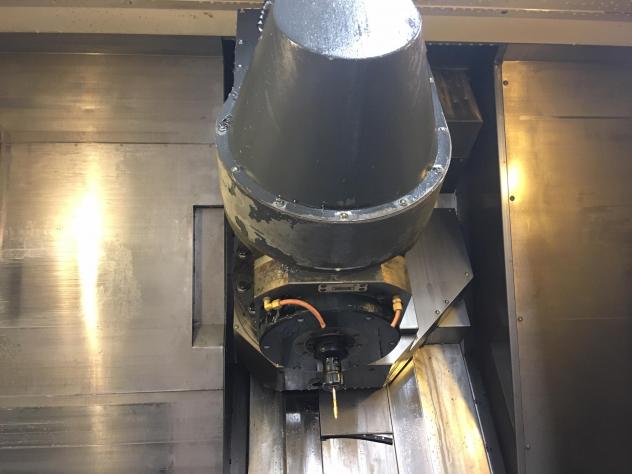

Milling spindle AC 18.5/11 kW
Milling spindle Max. speed 12.000 rpm
Capto C6
Servo controlled B-Axis, 230°
Y-Axis 160 mm
ATC with 40 tools

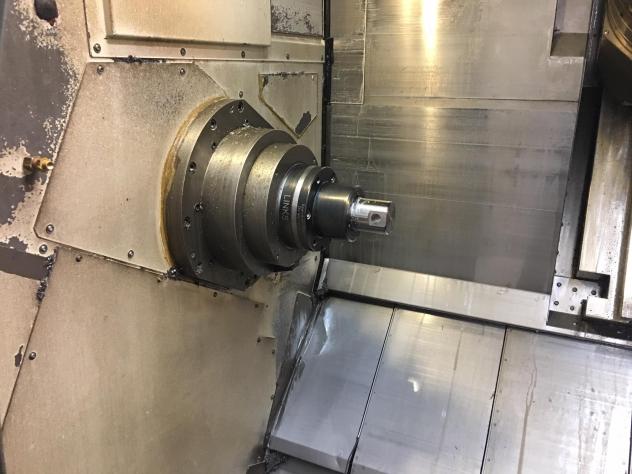

Main and sub spindle AC 22/18,5 kW
Main and sub spindle max. speed 4.500 rpm

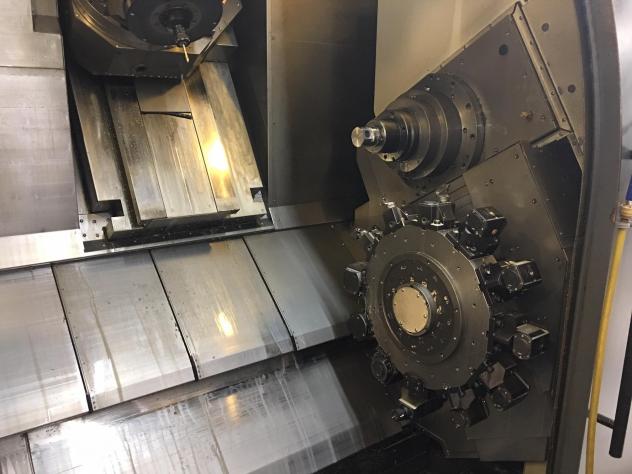

12/24-station turret, all stations for driven tools
Max. speed driven tools 3.600 rpm
2 off. 3-jawchuck 210 mm, Schunk

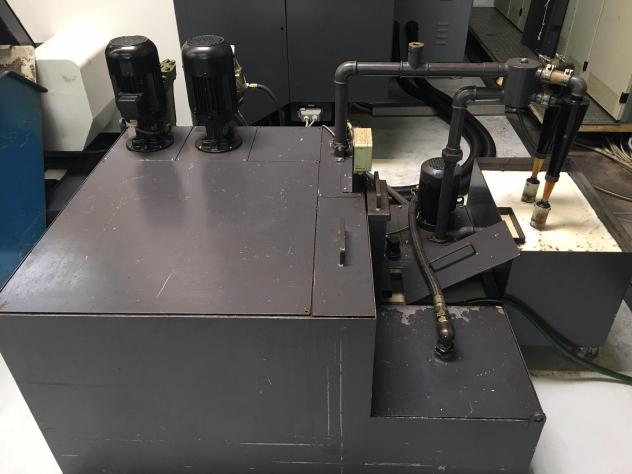

Coolant tank 250 Liter
High pressure pumps
Swarf conveyor
1 set of toolholders for lower turret
– 9 static, 3 driven
weight 19.000 kg
CE-mark
Verkäufer Angebot Nr. resale 18038
