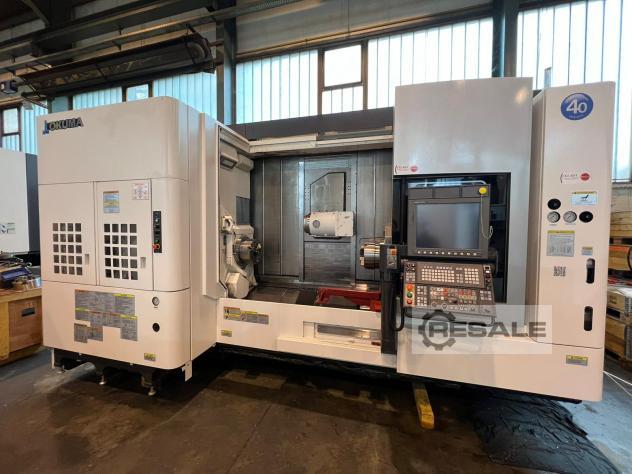

CNC Drehzentren OKUMA MULTUS U4000

Drehlänge:1500 mm

OKUMA MULTUS U4000 1SW 1500
mfg. Year 2016, Installed 2018
OSP P300S control
Movements:
X-axis: 695 mm
Y-axis: 300 mm
Z-axis: 1.600 mm
W-axis: 1.554 mm
B-axis: -30° to +210°
max. Turning diameter: 650 mm
Big Bore main spindle 32/22 kW, spindle nose A2-11
max. speed: 3.000 rpm
Big Bore sub spindlel 32/22 kW, spindle nose A2-11
max. speed: 3.000 rpm
Milling spindle 22 kW, max. speed: 12.000 rpm
Full B-axis
Tool magazine for 80 tools
High accuracy option C-axis on main and sub spindle
Hydraulic steady rest, SMW Autoblok K4
- clamping range: 30-245 mm
Preparation for Multitool
Renishaw System, RMP60 probe
Renishaw TRS2 Tool Breakage detection
swarf conveyor Mayfran MT10
20 bar high pressure pump
API Library 2
One-Touch IGF Advance M-D Kit
Helical turning function
Z-axis automatic zero point offset by touch sensor main and sub spindle
C-axis automatic zero offset by touch sensor main and sub spindle
Air blow over spindle cleaning
CAS anti-collision control
Structure thermal drift control (TAS-C) and spindle line (TAS-S)
Simultaneous 5-axis kit
- Super-Nurbs
- Tool center point control II
- Inverse time feed
- DNC-DT
- Tool posture command
- Herical cutting
- slope machining
Gear machining package
- Skyving
- Hobbing

Verkäufer Angebot Nr. resale 23049
