Bohrwerke OM TMD-30/40

OM Vertical Turnmill TMD-30/40 with 2 x crossrail mounted Vertical rams + C-Axis + Milling spindle

New 1990 / Retrofit in 2020 from Fanuc 15T to Siemens 840D

Control Siemens 840 D

Table diameter 3000 mm
Turning diameter 4000 mm
Turning height 3000 mm
Table load max. 40 ton

Distance between table & crossrail max. 3400 mm

Ram horizontal travel (X) 2200 mm
Ram vertical travel (Z) 2000 mm (right ram),1600 mm (left ram)
Crossrail travel 2400 mm

Table speed 0.4 ~ 60 rpm
Table motor 55 KW
Max. torque 10,000 kgM
Table index C-Axis 0.001degree

Milling spindle speed 3 ~ 750 rpm
Spindle taper ISO 50
Milling spindle power 18.5 KW
Milling feed 1 ~ 180 deg/min.

Ram section 260 x 260 mm ( right ram ), 250 x 250 mm ( left ram )

Tool shank size 50 x 50 mm

Machine dimension (L,W) 14,700 x 10,500 mm

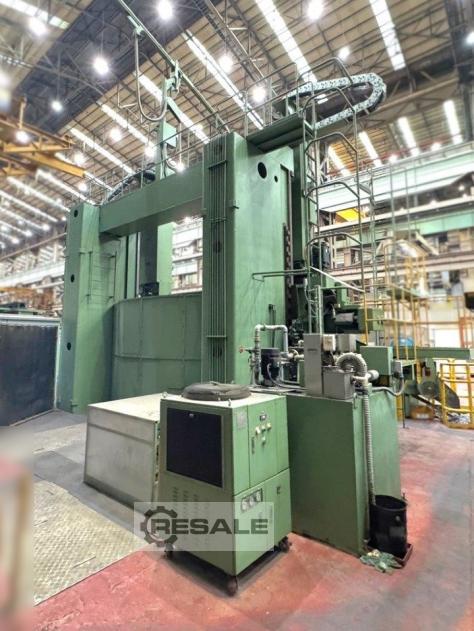

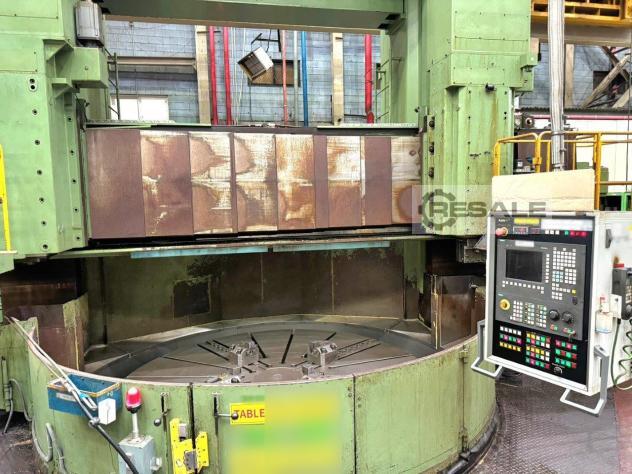

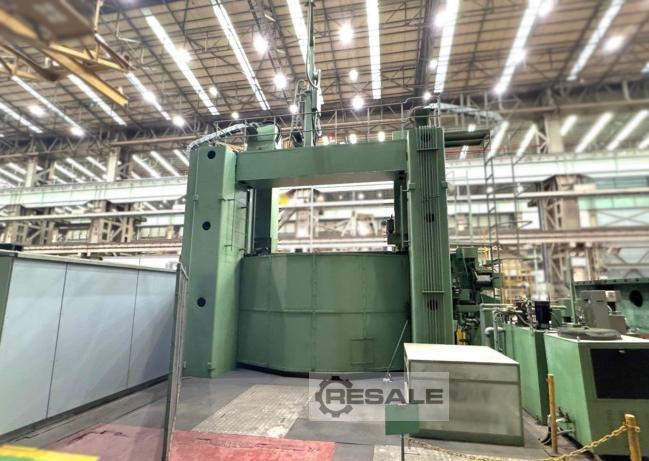

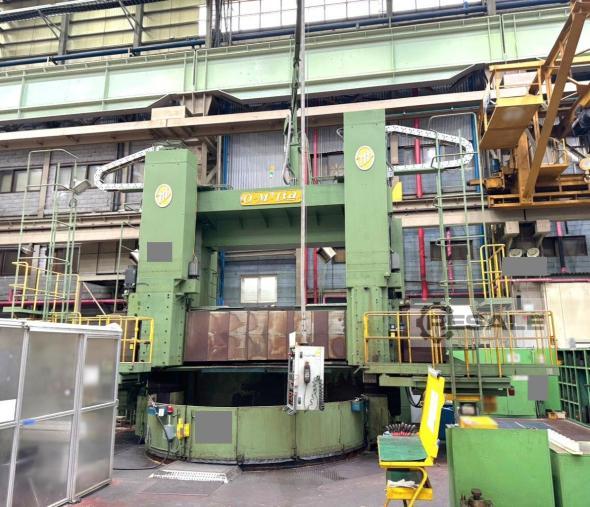

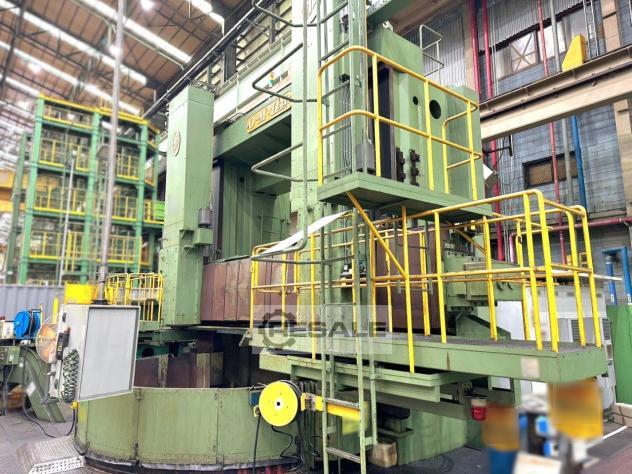

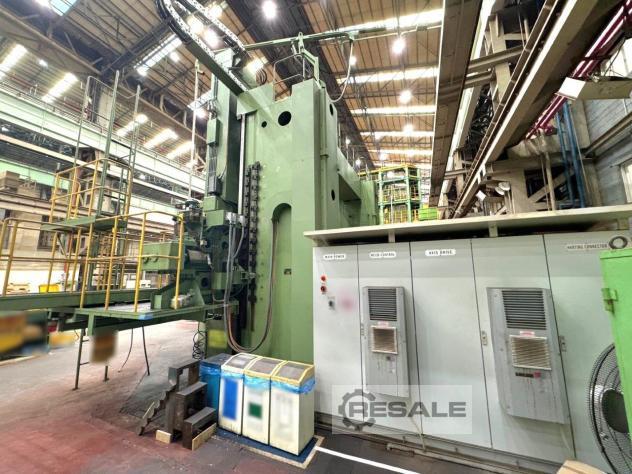

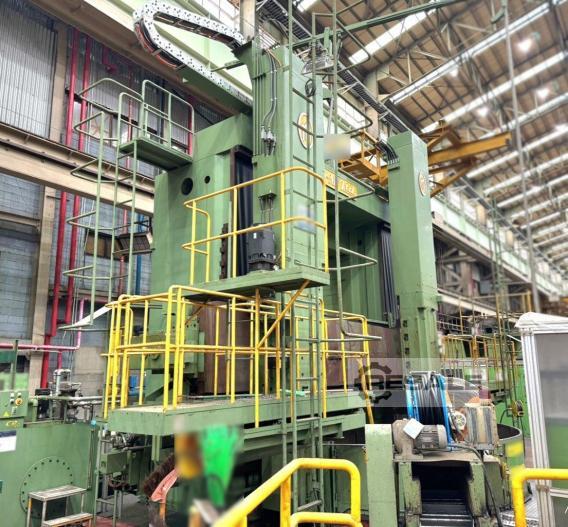

Condition said to be very good (please see attached photos).

In plant under power.

Available end September 2024

Proposal Number V(K)-6912
