Schweiß- Putzlinie bestehend aus Hollinger + Rotox

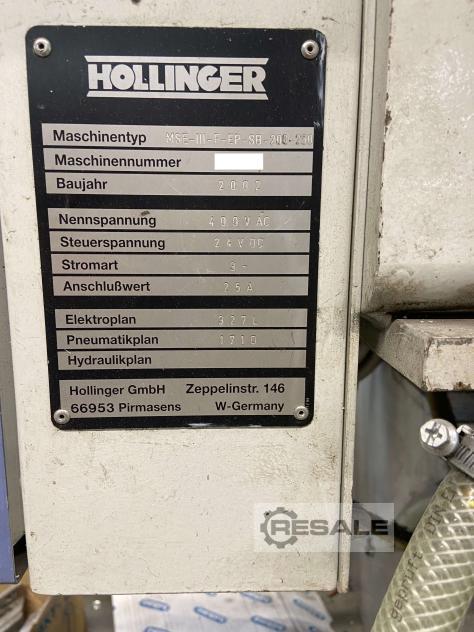

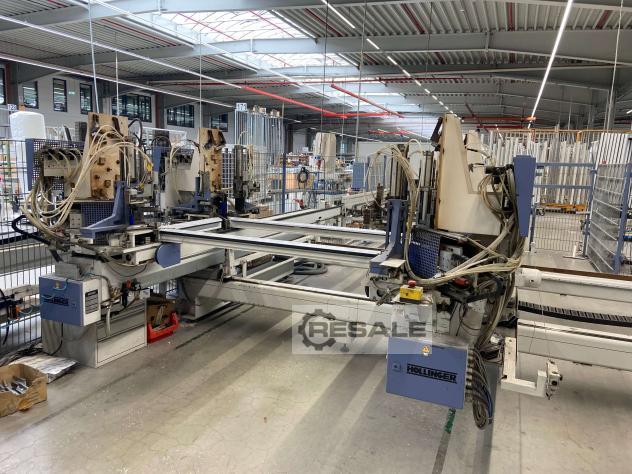

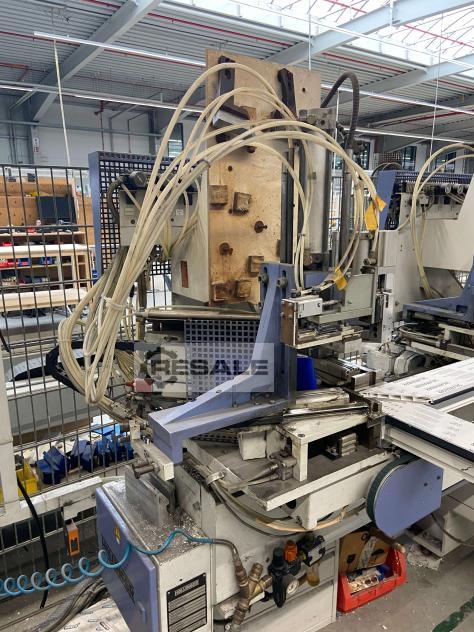

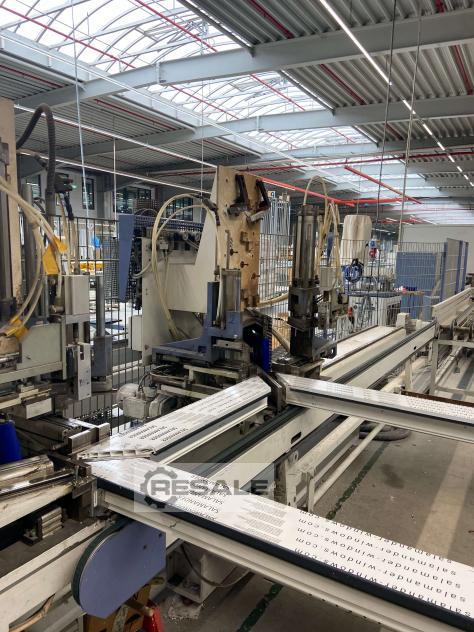

Hollinger is equipped with:
- All welding times can be set according to profile.
- Welding accuracy of 0.2 mm to external dimensions.
- Heated clamping plates with interchangeable limiting knives on the
welding mirrors.
- Automatically movable limiting dimensions (white 1.2 mm, coloured
0.5 mm).
- Allowances with adjustable sealing knives.
- Shaping and cutting gasket moulds for shaping the inside corners.
- Smallest welding dimension small with thicker allowances 330 x 500
mm.
- Largest welding dimension 3800 x 3300mm.
- The heads retract to insert the profiles.
- Set to 5 mm burn-off (each side 2.5 mm).
- Windows 2000

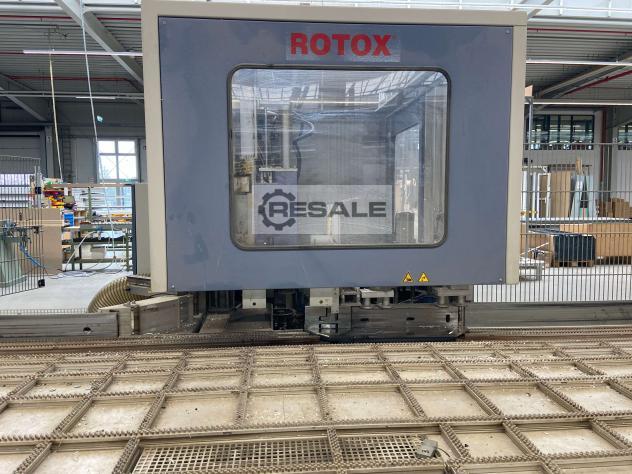

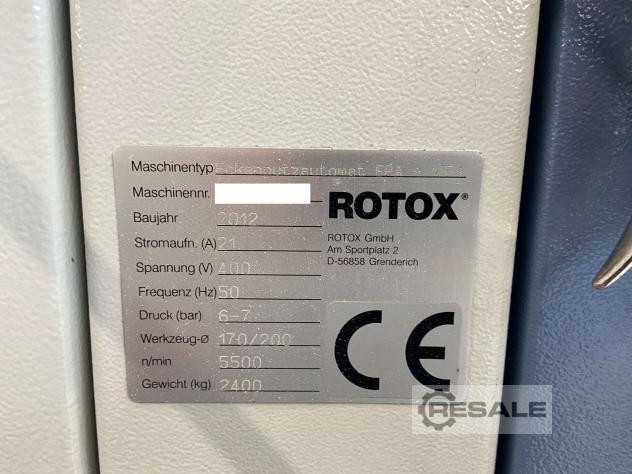

Rotox is equipped with:
- Four-axis cleaner for fast cleaning.
- Automatic turning station with a gripper arm for gentle turning of
large, heavy elements.
- Automatic turning up to 3,000 x 3,000 mm.
- Manual operation without plasterer for small elements or U-frames.

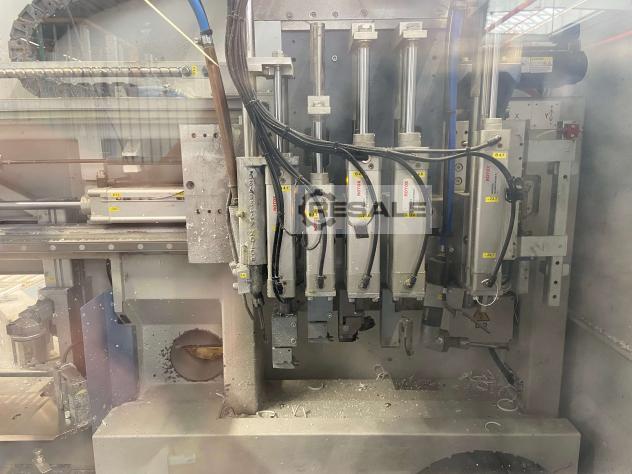

Tool carrier at the top:
- Sealing groove cutter.
- V-groove scraper blade.
- Pull-off knife 3 mm groove.
- Inside corner cutter normal overhang.
- Inside corner cutter round projection.
- Inside corner cutter with groove.
- Horizontal seal recess for centre seal.
Tool carrier at the bottom:
- Pull-off blade V-groove.
- Puller blade 3 mm groove.
- Gasket groove cutter.
- Inside corner cutter normal projection.
- Inside corner cutter Round protrusion.
- Puller blade half face offset.
- Outer contour disc for the outer corners.
