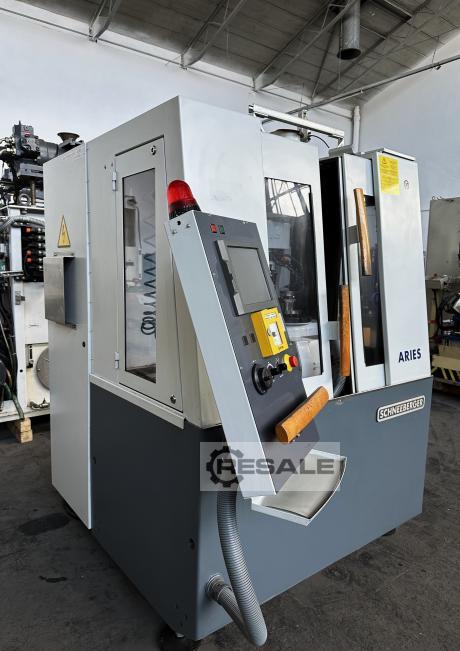

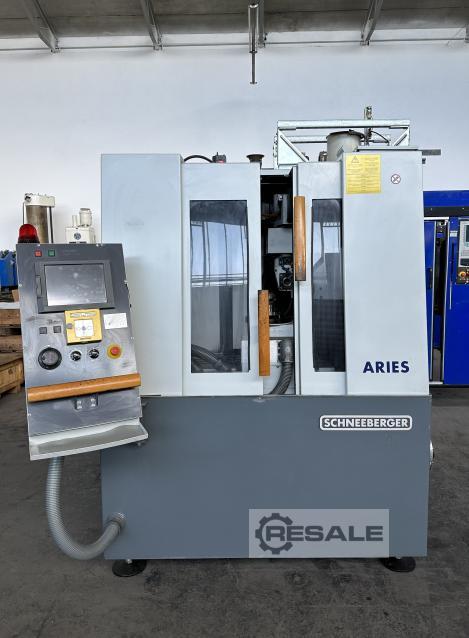

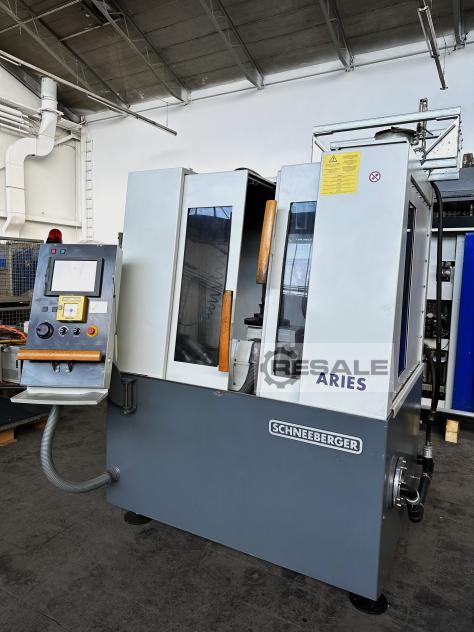

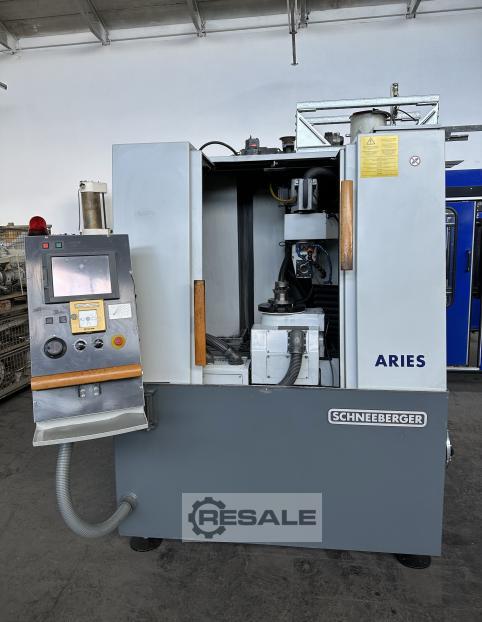

Schneeberger Aries ENP4 CNC Präzisions Werkzeug Schleifmaschine
Hersteller [manufacturer]: Schneeberger
Typ [ type]: Aries ENP4
Steuerung [control unit]: Fanuc Steuerung, 2 CNC-Achsen, simultane
Interpolation
10,4″ LCD-Farb-Touchscreen, RS232
Baujahr[construction year]: 10/2008
Tool and cutter grinder
Hinweis: Ideal für Werkzeugbau und das Schärfen
Optimaler Schleifer zum Nuten, Umfangs-, Flanken-, Vorder-, Hinter-
und Flankenflächen
Achsen
Längsweg X mm 400 (CNC)
Querweg Y mm 260 (CNC)
Vertikaler Verfahrweg Z mm 300 (CNC)
Werkstückdrehung A Grad frei (CNC)
C-Achse, manuell, Positionsanzeige in der Steuereinheit integriert.
Auflösung des Messsystems: 0,001°, Schleifkopf ±180° drehbar
Spitzenhöhe mm 210
Landekegel ISO50
Spindel
Antriebsleistung kW 2,2 / 7,5

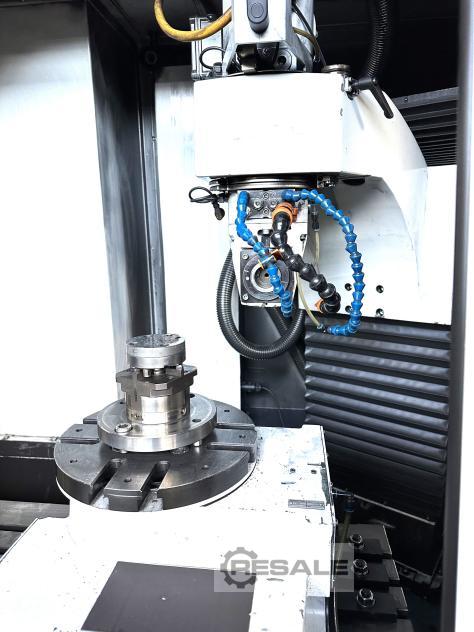

Doppelspindel HSK 50 - (2 + 2 Schleifscheiben)
Spindeldrehzahl 1/min 9000
Schleifscheibendurchmesser mm Ø 50 mm – Ø 200 mm
Schleifscheibenaufsatz für HSK50
Gewicht [weight]: 2.500kg
Raumbedarf [needed space ]ca. (B x T x H): 2,3m x 2,3m x 2,3m
Vollständige Dokumentation ist vorhanden.
Besichtigung unter Strom kann kurzfristig erfolgen.
Für weitere Fragen stehen wir Ihnen gerne zur Verfügung.
Preis, ab Lager hier zzgl. MwSt.
Zustand: gut - vorführbereit
A SCHNEEBERGER ARIES ENP 4 tool and cutter grinder is a versatile
grinding machine used to manufacture a variety of cutting tools.
Simultaneously movable multi axes of the table and wheels allow the
machine to cut multiple tool geometries. End mills, step drills,
countersinks, taps, cutters, broaches, hog mills and reamers can all
be produced on a tool and cutter grinder. Both High speed metals (HSS)
and tungsten carbide (WC) can be cut with a rotating wheel. Radius
grinding allows for sharpening and creation of ball nose end mills and
indexing of straight flutes. Helical grinding allows for sharpening
and creation of relief and rake angles for spirals, end mills, hobs,
inserts, burrs and drills. Face mill grinding allows for sharpening
and creation to set elevation and depression angles. Both flat and
cylindrical grinding can be obtained with these types of SCHNEEBERGER
CNC grinders. Fluting is the process of removing large quantities of
material by creating a flat or spiral groove, this is by far the most
time consuming operation and can be expedited with a higher HP motor.
With the advancement of CNC software in the control, 3D simulations
can be created as a guide for how the finished product will look.
SCHNEEBERGER tool and cutter grinders are made to be customisable
offering many different models each designed to perform a specific job
requirement. This SCHNEEBERGER ARIES ENP 4 is just one of the models
produced by SCHNEEBERGER tool grinders for the CNC manufacturing
industry.
