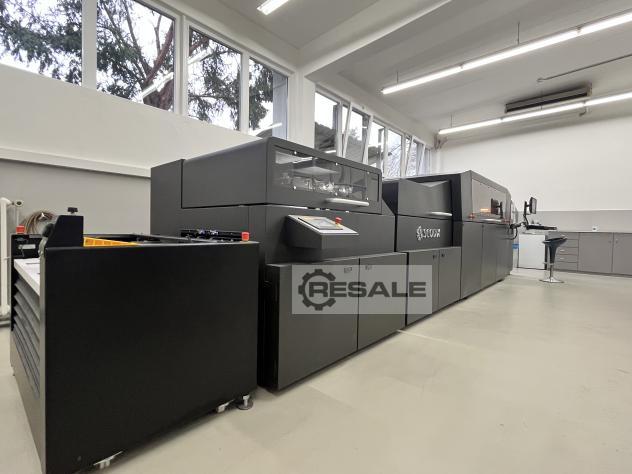

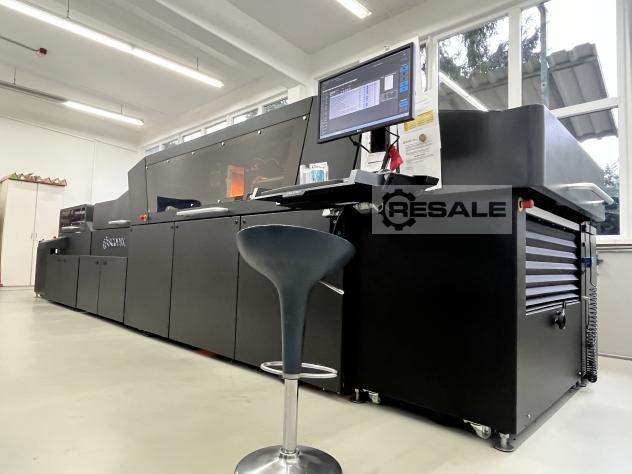

Scodix Ultra 202
Year 2019

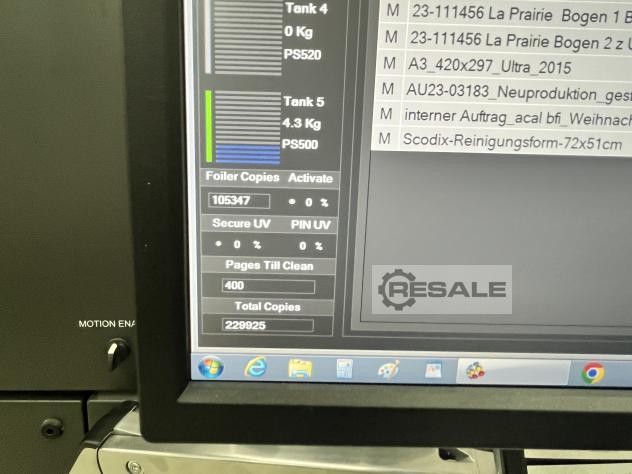

Counter 230.000 copies
Paper size Min: 29 x 42cm
Paper Size Max: 54x78cm
Printing size Max: 74x 50 cm

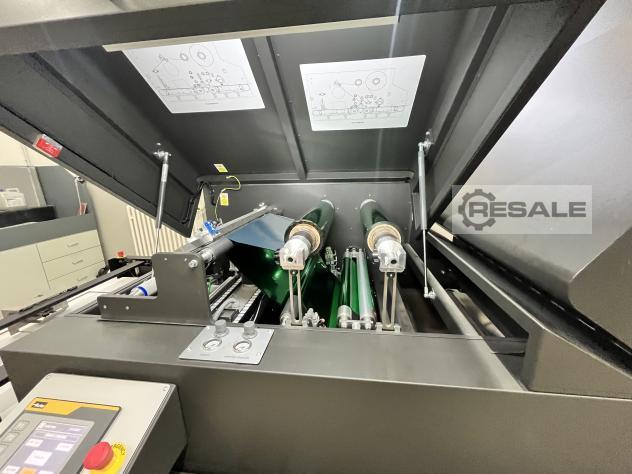

Foil technology
Digital in-line with Scodix PAS foil technology
Foil roll width
(min/max 50-500 mm
Foil roll size
Diameter:max 30 cm;
Length:max 2,000 m;
Core:77mm/3 in
Max number of simultaneous rolls
Up to 4 rolls
Polymer layer thickness
From 5 up to 250 microns
Substrate weight 135-675 gsm/6-30 points
Substrate thickness Up to 700 microns
Foil film type
Wide variety of industry standard hot/cold foil films
Substrates
Offset, Plastics, laminated and coated/uncoated substrates
Resolution
Up to 2540 x 450 DPI
Variable Data Enhancement (VDE)
PDF, optimized PDF, barcode system (optional)
Scodix RSP™ Technology
4 CCD camera system, RSP™ (Rotate, Scale, Position) algorithm,
automatic positioning, ± 100 micron image to
image registration
Substrate loading sizes
Min – L297 x W420 mm
Max – L545 x W788 mm
Printing image sizes
Max – L748 x W504 mm
Polymer tank system
4 polymer tanks
Press dimensions (L x H x W)
7880 x 1790 x 1979 mm
Press weight (net)
5300 kg
