CNC Drehmaschinen SOMAB OPTIMAB 450

Drehdurchmesser:400 mm

Drehlänge:1100 mm

Drehzahl:4500 1/min

Machine-Details
Stock-No. 1105-03940
Type of machine Lathe - cycle-controled
Make SOMAB
Type OPTIMAB 450
Year of manufacture 2007
Type of control NC
Storage location HAGUENAU FRANCE
Country of origin France
Delivery time immediately
Freight basis EX STOCK

Technical details
turning diameter 400 mm
turning length 1100 mm
control SOMAB PL + S NUM 1060
turning dia. over face-slide 350 mm
turning diameter over cross slideways 320 mm
main drive motor 12 kW
spindle turning speed range 4500 U/min
spindle passage 73 mm
chucking diameter 250 mm
taper in tailstock MT 4
total power requirement 23 kW
weight of the machine ca. 5 t
Additional information
Machine in inclined bed execution
with NUM-SOMAB PL+S3 cycle control

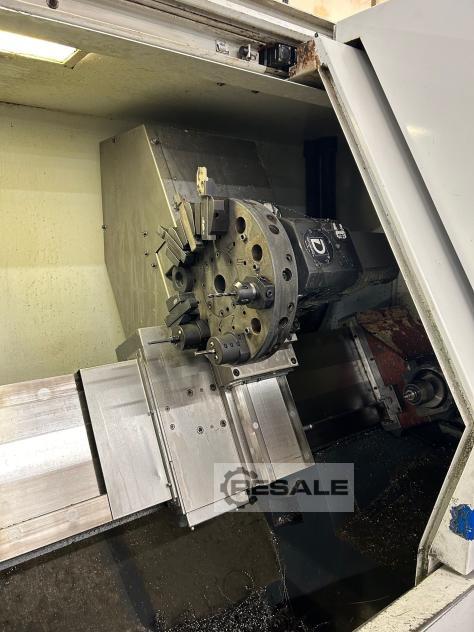

with 12 POSTES TURRET
