Manufacturer: Spinner
Model: PD-CNC 32
Year of Manufacture: 2012

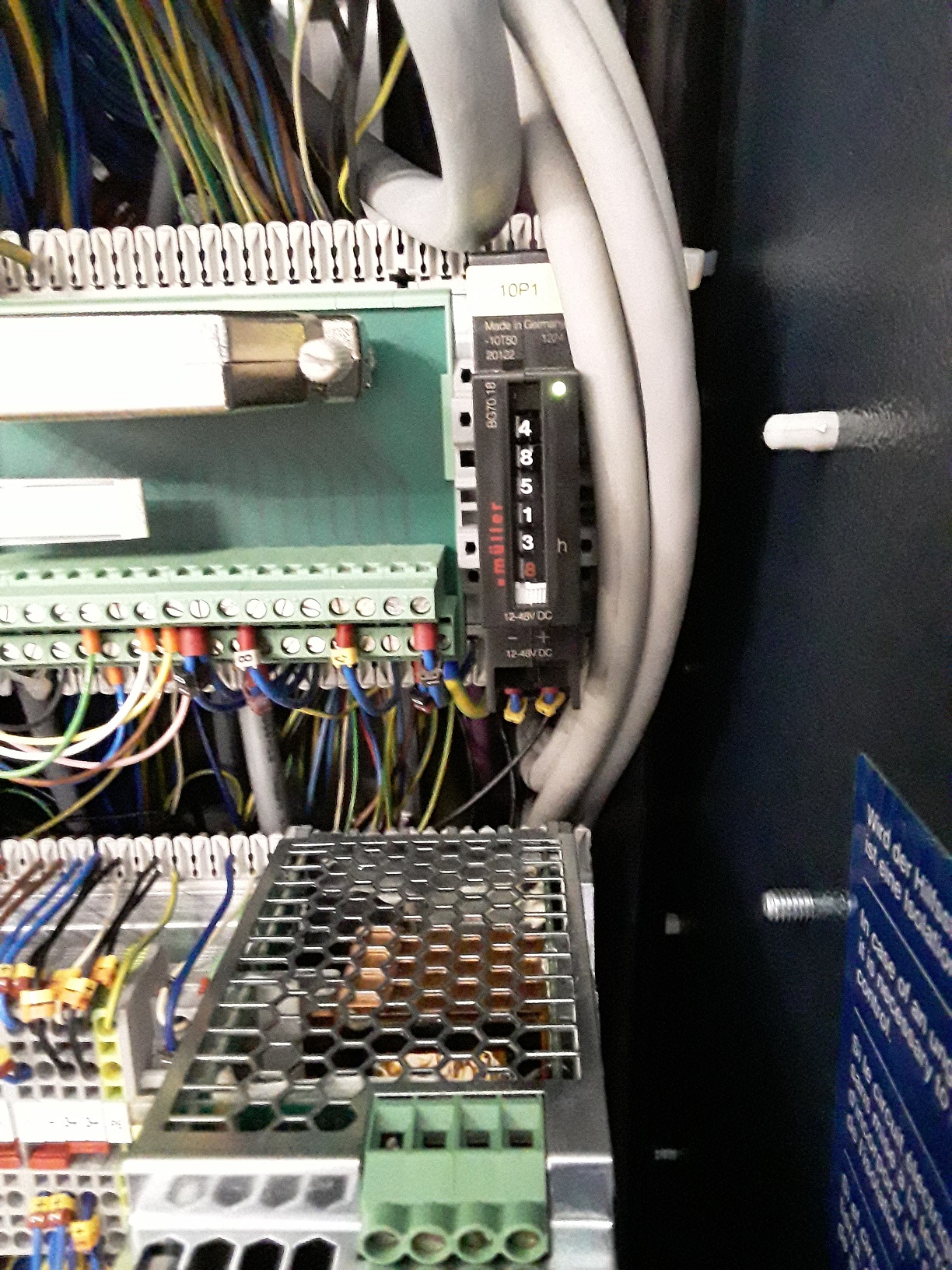

Operating hours: 48,500h
Equipped with SIEMENS – Control 840D, Powerline
Machine can be operated with coolant or oil!
WORK AREA
Travel in X - 400mm, Z - 400mm, Q1 - 400mm
MAIN SPINDLE
Max. rod passage DM 32 mm
Max. speed 0 - 8000 rpm
Max. torque 26 Nm
dead-collet chuck 164E
COUNTER SPINDLE
Max. speed 0 - 8000 rpm
Max. torque 23 Nm
draw-in collet chuck 364E

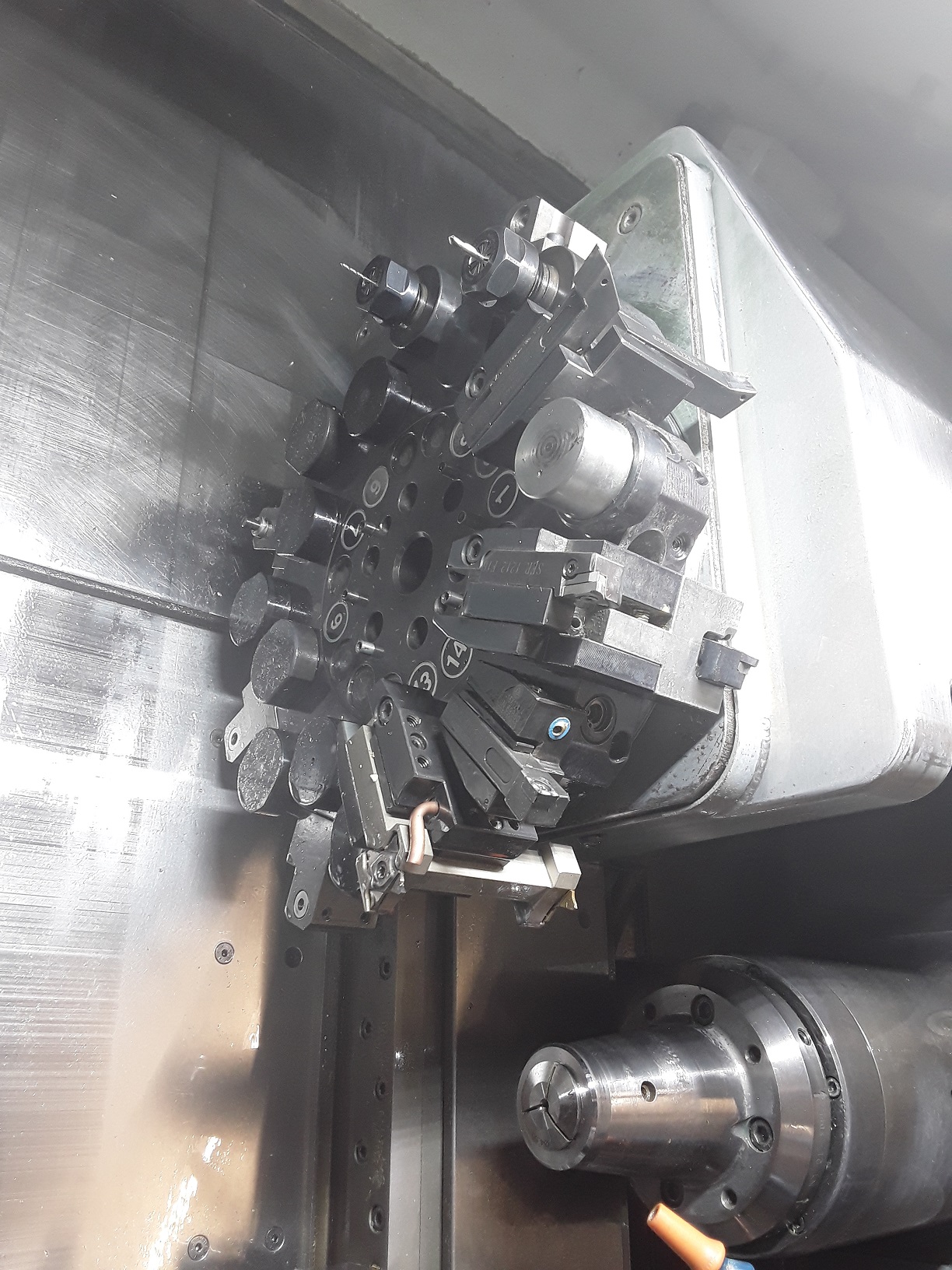

TOOL TURRET – VDI16
Barrufaldi with TOEM clutch
Number of tool positions 16
Driven Tools 8
Max. speed 0-6000 rpm
Max. torque 3.5 Nm
DIMENSIONS without chip conveyor and loading magazine
Dimensions (LxWxH) 2300 x 1200 x 1700 mm
machine weight 2300 kg

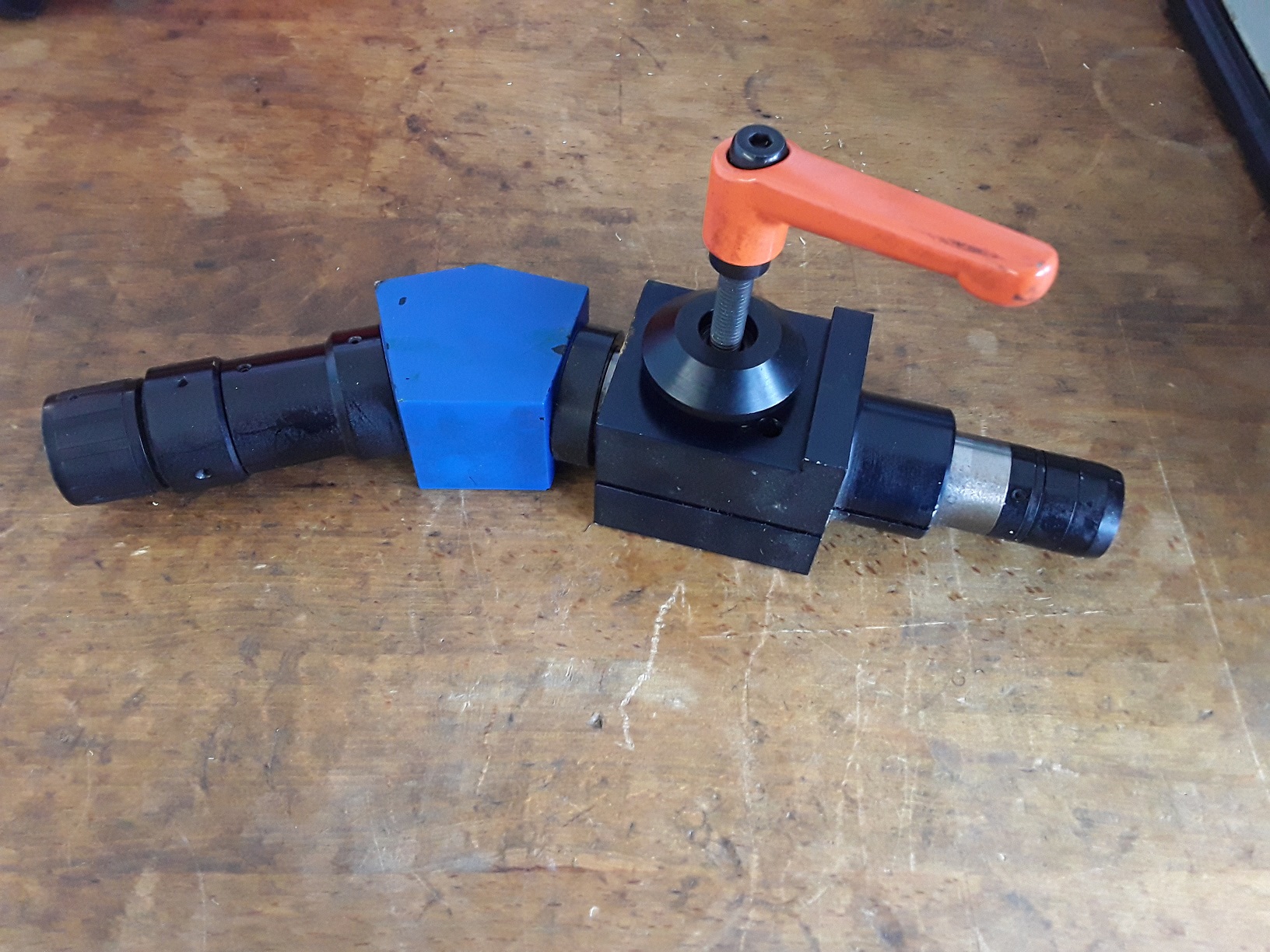

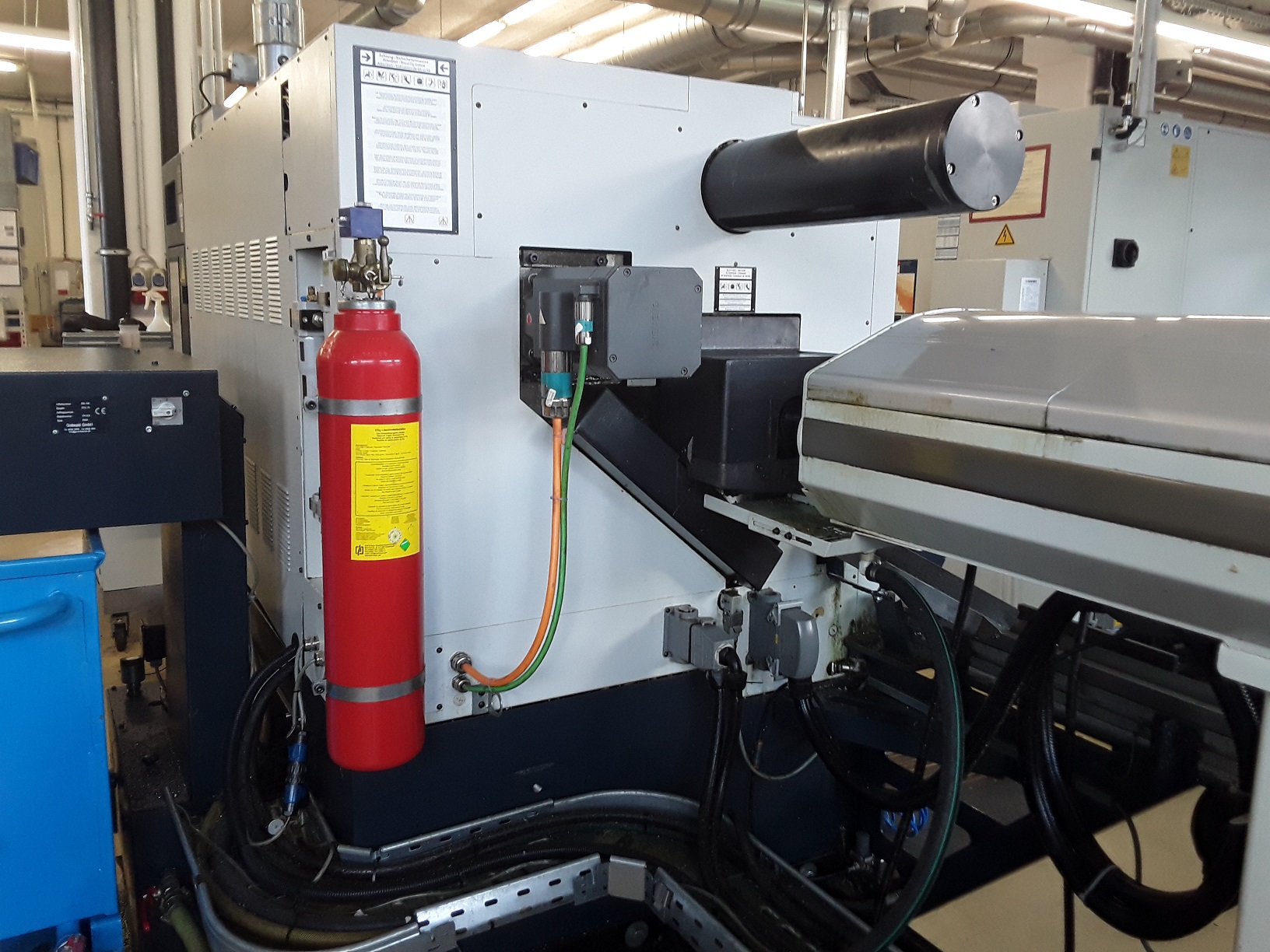

Including bar loader, belt filter system, chip conveyor, extensive
accessories
