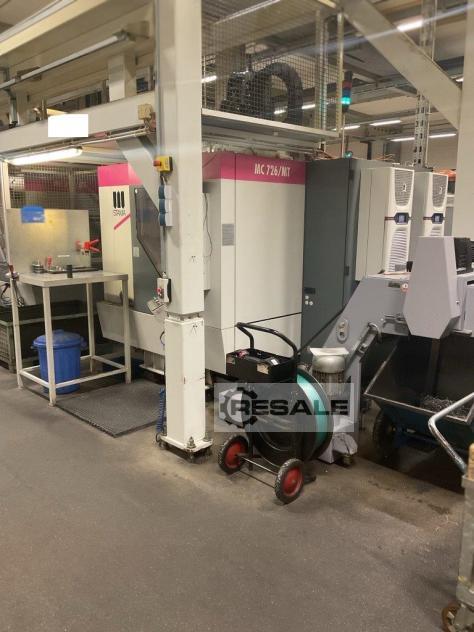

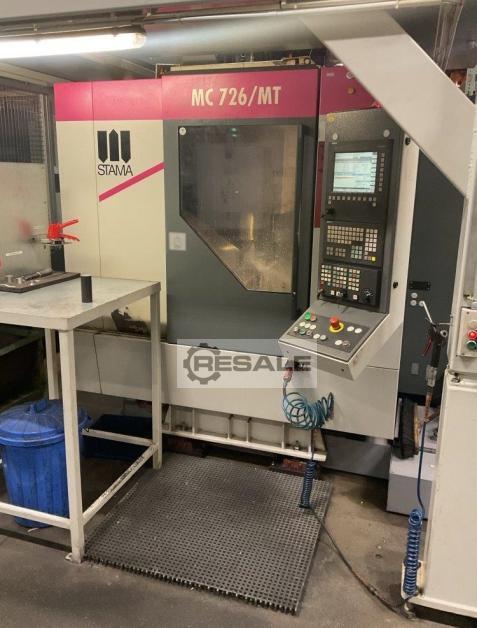

Vertikale CNC Bearbeitungszentren STAMA MC726/MT

x-Weg:500 mm

y-Weg:380 mm

z-Weg:360 mm

Vertical 5-Axis Machining Centre – Mill-/Turn Centre

Stama MC726/MT – Milling / Turning – from billet

Year 2008

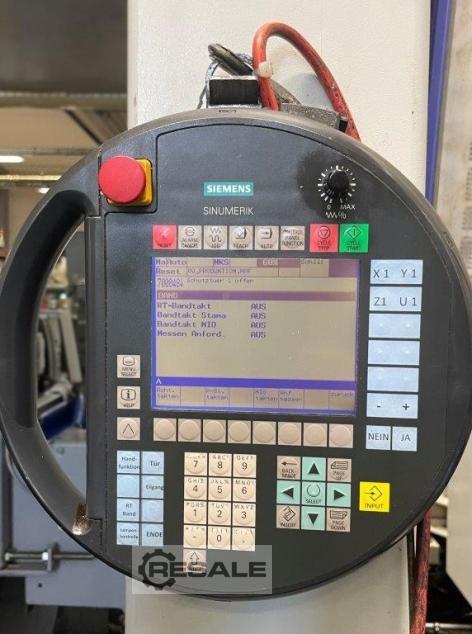

Siemens Sinumerik 840D sl CNC

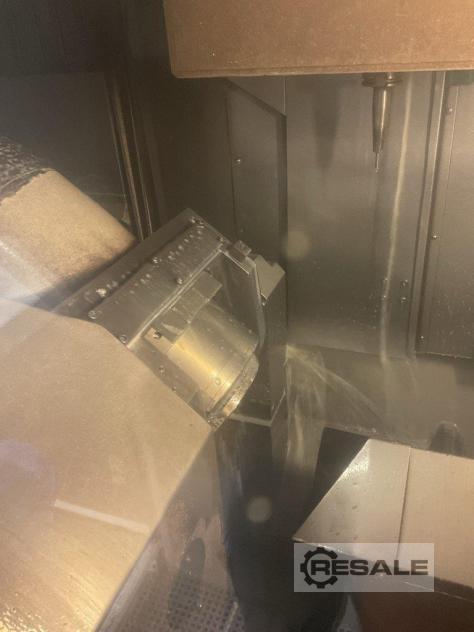

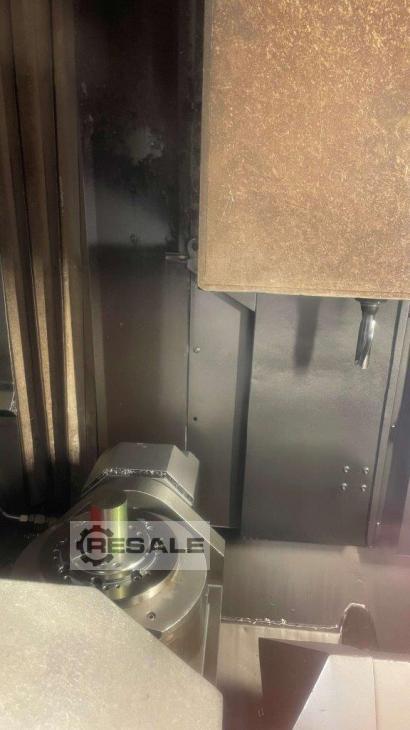

2-Axis NC Rotary / Tilting table with collet chuck

Clamping capacity 15 ~ 80 mm diameter

C-Axis 360°
A-Axis 120°
X 500 mm
Y 380 mm
Z 360 mm

42 station ATC

Turning spindle 20/50KW / 4000 rpm
Milling spindle 17/37 KW / 10500 rpm

2 x machines available as a machining cell or individual machines sale

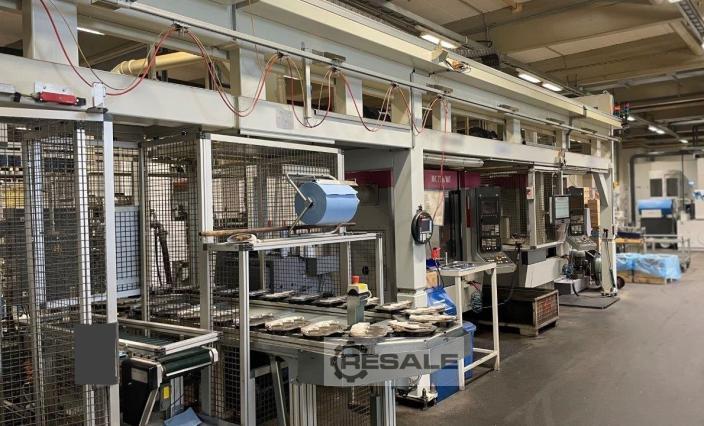

They are currently connected in a production line.
Both machines have their own chip conveyor, but they have only one coolant tank with different coolant pumps.
Under power in the factory.
Both machines are well maintained and in perfect condition.
Regular maintenance carried out by Stama up to 2021, since then only low utilization.

ALSO AVAILABLE AS SINGLE MACHINE !

Proposal reference MV-6363 / Proposal reference MV-6389

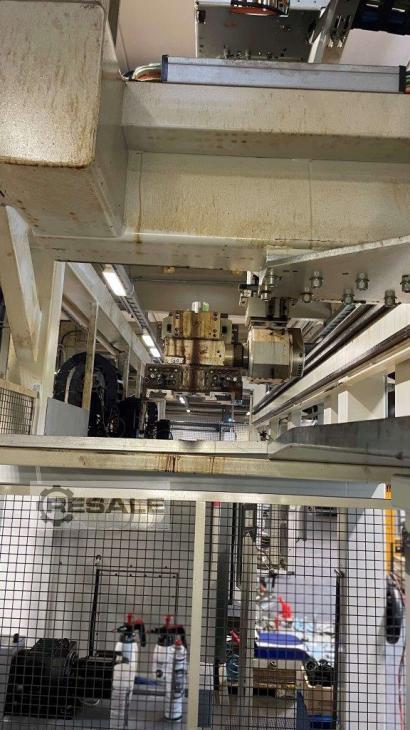

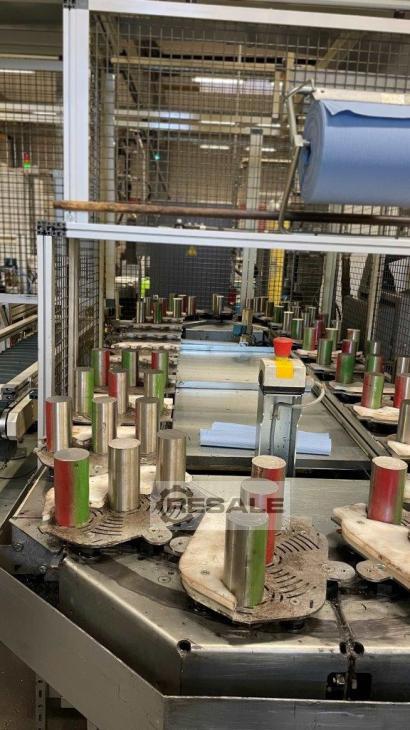

Equipped with a Promot Gantry loader and parts conveyor

Linear scales
Internal coolant through spindle 70 bar
Renishaw measuring probe
Signal lamp
Chip conveyor
KNOLL coolant unit

Verkäufer Angebot Nr. resale MV-6363 + MV-6389
