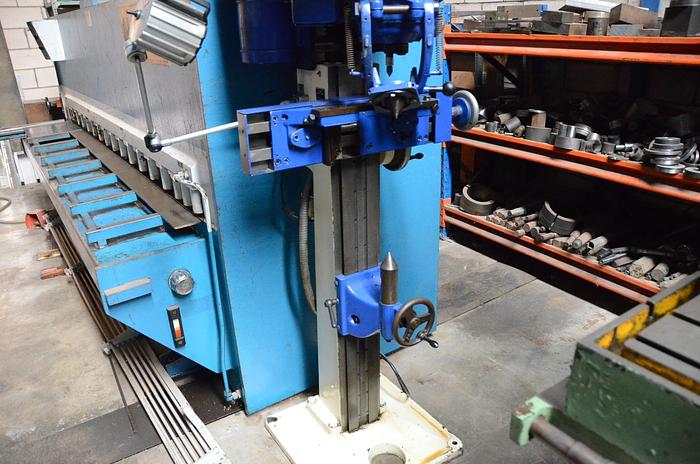

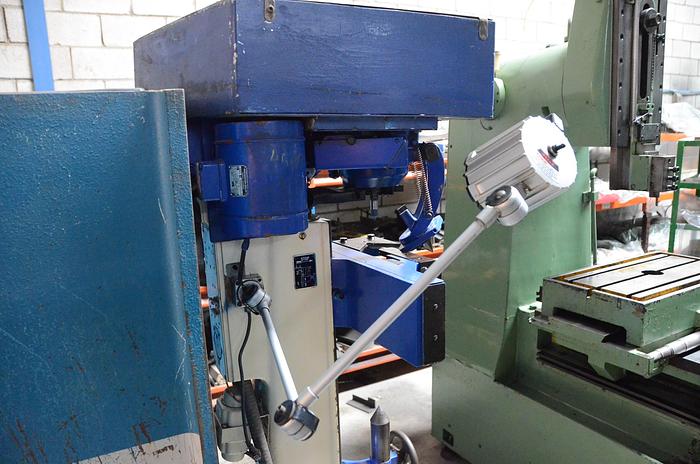

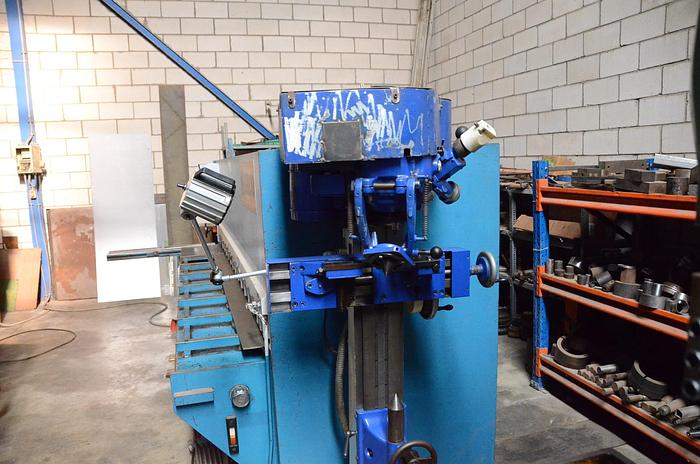

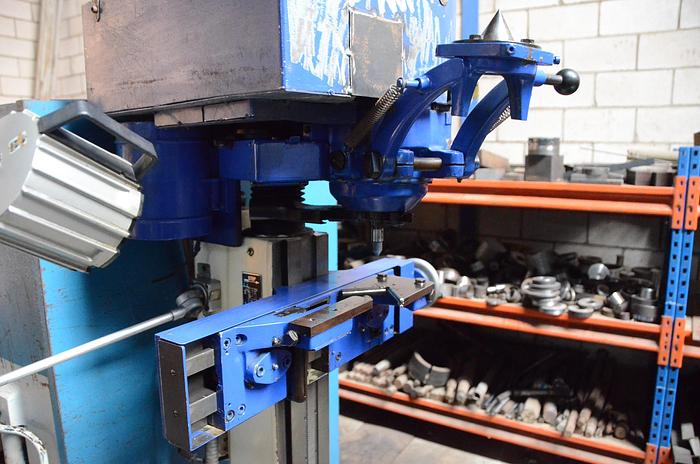

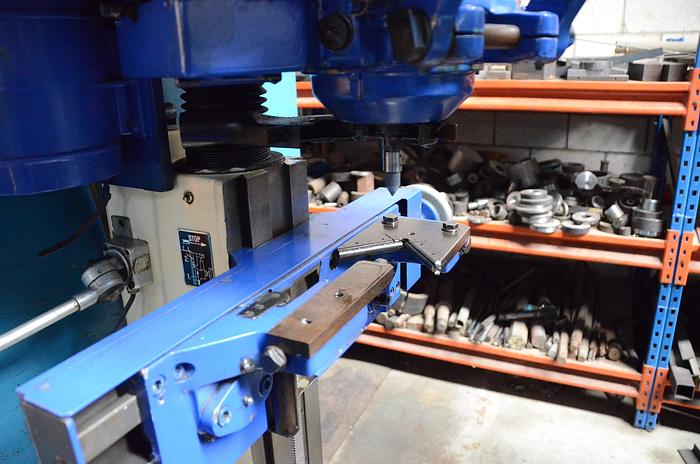

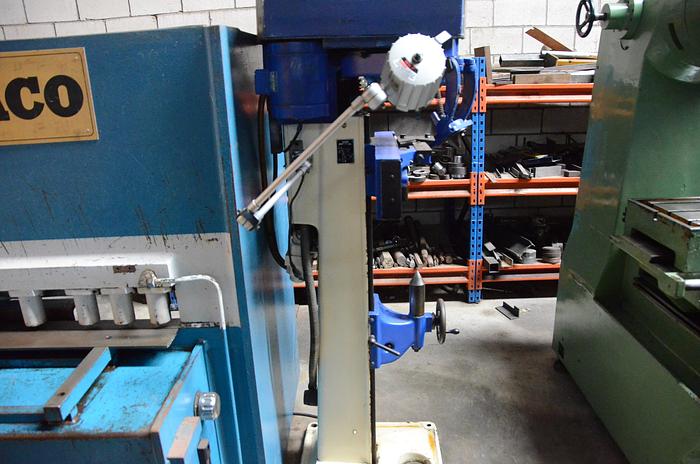

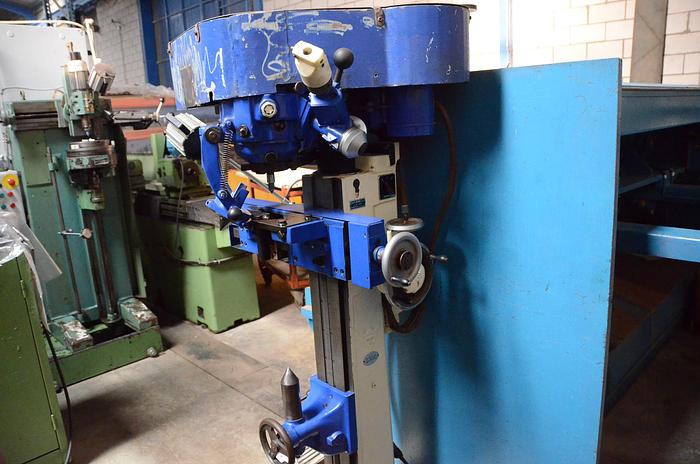

TECHNICA ZSM 5100

Maximum length of the piece: 1100 mm, Minimum length of the piece: 50 mm, Maximum diameter of the piece: 125 mm, Minimum diameter of the piece: 8 mm, Center height of tailstock above guide: 145 mm, Center height of tailstock above carriage: 65 mm, Centering hole taper angle: 60°, Larger diameter of centering hole cone: 50 mm, Diameter of smallest centering hole: 2 mm, Grinding spindle speeds: 45000 / 22 500 / 13 000 rpm, Hollow screw speed: 400 rpm, Stroke of the grinding wheel along the grinding surface: 0.75 - 5 mm, Diameter of grinding wheels: 15, 27, 48 mm, Weight approx.: 460 kg, Dimensions (length x width x height): 850 x 750 x 1850 mm
Verkäufer Angebot Nr. resale 4560
