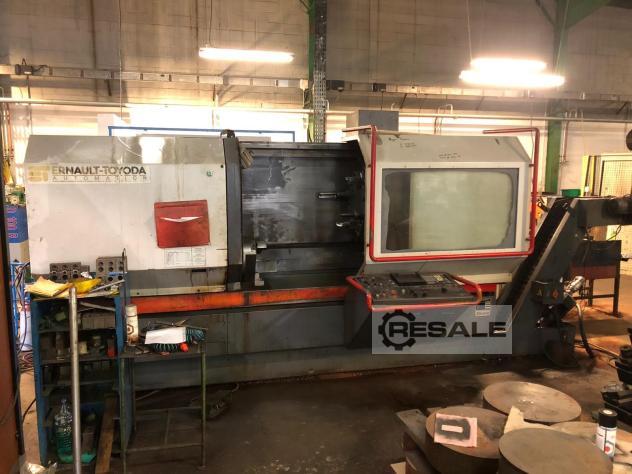

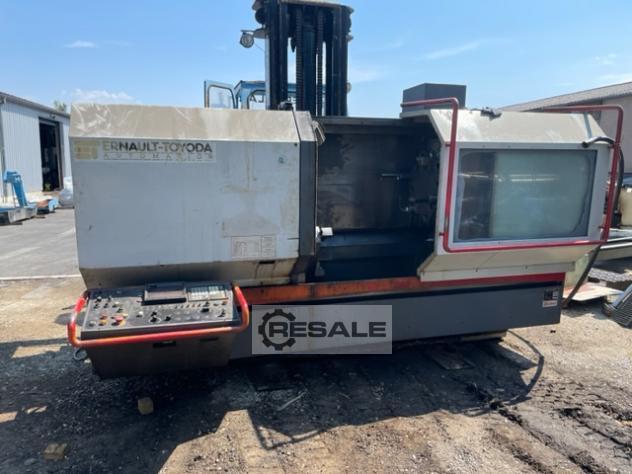

CNC Drehmaschinen TOYODA ERNAULT HES 52

Machine-Details
Stock-No. 1105-03882
Type of machine CNC Lathe - Inclined Bed Type
Make ERNAULT TOYODA
Type HES 52

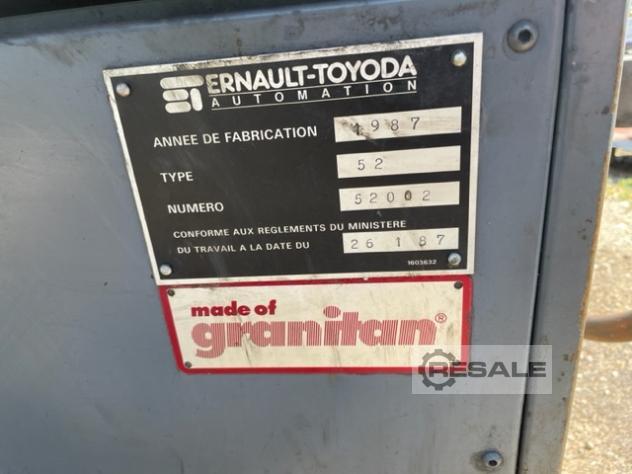

Year of manufacture 1987
Type of control CNC
Storage location FRANKREICH
Country of origin france
Delivery time immediately
Freight basis EX WORK

Technical details
turning diameter 650 mm
turning length 1100 mm
control FANUC 10 T
swing over bed 650 mm
spindle bore 80 mm
spindle turning speed range 7 - 4000 U/min
transmission ratio 3
rapid traverse 12 m/min
main drive 37 kW
total power requirement 47 kW
weight of the machine ca. 12 t
dimensions of the machine ca. 5 x 2.4 x 2. m
Additional information

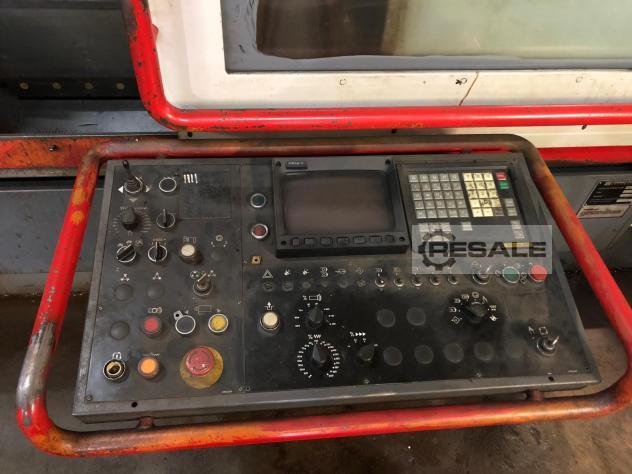

2-axes CNC-control FANUC 10 T
1 x 12-station turret VDI 50
programmable tailstock

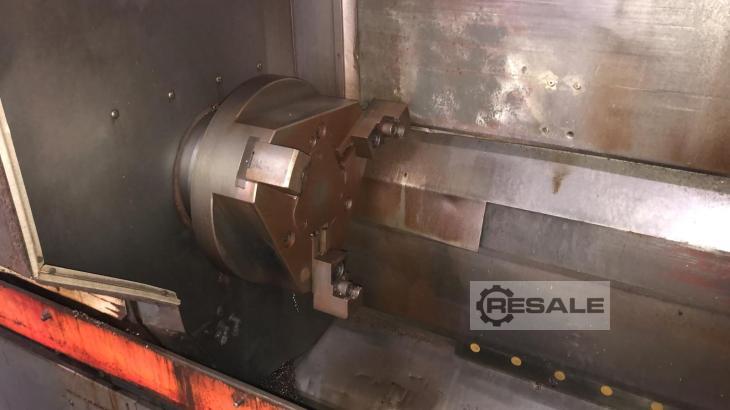

3-jaw power chuck diameter 450 mm
swarf conveyor
