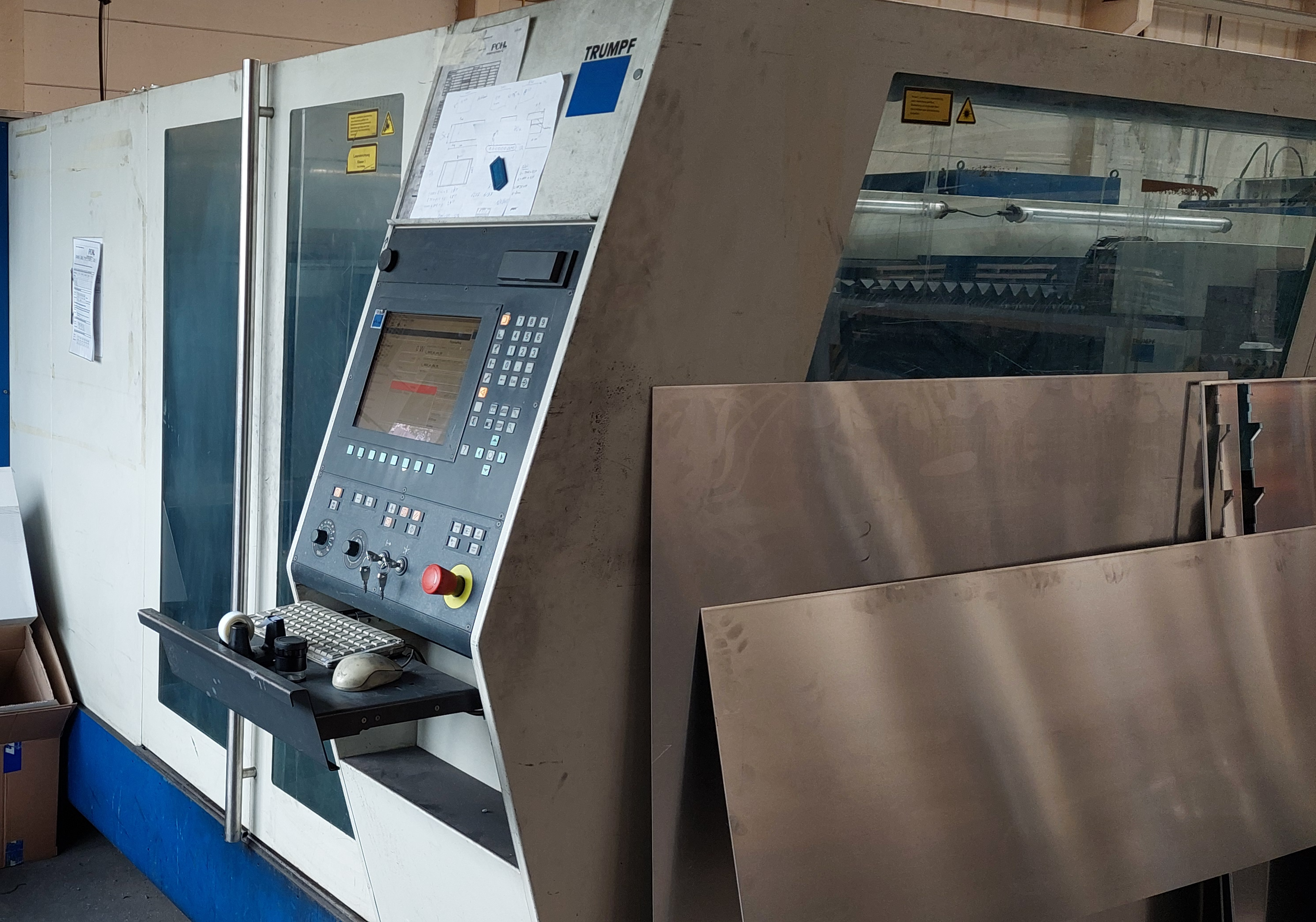

Laserschneider TRUMPF Trulaser 5060

Manufacturer: Trumpf

Model: Trulaser 5060

Type of Machine: CO₂ Laser Cutting Machine

Technical Specifications:

Working Area:

- X-axis: 6000 mm
- Y-axis: 2000 mm
- Z-axis: 115 mm

Max. Workpiece Weight: 2800 kg

Speed:

- Axis-parallel: 200 m/min
- Simultaneous (X and Y): approx. 300 m/min

Accuracy:

- Smallest programmable increment: 0.001 mm
- Position deviation: ±0.1 mm
- Average position scatter: ±0.03 mm

CNC Control:

- Model: Siemens Sinumerik 840D
- RAM: 64 MB
- Monitor: 12" TFT
- Program memory: 500 MB for NC programs
- Disk Drive: 3.5"
- OS Platform: Windows NT

Find more here - /

Contact us at -
Verkäufer Angebot Nr. resale 7386637
