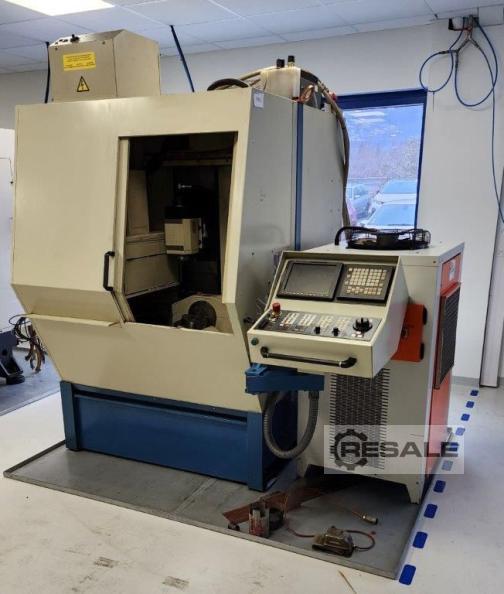

CNC Bearbeitungszentren WILLEMIN 408 S

Machine-Details
Stock-No. 1105-03837
Type of machine Machining Center - Vertical
Make WILLEMIN MACODEL
Type 408 S
Year of manufacture 2000
Type of control CNC
Storage location HAGUENAU FRANCE
Country of origin SUISSE
Delivery time immediately
Freight basis ex Site

Technical details
x-travel 250 mm
y-travel 200 mm
z-travel 300 mm
control FANUC 16 I MB
A-Axis -30° - +100°
C-Axis 360°
max. table load 200 kg
rapid traverse 20000 m/min
turning speeds 35 - 30.000 U/min
tool taper HSK E40
power capacity - milling spindle 15/10 kW
tool piece magazine with 92pos.
max. tool diameter 80 mm
max. tool-dia with free toolbox 95 mm
max. tool length 200 mm
max. tool weight 8 kg
tool changing time 3,6 sec
total power requirement 35 kW
weight of the machine ca. 2.5 t
dimensions of the machine ca. 2,0 x 2,1 x 2,65 m
Accessories
Chip conveyor
Coolantsystem
elektr. hand wheel
coolant pistol
interface for high pressure coolant unit
high pressure coolant 15 bar
Additional information
5 AXIS Machining Center - UNIVERSAL
CONTROL FANUC 16 I M

Machine as 20000 rpm SPINDEL
Verkäufer Angebot Nr. resale 161085778
