Vielen Dank für Ihr Interesse an unserer Kaugummi Extruder Anlage,
die wir Ihnen wie folgt anbieten: Many thanks for your interest on our
new chewing gum extruder plant, please find follow our offer:
AUTOMATIC EXTRUDING; ROLLING AND SCORING MACHINE 7´´ /
COMPLETE LINE For production of Chewing gum Sticks and Chiclets
Manufacturer : WLS
Type : Kaugummi Extrudier-, Walz- und Schneideanlage
gum extruder, rolling and cutting system
Product : Chewing gum Sticks and Chiclets
Size(working width) : 7´´ / 177mm other dimensions are possible on
demand
Type : WLS RAS 7” with manual take-off
Capacity : Stick Gum approx. 200 – 250 kg/h / Chiclets approx.250
– 350 kg/h
Number of rolling stations : 4
Number of cutting stations : 2
Electrical : 400V 3 ph

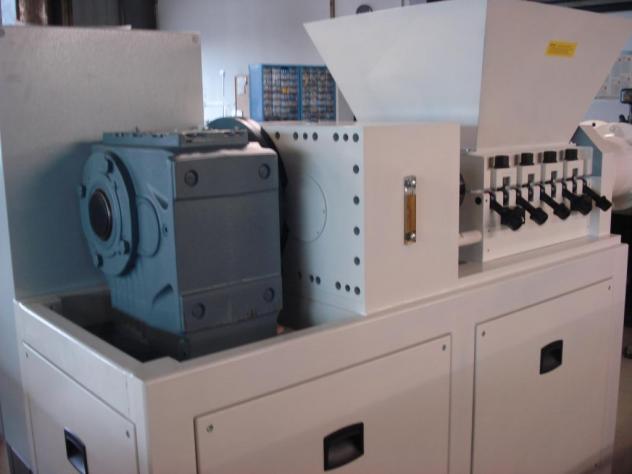

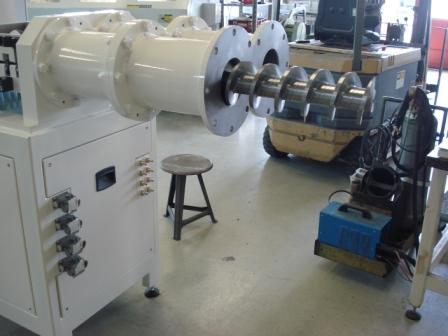

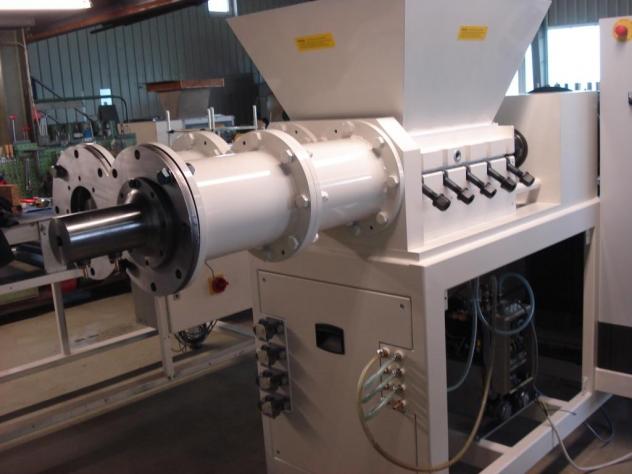

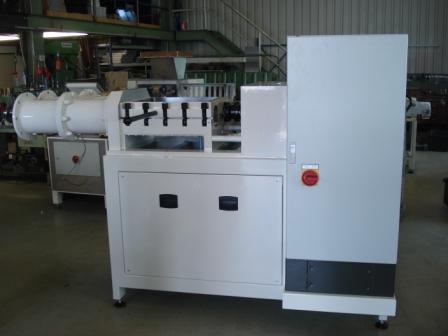

7” ROLLING AND SCORING MACHINE incl. EXTRUDER
Conveyor belt is covered with powdering material by means of sugar
device bevore it takes over the extruded chewing gum sheet. The gum
sheet is feed over a special table and a second sugar device which
powders the upper surface of sheet.
A metal detector can be installed above the conveyor belt witch stops
the line as soon as metal particles are detected.
The following rolling machine is equipped with one set of knurled
rollers and three sets of hardened smooth sizing rollers. The gap
between the rollers is shown on a digital read out. Between the first
and the second smooth roller set a top and a bottom brushing device is
til table for inserting the gum sheet. The brushes are encased so that
an optimum dust absorbing is guaranteed. A dust absorbing unit can be
connected. For cutting rollers are mounted one cone and are easily
exchangeable. The excess powder is taken over by a conveyor belt
arranged underneath the rollers and transport it to a collecting bin.
A cross conveyor belt transport the gum scrap to the rear of the
machine. Be means of return conveyor belt it feed back to the
extruder.
MANUAL TAKE OFF AND PILLING DEVICE :
After the last set of cutting rollers a pull-off conveyor belt is
fitted for the separating the cut sheets. These are now fed the trays
which are placed at the end of the machine by means of guiding roll.
As soon as the desired number of layers is reached the filled tray is
replaced through a new one and the sheets are pilled again
Machine delivered in normal Steel with one set of cutting rollers for
chewing gum sticks or dragees
Execution / Price:
Netto zzgl. MwSt., ab Standort Deutschland; unverpackt und ohne
sonstige Kosten
Net (excluded Vat), EXW germany, packaging and all other costs
EXCLUDED
1 x mild steel” ROLLING and SCORING MACHINE type
7” Euro 299.000,00
1 x METAL DEDECTOR 7” Euro 14.550,00
1 x DUST _ ABSORBING unit type 7” Euro 21.550,00
TOTAL PRICE EX WORKS ROHRBACH Euro 335.100,00
Delivery Time : approx. 4 months after receipt of down payment and
Clarification of all
technical and economical questions
Delivery terms: ex works Rohrbach, packing not included all other
costs excluded
Payment terms: 50% down payment with the order on our banc account
50% balance payment on our banc account
Deutsches Produkt, keine Billigware aus Asien, keine Zukaufteile aus
Asien, alles„Made in Germany
Wir bieten diese Maschine mit einer Gewährleistung von 6 Monaten im
Einschichtbetrieb zum Verkauf an.
We offer this machine with Warranty 6 months at 8hours working
everyday, (Incoterms EXW), without packaging
