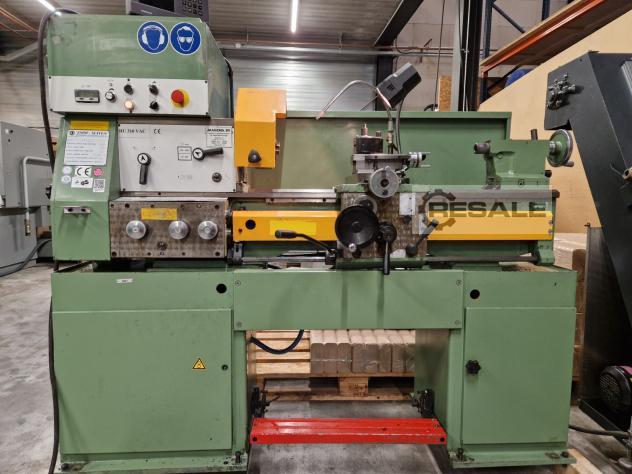

Drehdurchmesser:310 mm
Drehlänge:750 mm
Umlaufdurchmesser über Bettschlitten:175 mm
Turning length 750 mm
turning diameter 310 mm
turning diameter over slide rest 175 mm
spindle bore 32,0 mm
tailstock quill taper MT 3 MK
turning speeds 85 - 2200 U/min
bed width 200 mm
total power requirement 2,2 kW
weight of the machine ca. 710 kg
range L-W-H 1884 x 717 x 1262 mm
Furnishing:
- Spindle speed continuously adjustable in 2x switching stages

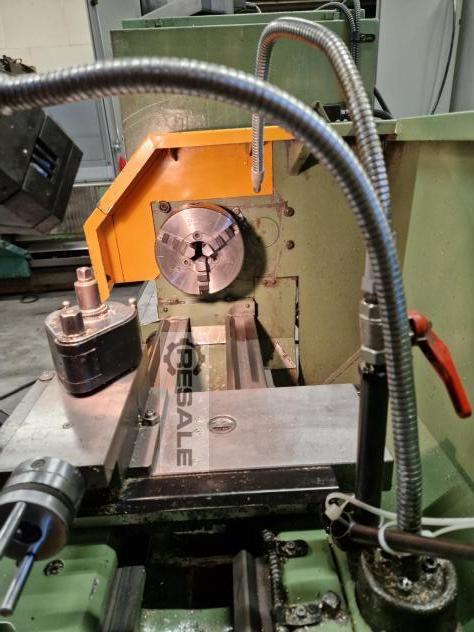

- Rohm 3-jaw lathe chuck Ø 160 mm, with spare jaws + chuck key

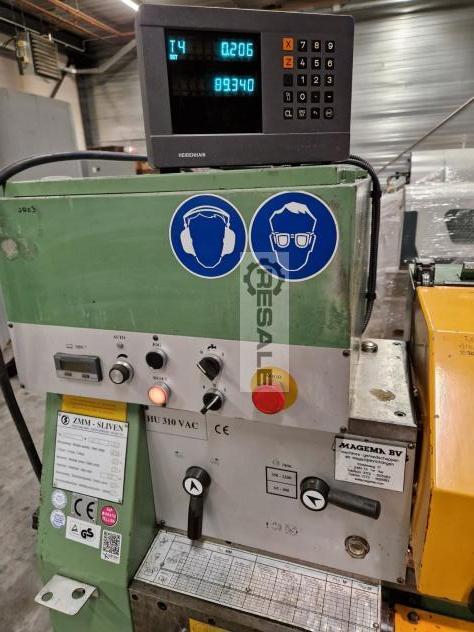

- Heidenhain digital display, front left
- MULTIFIX steel holder with inserts
- Movable tailstock

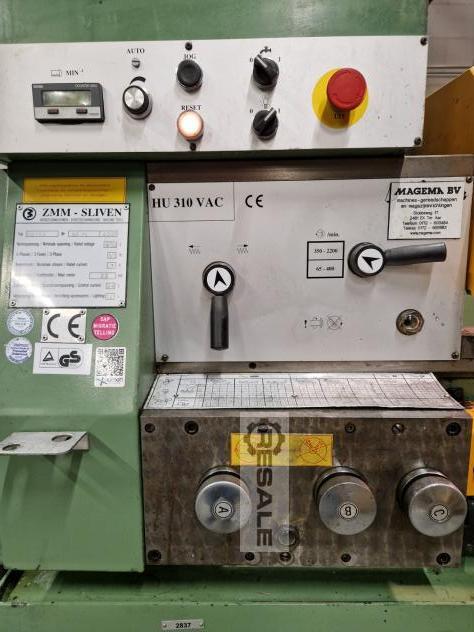

- digital speed display
- Change gears
- Foot/spindle brake
all technical data:
- Turning diameter over bed 310 mm
- Distance between centers 750 mm
- Spindle bore 32 mm
- Turning diameter over cross slide 175 mm
- bed width 200 mm
- Spindle mount / DIN55027 5
- Spindle taper 4.5 M
- Spindle speed infinitely variable in switching stages 2
- Spindle speed stepless 85-405; 470-2200 rpm
- Number of feeds 48
- Metric thread range 0.1 - 28 mm
- Thread module range 0.1 - 1.75
- Thread DP range 4 - 70
- Adjustment range cross slide 150 mm
- Adjustment range top slide 95 mm
- Tailstock quill diameter 40 mm
- Tailstock recording 3 MK
- Tailstock quill travel 100 mm
- Motor power 2.2 kW
- Weight 710 kg
Verkäufer Angebot Nr. resale 166565194
Niederlande
